Asus rog rampage v extreme/u3.1 [69/230] Cpu heatsink and fan assembly installation

ASUS RAMPAGE V EXTREME

2-5

Chapter 2

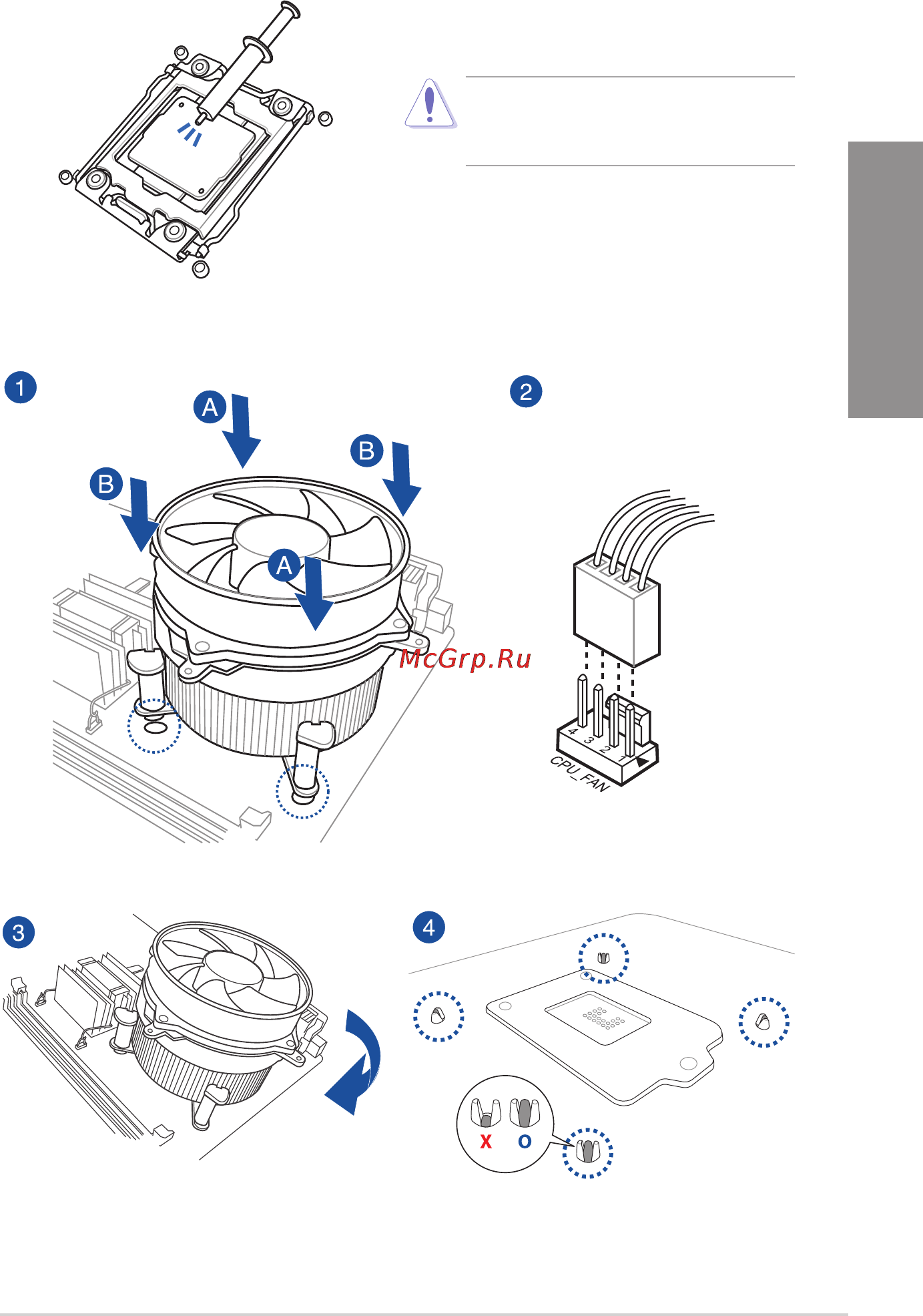

2.1.3 CPU heatsink and fan assembly installation

Apply the thermal interface material to the

CPU heatsink and CPU before you install

the heatsink and fan, if necessary.

Installing the CPU heatsink and fan assembly
