Asus rog rampage v extreme/u3.1 [42/230] Chapter 1

1-24

Chapter 1: Product introduction

Chapter 1

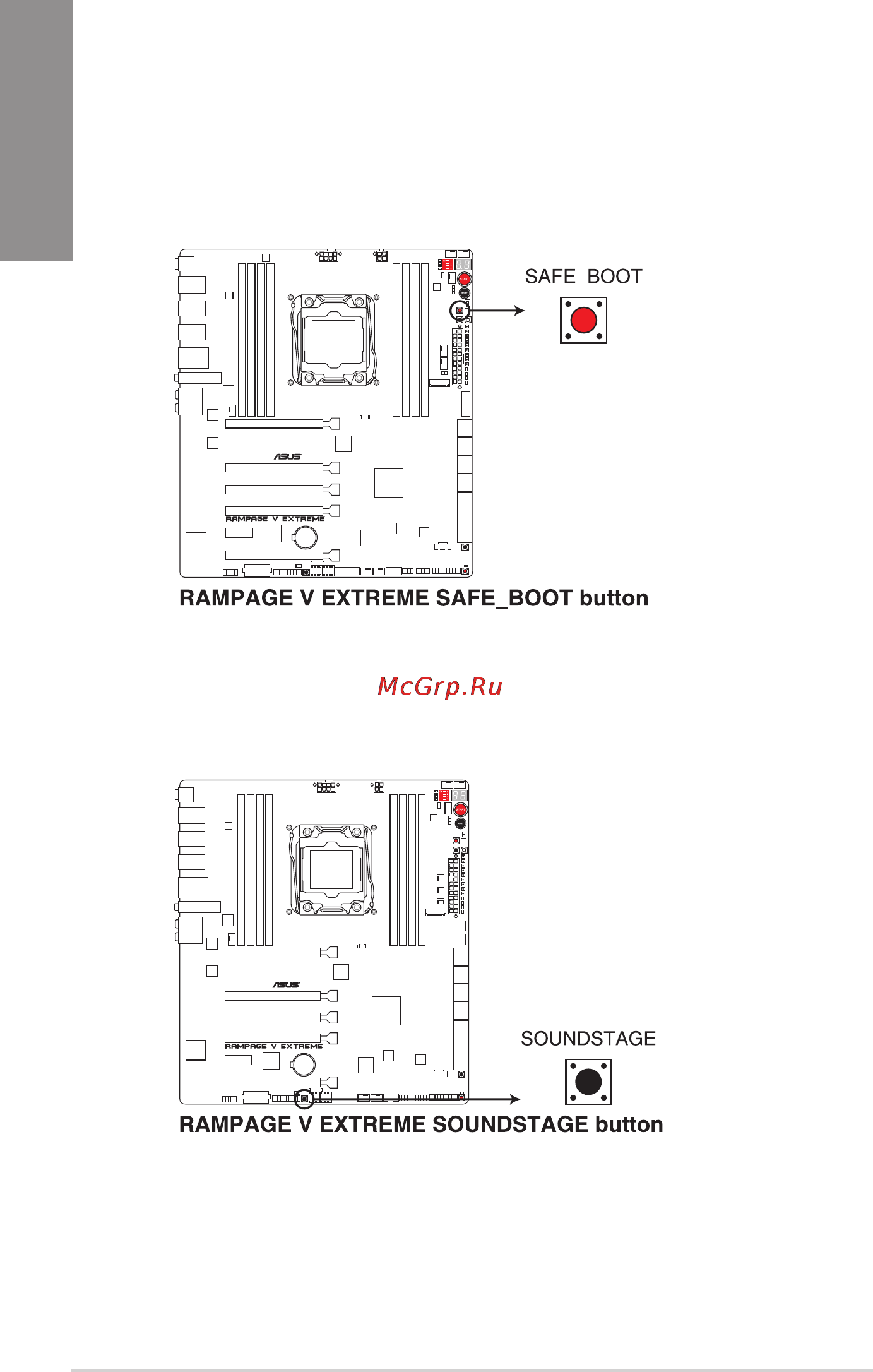

6. Safe Boot button (SAFE_BOOT)

The Safe Boot button can be pressed anytime to force the system to reboot into the BIOS

safe mode. This button temporarily applies safe settings to the BIOS while retaining any

overclocked settings allowing you to modify the settings causing boot failure. Use this

button when overclocking or tweaking the settings of your system.

7. SOUNDSTAGE button (SOUNDSTAGE)

Press this button to activate the Sonic SoundStage feature.
