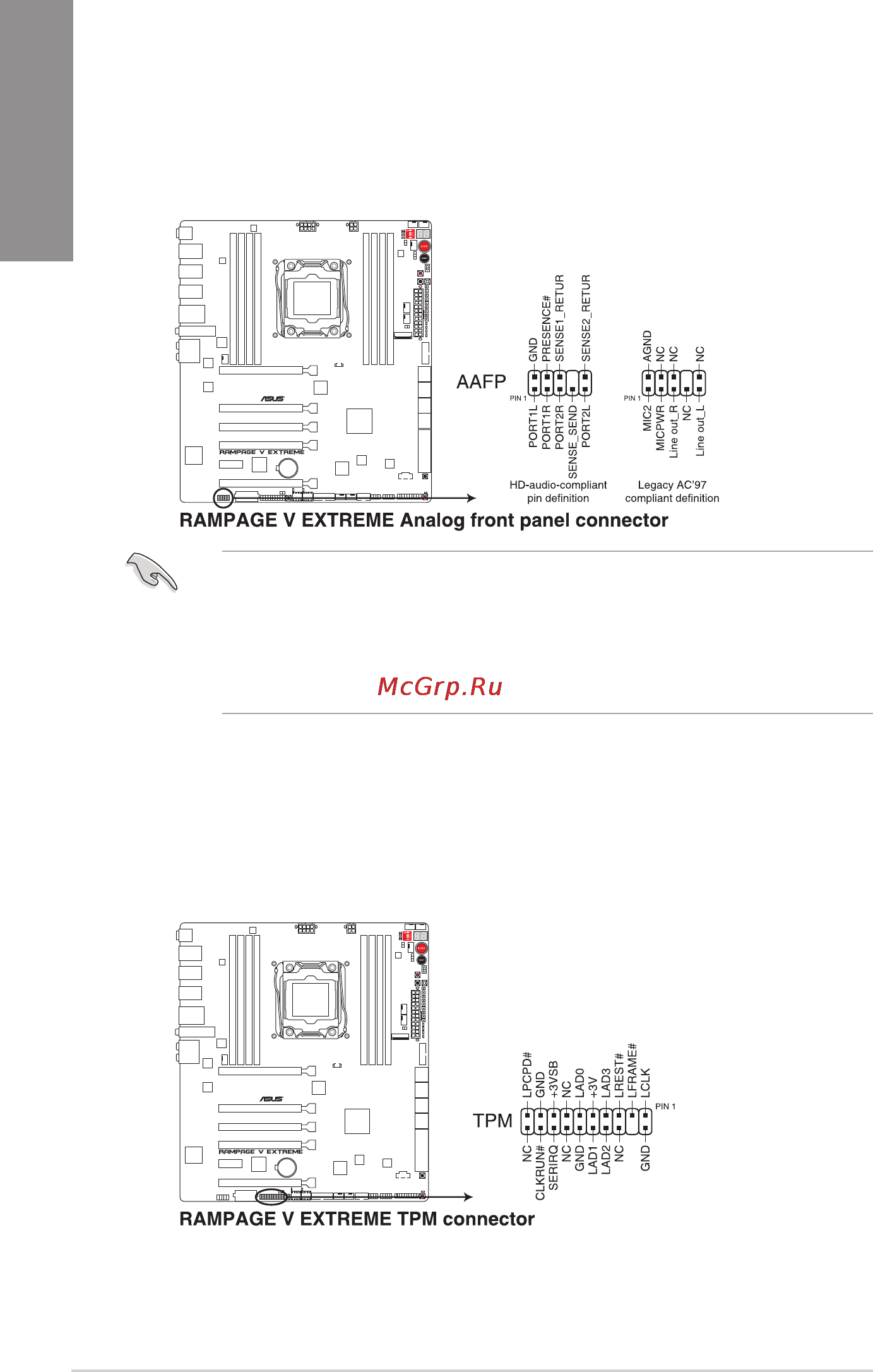

8. Front panel audio connector (10-1 pin AAFP)

This connector is for a chassis-mounted front panel audio I/O module that supports either

HD Audio or legacy AC`97 audio standard. Connect one end of the front panel audio I/O

module cable to this connector.

• We recommend that you connect a high-denition front panel audio module to this

connector to take advantage of the motherboard’s high-denition audio capability.

• If you want to connect a high-denition front panel audio module to this connector, set

the Front Panel Type item in the BIOS setup to [HD]; if you want to connect an AC'97

front panel audio module to this connector, set the item to [AC97]. By default, this

connector is set to [HD].

9. TPM connector (20-1 pin TPM)

This connector supports a Trusted Platform Module (TPM) system, which securely

store keys, digital certicates, passwords and data. A TPM system also helps enhance

the network security, protects digital identities, and ensures platform integrity.
