Chapter 4: Software support
Chapter 4
Using TPU
CPU Frequency
• SettheCPURatioSettingiteminBIOSto[Auto]beforeusingtheCPUFrequencyin
TPU.RefertotheBIOSchapterofyourmotherboard’suserguidefordetails.
• TheCPUFrequencybarsshowthestatusoftheCPUcores,whichvarywithyour
CPUmodel.
Turbo Processing Unit (TPU)
TPUallowsyoutomanuallyadjusttheCPUfrequency,CPUcache,corefrequencies,DRAM
frequency,andrelatedvoltagesforenhancedsystemstabilityandaperformanceboost.
RefertotheCPUdocumentationbeforeadjustingCPUvoltagesettings.Settingahigh
voltagemaydamagetheCPUpermanentlyandsettingalowvoltagemayleadtoan
unstablesystem.
Forsystemstability,theTPUsettingsarenotsavedintheBIOSandarenotloadedduring
systembootup.SaveyouroverclockingsettingsasaTPUproleandmanuallyloadthis
proleaftersystembootup.

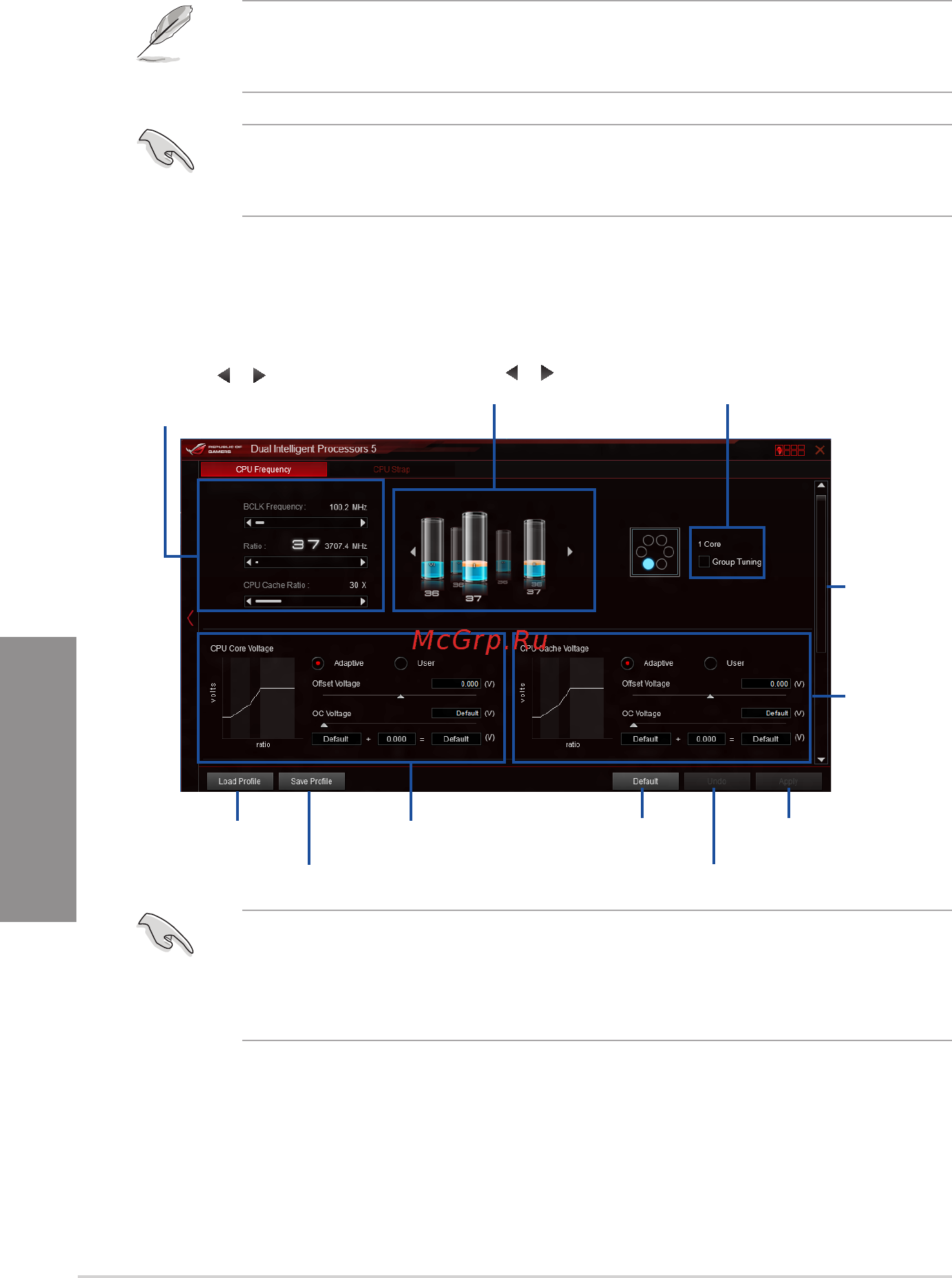

Click or tap to undo the adjustments
Tick to enable
Group Tuning
Click or tap or or move the sliders
to adjust the BCLK Frequency, Ratio,
and CPU Cache Ratio
Click or tap or to select the
number of cores to adjust
Click or tap to save the adjustment into a profile
Click or tap to load
the saved profile
Click or tap to apply the
adjustments
Click or tap to load
the default values
Scroll down to
view other items
CPU Cache Voltage
adjustments
CPU Core Voltage
adjustments
