Asus rog rampage v extreme/u3.1 [41/230] Chapter 1

ASUS RAMPAGE V EXTREME

1-23

Chapter 1

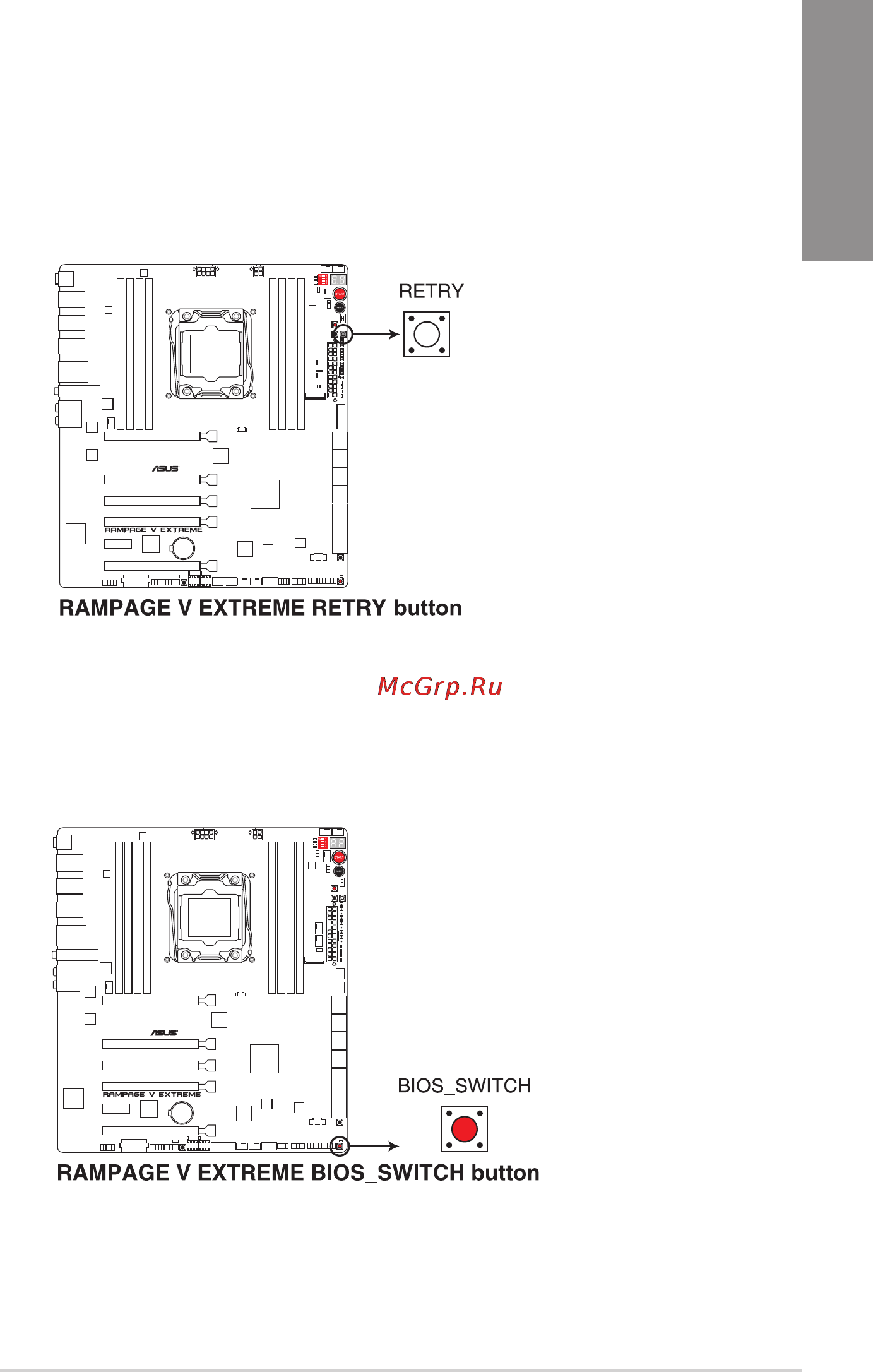

4. ReTry button (RETRY)

The ReTry button is specially designed for overclockers and is most useful during the

booting process where the Reset button is rendered useless. When pressed, it forces

the system to reboot while retaining the same settings to be retried in quick succession

to achieve a successful POST.

5. BIOS Switch button (BIOS_SWITCH)

The motherboard comes with two BIOS. Press the BIOS button to switch BIOS and

load different BIOS settings. The nearby BIOS LEDs indicate the currently selected

BIOS.
