ASUS RAMPAGE V EXTREME
4-51
Chapter 4
Click or tap to begin
the speed test

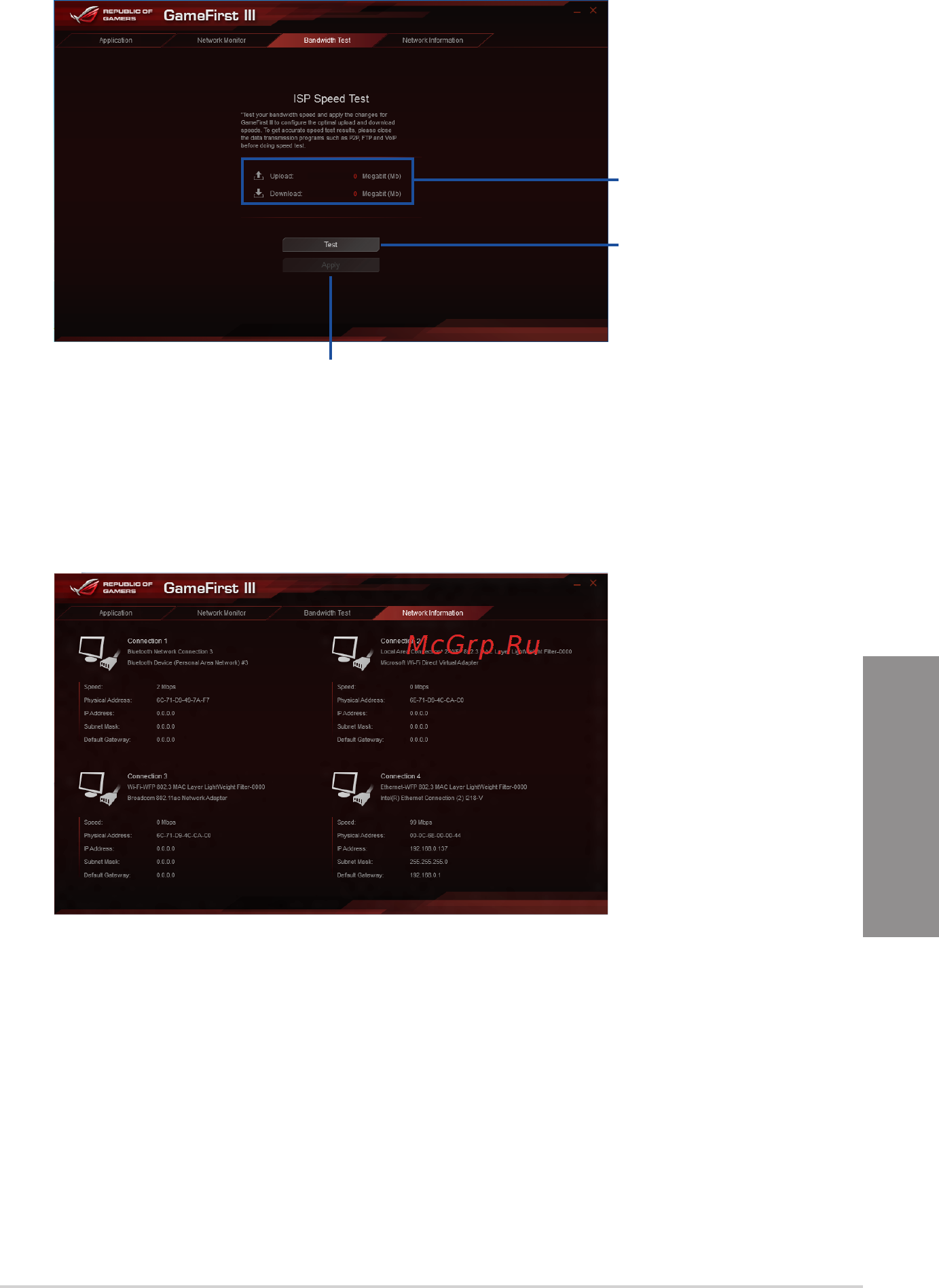

Bandwidth Test
YoucanusethisfeaturetotesttheInternetServiceProvider(ISP)speedormanuallykeyin
yourISP’suploading/downloadingspeedandapplythespeedifneeded.
Key in the upload/
download speed
Click or tap to apply the speed after manually keying in the
desired speed or after you performing the speed test
Using the Network Information
Displaysinformationaboutthephysicalnetworkcardsuchasspeed,physicaladdress,IP
address,subnetmask,anddefaultgateway.
