Chapter 4: Software support
Chapter 4

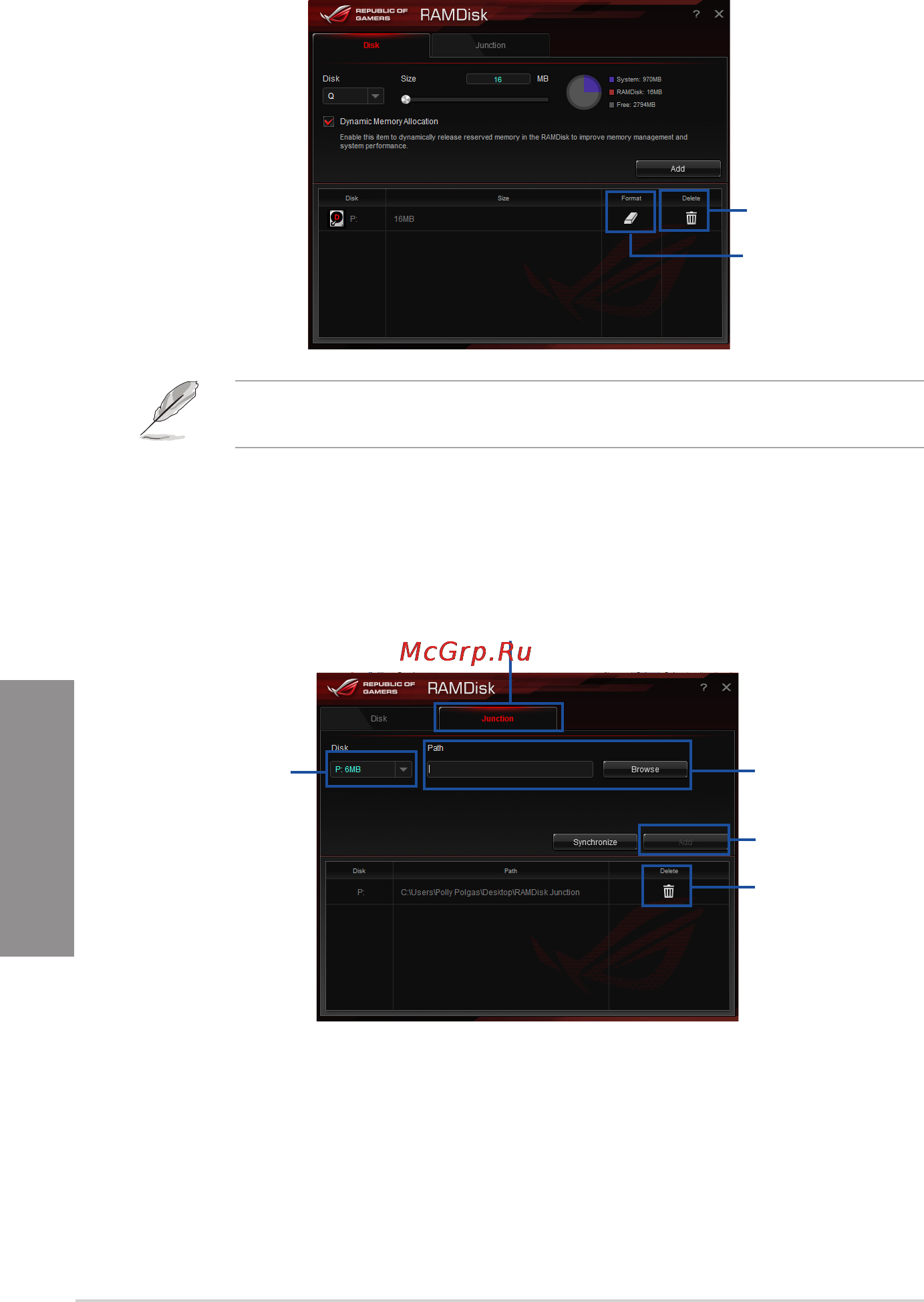

To delete or format an existing RAMDisk drive:
Click or tap to delete the
existing RAMDisk drive
Click or tap to format the
existing RAMDisk drive
Creating/Deleting a Junction Point
AjunctionpointcreatesalinkthatremapstheoriginalcontentsintotheRAMDisk,enabling
accesstothedesiredapplicationordatatobedonepurelywithintheoriginallelocation.
TheformatfunctionisavailableonlyifyouenabletheDynamicMemoryAllocationfunction
onyourdisk.
Select the Junction tab to create your
junction point
Click or tap to select
where to create a
junction point.
Click or tap to finish
adding the new
junction point.
Click or tap the drop-
down arrow to select
your RAMDisk drive and
its available storage
space.
Click or tap to delete
the existing junction
point.
