3-42
Chapter 3: BIOS setup
Chapter 3

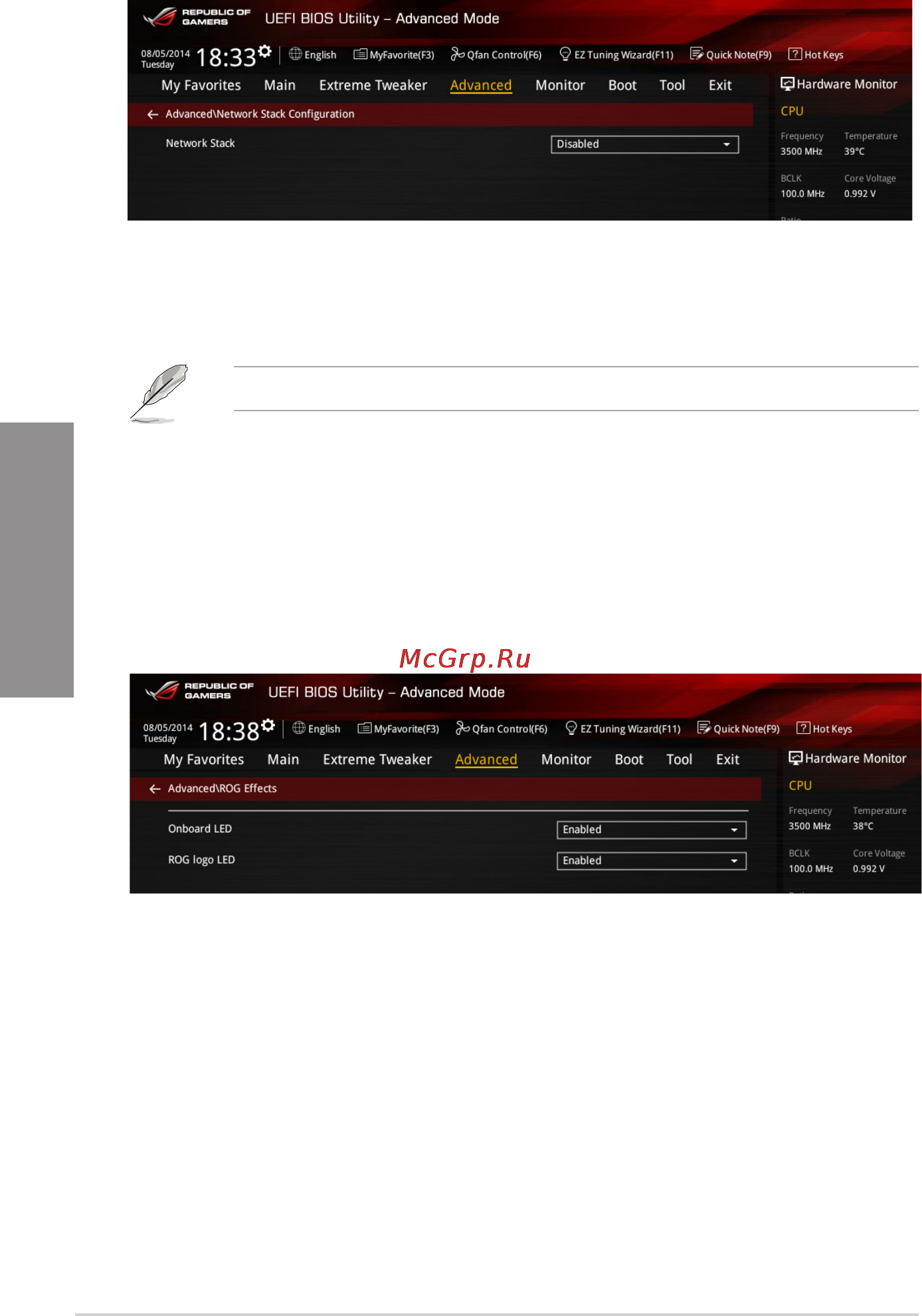

3.6.9 Network Stack Configuration
Network Stack [Disabled]
This item allows you to disable or enable the UEFI network stack.
Conguration options: [Disabled] [Enabled]
The following items appear only when you set the Network Stack to [Enabled].
Ipv4 / Ipv6 PXE Support [Enabled]
Allows you to enable or disable the Ipv4/Ipv6 PXE boot option.
Conguration options: [Disabled] [Enabled]
3.6.10 ROG Effects
Onboard LED [Enabled]
This switch enables you to turn on/off all the onboard LEDs.
Conguration options: [Disabled] [Enabled]
ROG logo LED [Enabled]
This item allows you to enable or disable the ROG logo LED.
Conguration options: [Disabled] [Enabled]
