ASUS RAMPAGE V EXTREME
1-25
Chapter 1

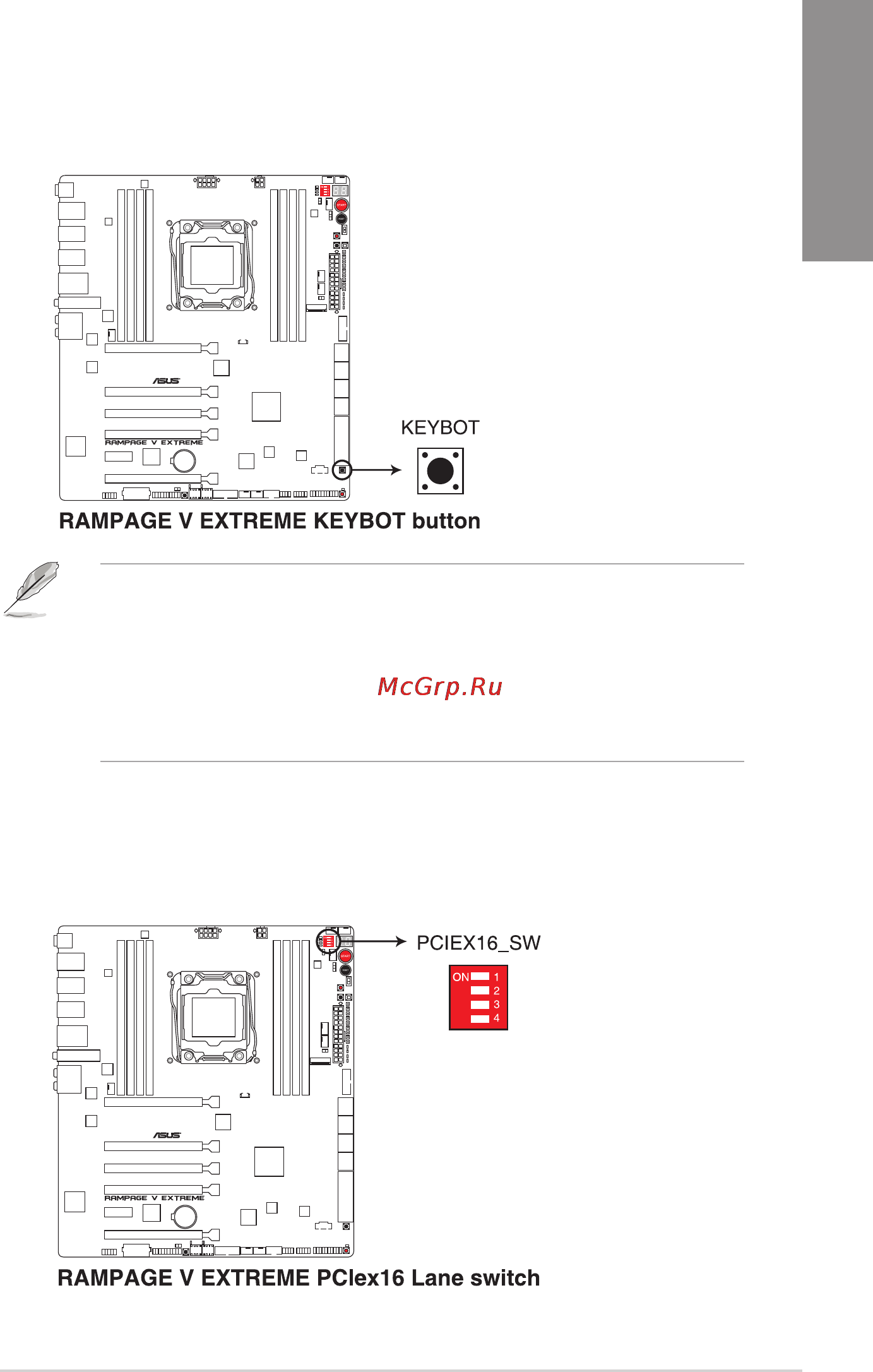

9. PCIe x16 Lane switch
These slide switches allows you to enable and disable the corresponding PCIe x16 slots.
When one of the installed PCIe x16 cards is out of order, you can use the slide switch to
nd out the faulty one without removing the cards.
8. KeyBot button (KEYBOT)
Press this button to activate the KeyBot feature and enable any custom macros and
functions stored in the KeyBot microchip.
• The KeyBot feature only supports USB keyboards connected on the designated USB
port. For the location of the KeyBot USB port, refer to the Rear I/O connection section
of this user guide.
• The KEYBOT_LED near the KEYBOT button lights up if the Keybot function is
enabled.
• For more information about the KeyBot feature, refer to the Software Support
chapter of this user guide.
