ASUS RAMPAGE V EXTREME
2-19
Chapter 2
2.4 OC Panel
The OC Panel is a device that allows you to overclock your PC without the need to go to the
BIOSsettingsorusesoftwareutilities.YoucansetuptheOCPanelinanavailable5.25-inch
drivebayonyourcomputerchassis(NormalMode)orasanexternalhandheldconsoleonan
“open-air”OCtestbench(ExtremeMode).
Thesemodesarefurtherexplainedinthesucceedingsubsections.
• Ensurethatyoursystemhasadequatecoolingdesignedforoverclockingbeforeusing
the OC Panel.
• EnsuretoupdateyourOCPanel’srmware.Visitwww.asus.com for the latest
rmwareandupdatesabouttheOCPanel.
• EnsurethatyouhaveinstalledROGConnectPlusdriverfortheNORMALModeofthe
OC Panel.

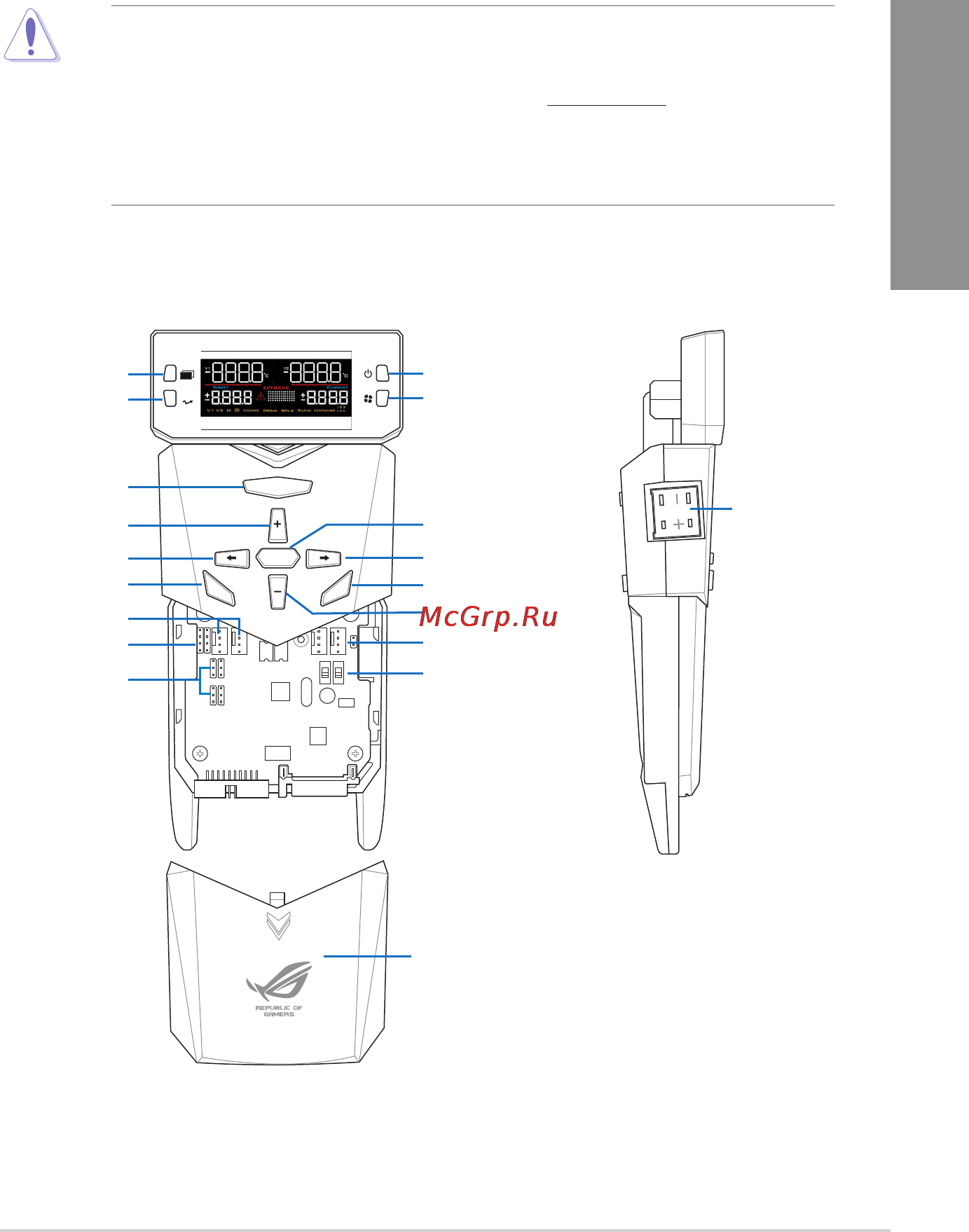

2.4.1 OC Panel Overview
ON
OFF
ON
OFF
OC
Start
Clear
Reset
OK
OC
Start
Clear
Reset
OK
Subzero Sense
connector
ON
OFF
ON
OFF
Start
Clear
Reset
OK
OC
LCM Power Button
Normal/Extreme
Mode switch
CPU Level Up
Start Button
Value up Button
Left Arrow button
FanSpeed Control button
OK button
Reset button
Value Down button
Right Arrow button
Clear button
Fan connectors 1,2
VGA hotwire connectors
Fan connectors 3,4
VGA hotwire
Pause and Slow Mode
OC Panel cover
