Asus rog rampage v extreme/u3.1 [67/230] Cpu installation

ASUS RAMPAGE V EXTREME

2-3

Chapter 2

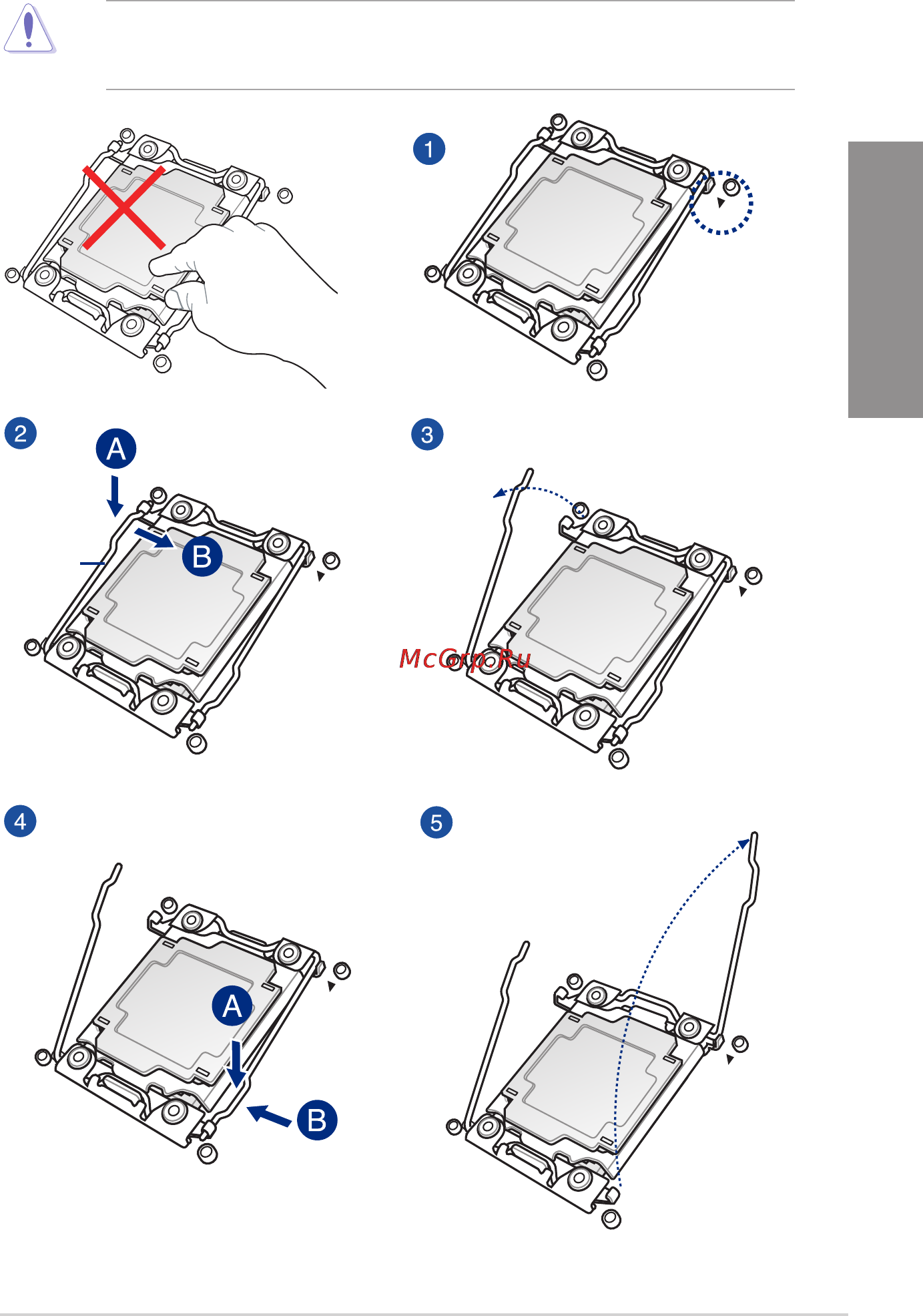

2.1.2 CPU installation

Ensure that you install the correct CPU designed for LGA2011-v3 socket only. DO NOT

install a CPU designed for LGA1150, LGA1155, and LGA1156 sockets on the LGA2011-v3

socket.

Triangle mark

Load lever
