4.3 Software information
MostoftheapplicationsinthesupportDVDhavewizardsthatwillconvenientlyguideyou
throughtheinstallation.Viewtheonlinehelporreadmelethatcamewiththesoftware
applicationformoreinformation.
4.4 AI Suite 3
AISuite3isanall-in-oneinterfacethatintegratesseveralASUSutilitiesandallowsyouto
launchandoperatetheseutilitiessimultaneously.
Installing AI Suite 3
• EnsurethatyouhaveanAdministratoraccountbeforeinstallingAISuite3in
Windows
®
7orWindows
®
8/Windows
®
8.1OS.
• ToinstalltheWi-Fi-enabledfeaturesofAISuite3,ensurethatyouinstalltheWi-Fi
moduleanditslatestdriverfromthebundledsupportDVD.Todothis,gotoDrivers
tab>ASUS Bluetooth 4.0 Wi-Fi Driverandfollowthesucceedingonscreen
instructions.
ToinstallAISuite3onyourcomputer:
Windows
®
7 OS
1. PlacetheSupportDVDintotheopticaldrive.

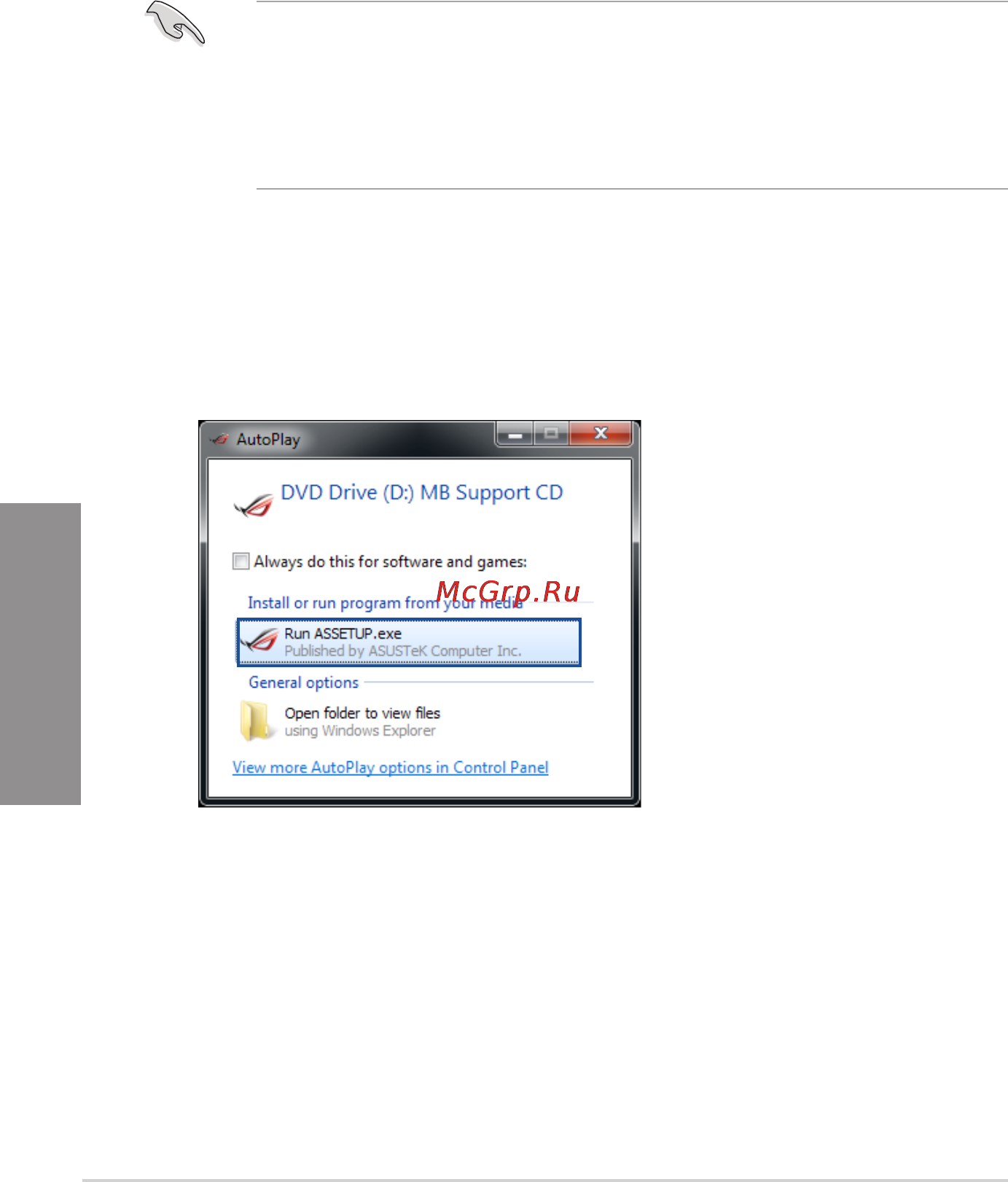

2. IntheAutoPlay dialogbox,clickRun ASSETUP.exethenselecttheUtilitiestab.
3. FromtheUtilitiestab,clickAI Suite 3 thenfollowthesucceedingonscreen
instructions.
