Chapter 1: Product introduction

Chapter 1

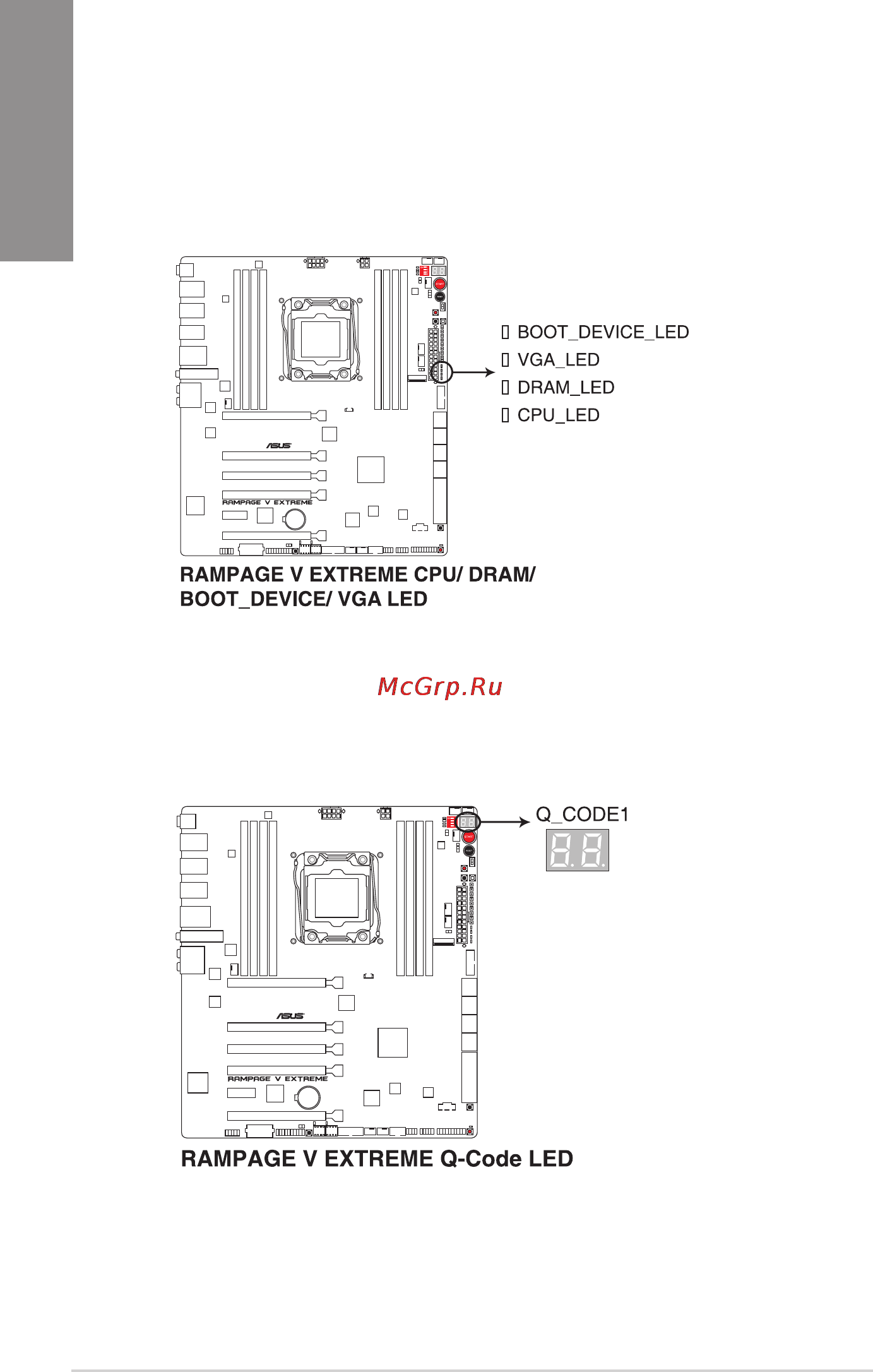

3. Q LED

Q LEDs check key components (CPU, DRAM, VGA card, and boot devices) in

sequence during motherboard booting process. If an error is found, the corresponding

LED will continue lighting until the problem is solved. This user-friendly design provides

an intuitive way to locate the root-cause of the problem within seconds.

4. Q-Code LED

The Q-Code LED design provides you with a 2-digit error code that displays the system

status. Refer to the Q-Code table on the next page for details.
