ASUS RAMPAGE V EXTREME
3-47
Chapter 3
3.8 Boot menu
The Boot menu items allow you to change the system boot options.
Scroll down to display the other BIOS items.

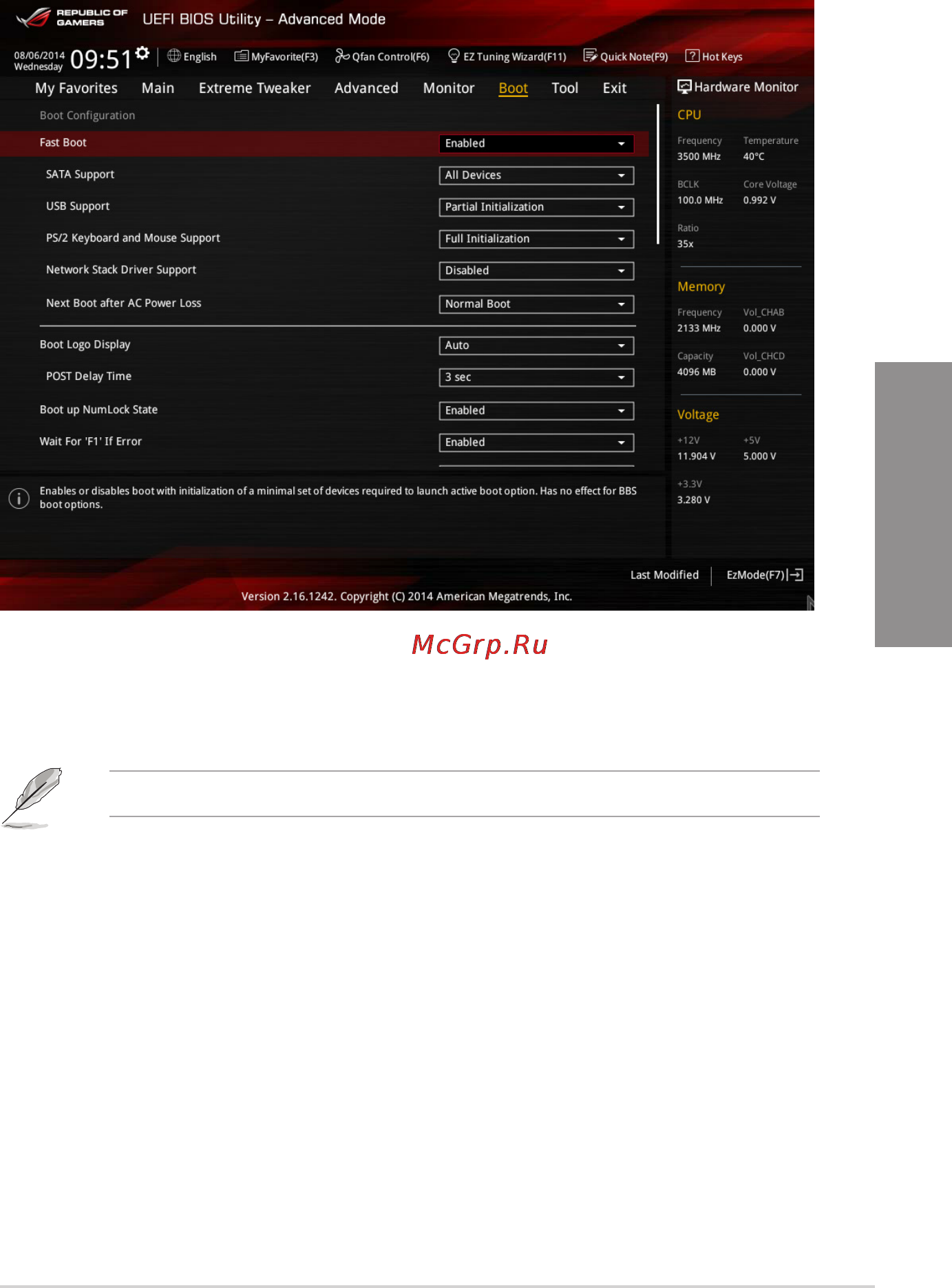

Fast Boot [Disabled]
[Disabled] Allows your system to go back to its normal boot speed.
[Enabled] Allows your system to accelerate the boot speed.
The following items appear only when you set the Fast Boot to [Enabled].
SATA Support [All Devices]
[All Devices] All devices connected to SATA ports will be available during
POST.
[Hard Drive Only] Only hard drives connected to SATA ports will be detected
during POST.
[Boot Drive Only] Only boot drive connected to SATA ports will be detected during
POST.
