ASUS RAMPAGE V EXTREME
2-15
Chapter 2

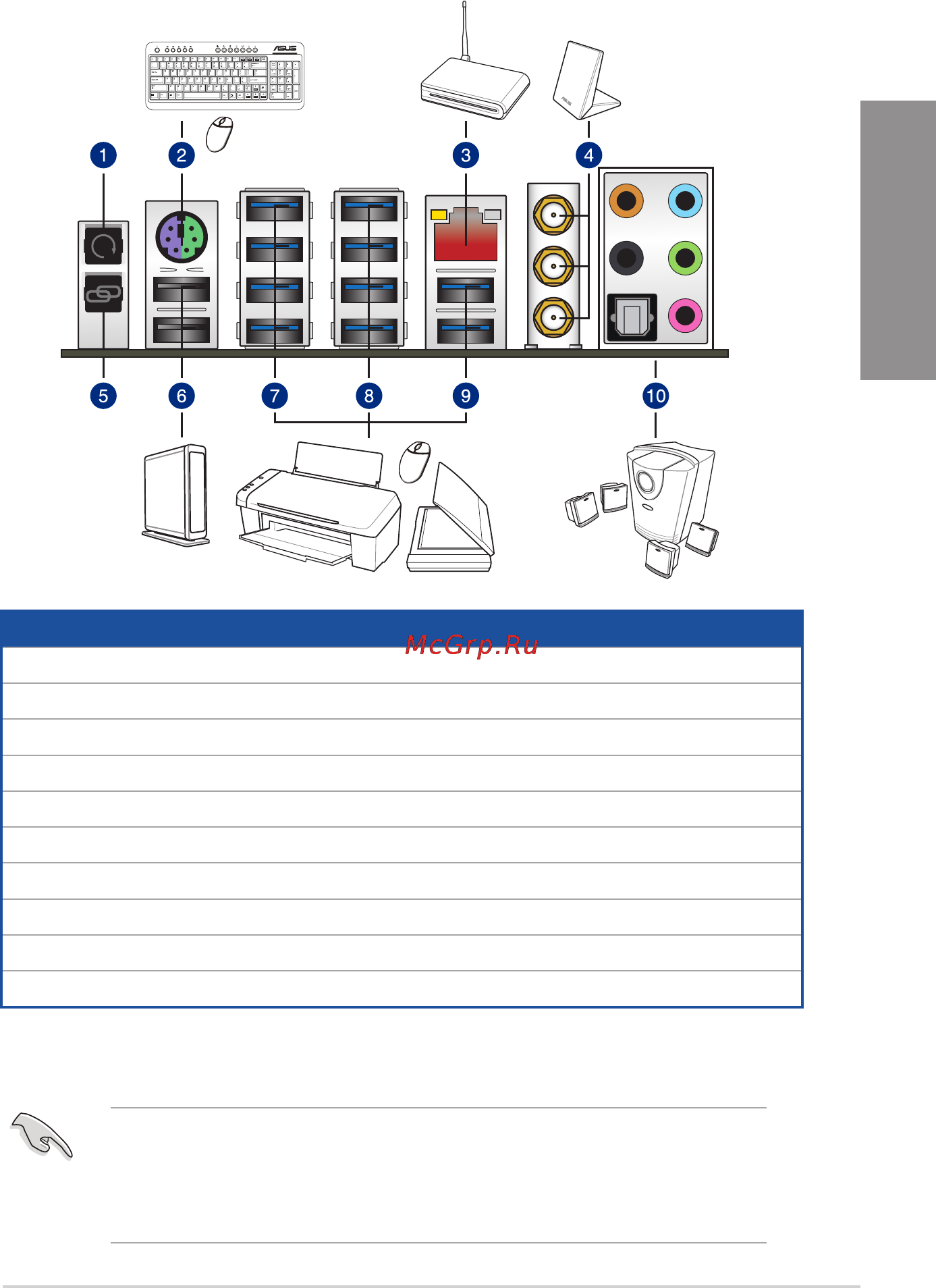

2.3 Motherboard rear and audio connections
2.3.1 Rear I/O connection
Rear panel connectors
1.ClearCMOSbutton
2. PS/2 mouse/keyboard port
3. Intel
®
LAN (RJ-45) port*
4. Wi-Fi802.11a/b/g/n/acBluetoothV4.0**
5. ROG Connect button
6.USB2.0ports7and8.
7. USB3.0portsE1,E2,E3,andE4.SupportsASUS3.0BoostTurboMode.
8. USB3.0portsE5,E6,E7,andE8.SupportsASUS3.0BoostTurboMode.
9. USB3.0portsE9andE10.SupportsASUS3.0BoostTurboMode.
10. Audio I/O ports with Optical S/PDIF Out port***
*, **, and ***: Refer to the tables on the next page for Bluetooth/Wi-Fi module LEDs, LAN port LEDs, and audio port
definitions.
ThePCIE_X4_1(gray)slotsharesbandwidthwiththePCIE_X1_1slot,USB3_E910,
andSATAExpress_E1connector.WhenthePCIE_X4_1slotisoccupiedbyanX1
orX2device,theSATAEXPRESS_E1willbedisabled.WhenthePCIE_X4_1slot
isoccupiedbyX4device,boththeSATAEXPRESS_E1,USB3_E910ports,andthe
PCIE_X1_1slotwillbedisabled.
