![Delta Electronics VFD055CH23A-21 [103/638] Chapter 7 optional accessories](/views2/1568184/page103/bg67.png)
Chapter 7 Optional Accessories
7-33
Frame E
Applicable model:
VFD450CH23A-00/21; VFD550CH23A-00/21; VFD900CH43A-00/21; VFD1100CH43A-00/21

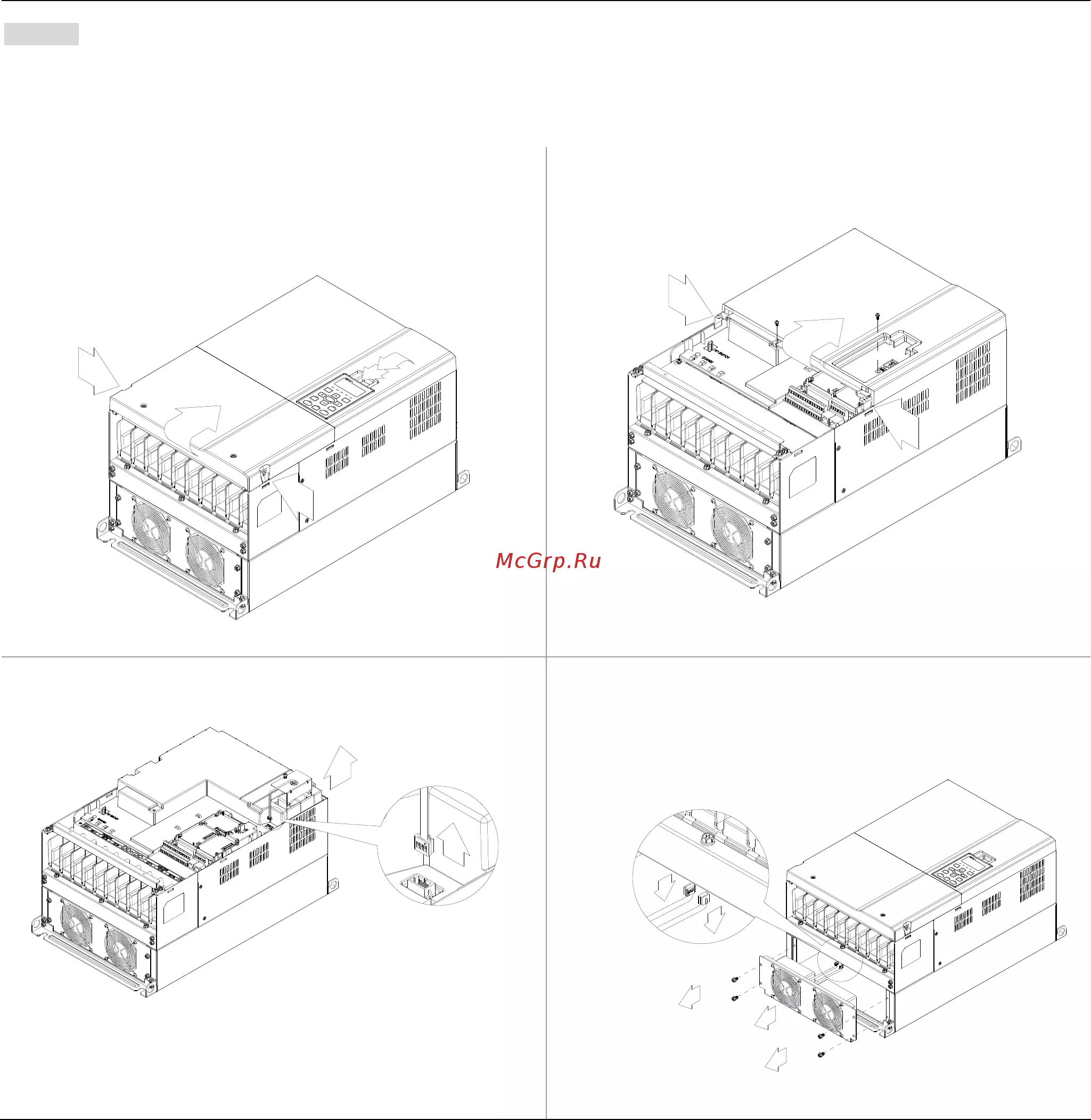

Loosen screw 1~4 (as shown in the figure below), and
disconnect the fan power then remove the fan. Screw torque:
24~26kg-cm (20.8~25.6in-lbf).
1
2
3
4
Loosen screw 1~4(as shown in the figure below), and
disconnect the fan power then remove the fan. Screw torque:
24~26kg-cm (20.8~25.6in-lbf).
1
2
3
4
Loosen screw 1 and screw 2 (as shown in the figure below), and disconnect fan power before removing the fan. Screw torque:
24~26kg-cm (20.8~25.6in-lbf).
1
2
Frame F
Applicable model
VFD750CH23A-00/21; VFD1320CH43A-00/21
Fan model『MKC-FFKM』
Loosen the screws and removes the fan (as shown in figure below). Screw torque: 24~26kg-cm (20.8~22.6Ib-in』
1
4
3
2
