Chapter 10 Digital Keypad
10-11
6. Source of the Operation Command (P00-21)
7. Max. Operation Frequency (P01-00)
8. Base Frequency of Motor 1 (P01-01)
9. Max. Output Voltage Setting of Motor 1 (P01-02)
10. Full-load Current of Induction Motor 1 (P05-01)
11. Rated Power of Induction Motor 1 (P05-02)
12. Rated Speed of Induction Motor 1 (P05-03)
13. Pole Number of Induction Motor 1 (P05-04)
14. No-load Current of Induction Motor 1 (P05-05)
15. Over-voltage Stall Prevention (P06-01)
16. Software Brake Level (P07-00)
17. Encoder Type Selection (P10-00)
18. Encoder Pulse (P10-01)
19. Encoder Input Type Setting (P10-02)
20. System Control (P11-00)
21. Per Unit of System Inertia (P11-01)
22. ASR1 Low-speed Bandwidth (P11-03)
23. ASR2 High-speed Bandwidth (P11-04)
24. Zero-speed Bandwidth (P11-05)
25. Max. Torque Command (P11-27)
26. Source of Torque Offset (P11-28)
27. Torque Offset Setting (P11-29)
28. Source of Torque Command (P11-33)
29. Torque Command (P11-34)
30. Speed Limit Selection (P11-36)
31. Forward Speed Limit (torque mode) (P11-37)
32. Reverse Speed Limit (torque mode) (P11-38)

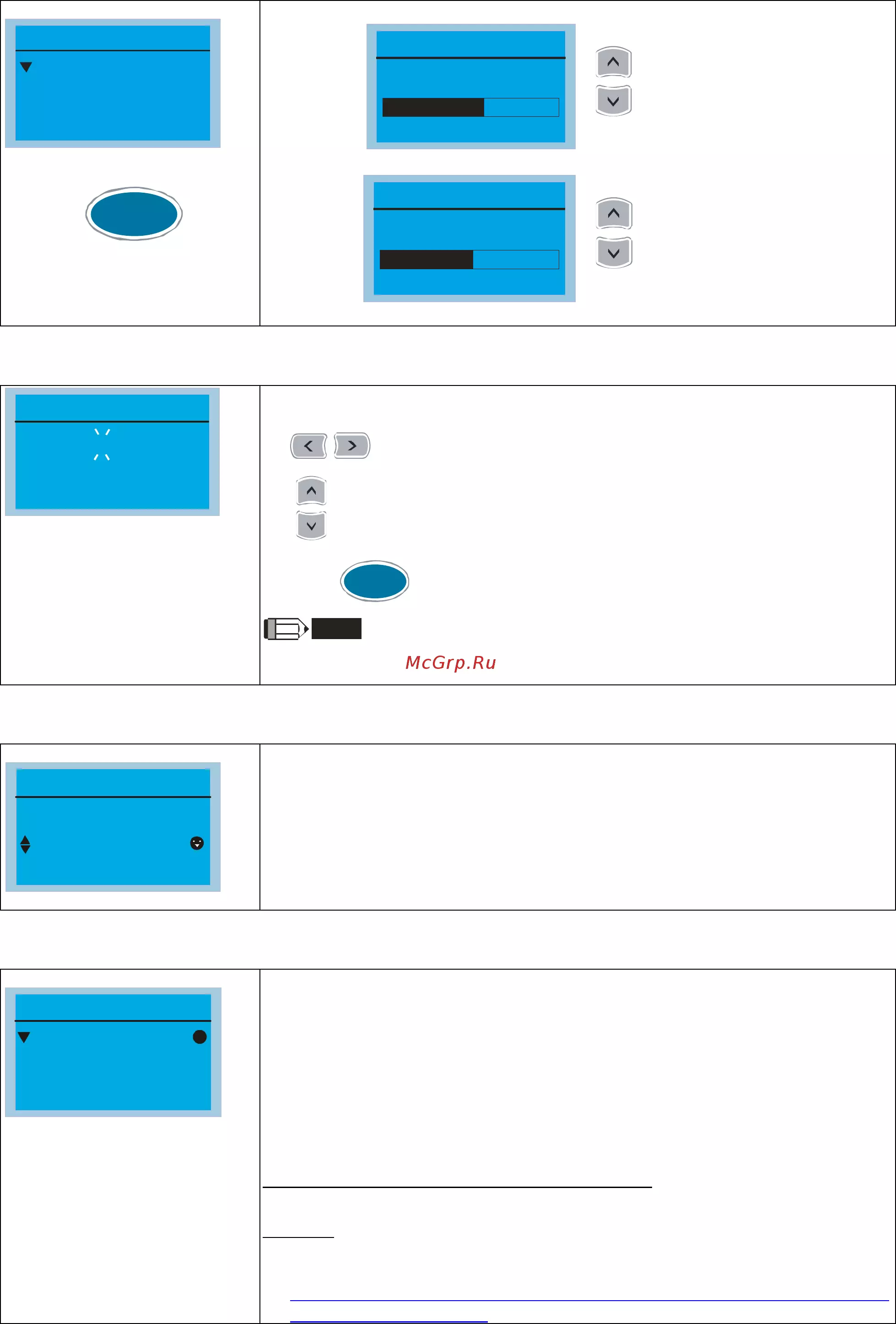

6.My Mode
01:
02:
03:
My mode
Click F4 in parameter setting
page, the parameter will save
to My Mode. To delete or
correct the parameter, enter
this parameter and click the
“DEL” on the bottom right
corner.
My mode:
It can save 01~32 sets of
parameters (Pr).
1
05-02
motor current
05-02 Amps
0.00~ 600.00
MY MODE
Press F4 and save to my mode.
2
01: motor current
02:
03:
My mode
The parameter (Pr) will be displayed
in My mode if it is properly saved.
To correct or to delete this Pr. clicks
DEL.
05-02
motor current
05-02 Amps
0.00~ 600.00
DEL
Press F4 to delete this Pr. setting
in My Mode.
