Chapter 10 Digital Keypad

10-18

3) Edit Main Page

1. Click on a page under the TP Page to edit or go to View  click on Boot Page to begin to edit main page.

The objects available for you to use are in the red circles below.

From left to right: Static Text, ASCII Display, Static Bitmap, Scale, Bar Graph, Button, Clock Display, Units,

Numeric Input, 11 geometric bitmaps and different width of lines. The application of Static Text, Static

Bitmap, and geometric bitmap is the same as the editing startup page.

2. Numeric/ASCII Display A): Go to Objects (O)Click once on the Numeric/ASCII Display(A)

Drag to enlarge to reach the size that you need to add objects in the

screen where you want to create an object Double click on the object to set up Related Devices, Frame

Setting , Fonts and Alignment.

Related Device: Choose the VFD Communication Port that you need, if you want to read output

frequency (H), set the VFD Communication Port to $2202. For other values, please refer to ACMD

ModBus Comm Address List.

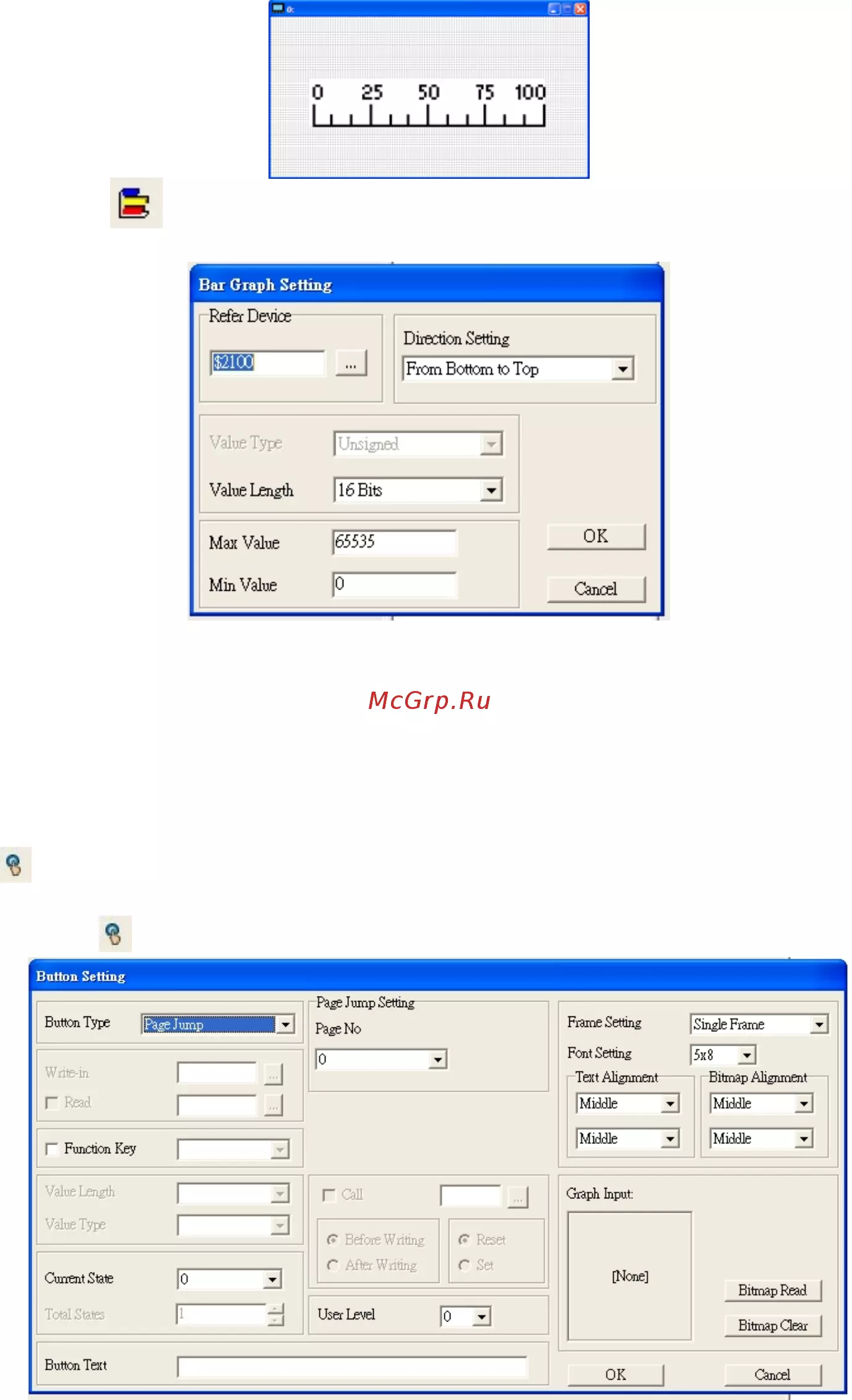

3. Scale Setting

: On the Tool Bar, click on this for Scale Setting. You can also edit Scale Setting in

the Property Window on the right hand side of your computer screen.

a. Scale Position: Click on the drop down list to choose which position that you need to place a scale.

b. Scale Side: Click on the drop down list to choose if you want to number your scale from smaller

number to bigger number or from big to small. Click OK to accept this setting or click Cancel to

abort.

c. Font Setting: Click on the drop down list to choose the Font setting that you need then click OK to

accept the setting or click Cancel to abort.
