Chapter 7 Optional Accessories
7-29

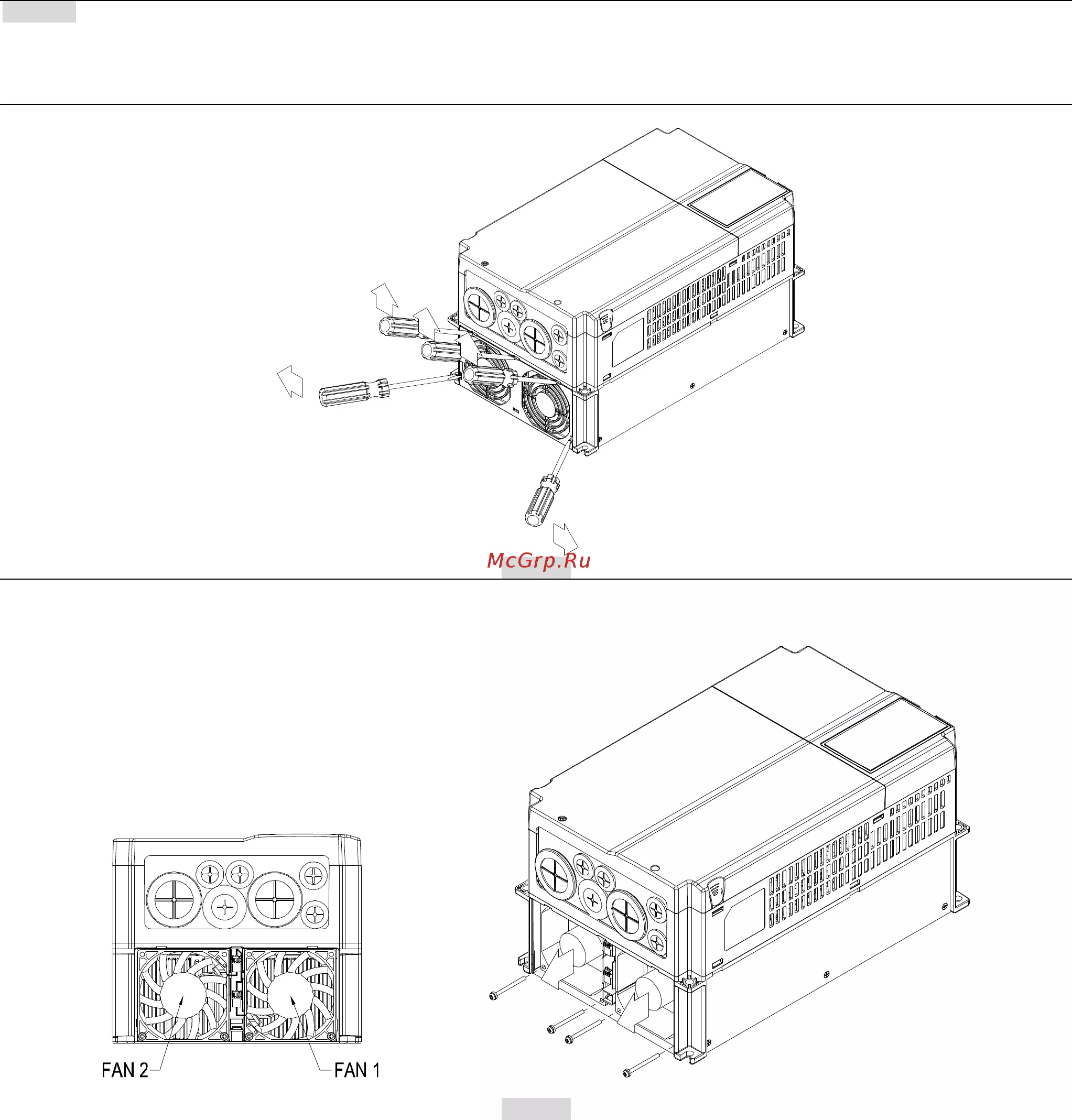

Fan Removal
Frame A
Applicable model:
VFD015CH23A-21;VFD022CH23A-21;VFD037CH23A-21;VFD015CH43A/4EA-21;VFD022CH43A/4EA-21;
VFD037CH43A/4EA-21; VFD055CH43A/4EA-21
1. Press the tabs on both side of the fan to successfully
remove the fan. (The arrow)
2. Disconnect the power terminal before removing the fan.
(As shown below.)
Frame B
Applicable model:
VFD055CH23A-21; VFD075CH23A-21; VFD110CH23A-21; VFD075CH43A/43E-21; VFD110CH43A/43E-21;
VFD150CH43A/43E-21
1. Press the tab on both side of the fan to successfully
remove the fan.
2. Disconnect the power terminal before removing the fan.
Frame B&C
Applicable model:
VFD055CH23A-21; VFD075CH23A-21; VFD110CH23A-21; VFD150CH23A-21; VFD185CH23A-21; VFD075CH43A/4 EA -21;
VFD110CH43A/4EA-21; VFD150CH43A/4 EA -21; VFD185CH43A/4 EA -21; VFD220CH43A/4 EA -21; VFD300CH43A/4 EA -21
Disconnect the power terminal by slotted screwdriver to remove the fan cover.
