Chapter 7 Optional Accessories
7-38

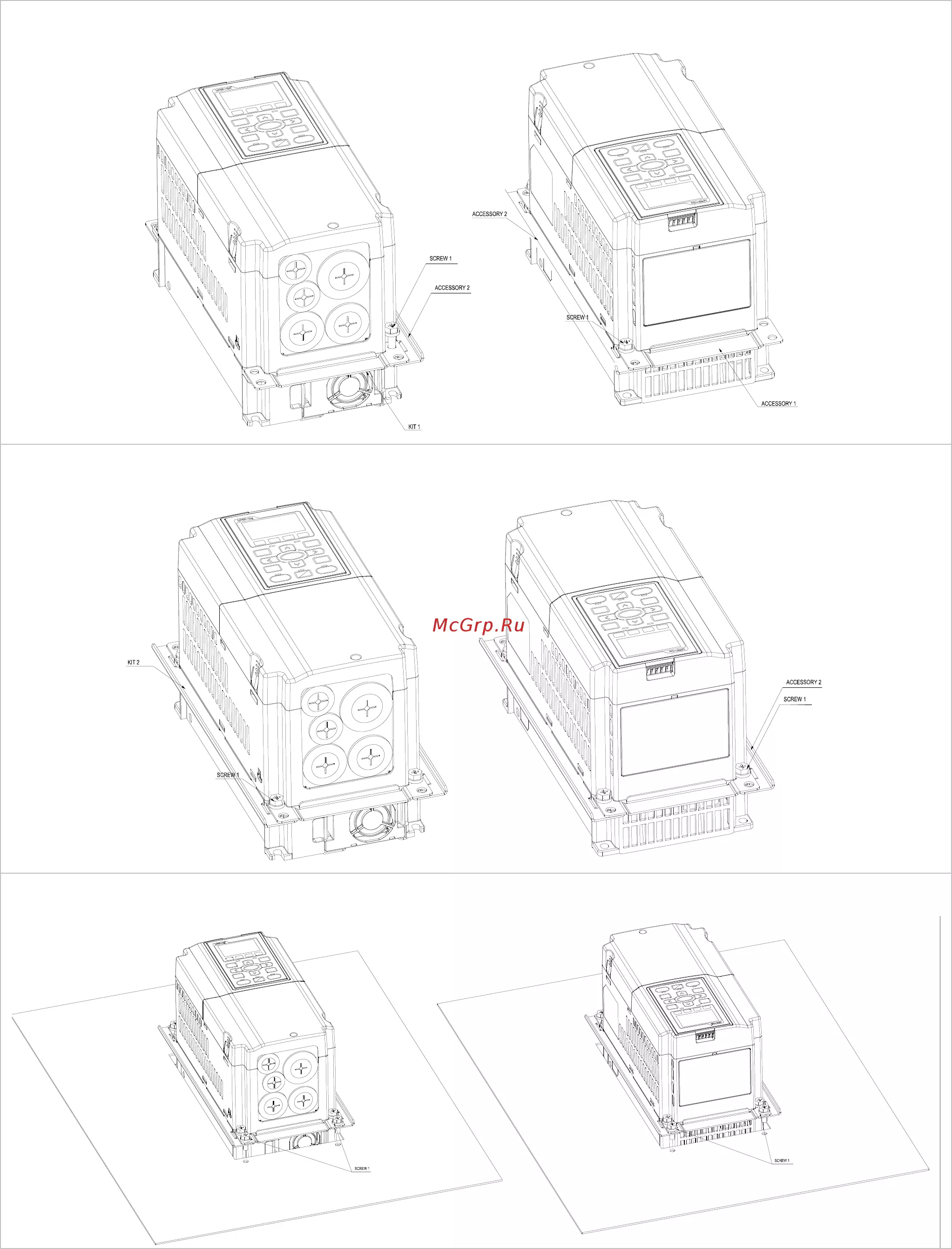

『MKC-AFM1』Installation
1. Install accessory 1 by fastening 4 of the screw 1(M3). Screw torque: 6~8kg-cm (5.21~6.94Ib-in).
2. Install accessory 2&3 by fastening 2 of the screw 2(M6). Screw torque: 25~30kg-cm (5.21~6.94Ib-in).
3. Install accessory 2&3 by fastening 2 of the screw 2(M6). Screw torque: 25~30kg-cm (5.21~6.94Ib-in).
4. Plate installation, place 4 of the screw 2 (M6) through accessory 2&3 and the plate then fasten the screws.
Screw torque: 25~30kg-cm (5.21~6.94Ib-in).
