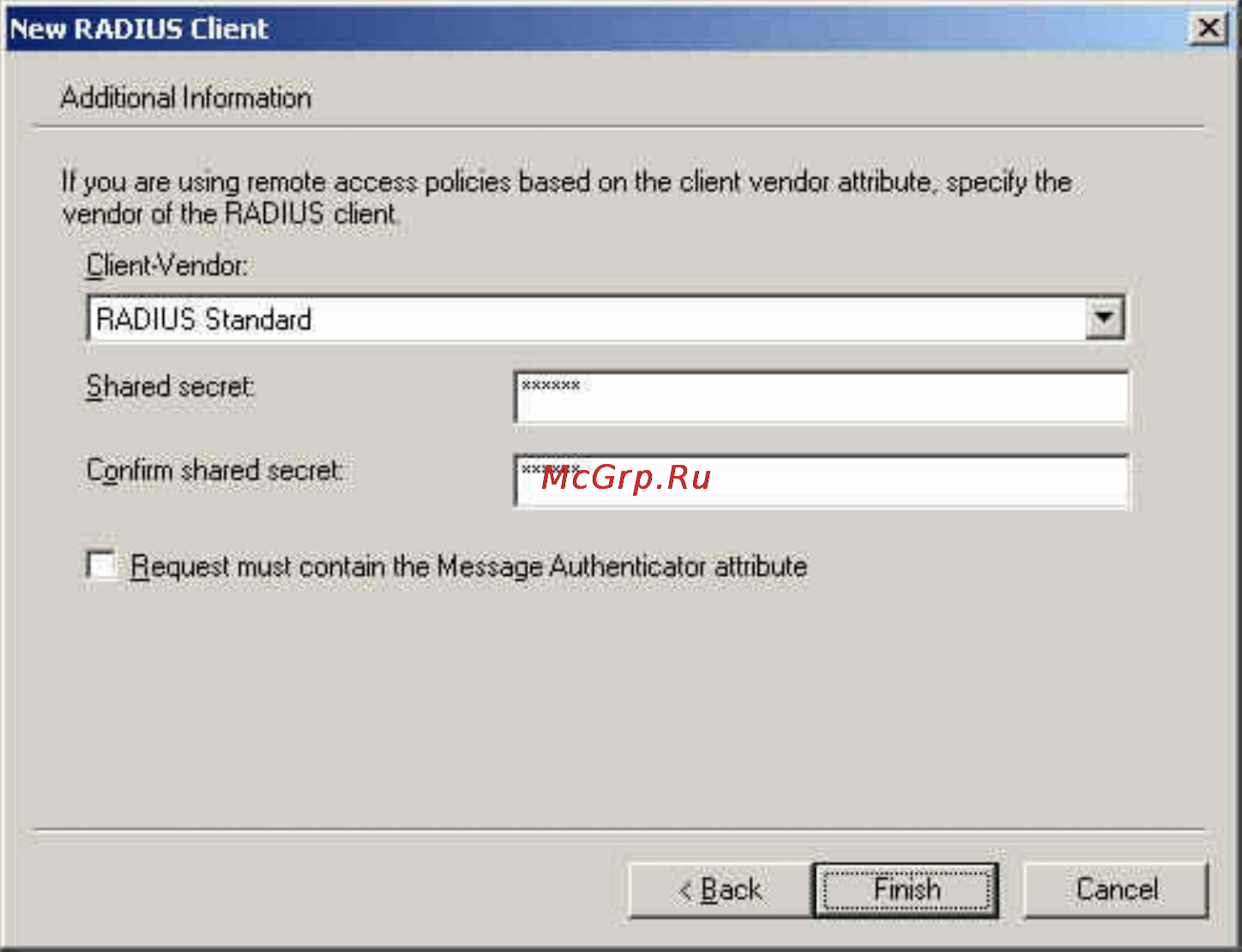

STEP 7﹒Choose RADIUS Standard; enter Shared Secret and Confirm Shared

Secret. (The settings must be the same as RADIUS of SG-1000)

Add New RADIUS Client and Password Web UI

１０２
