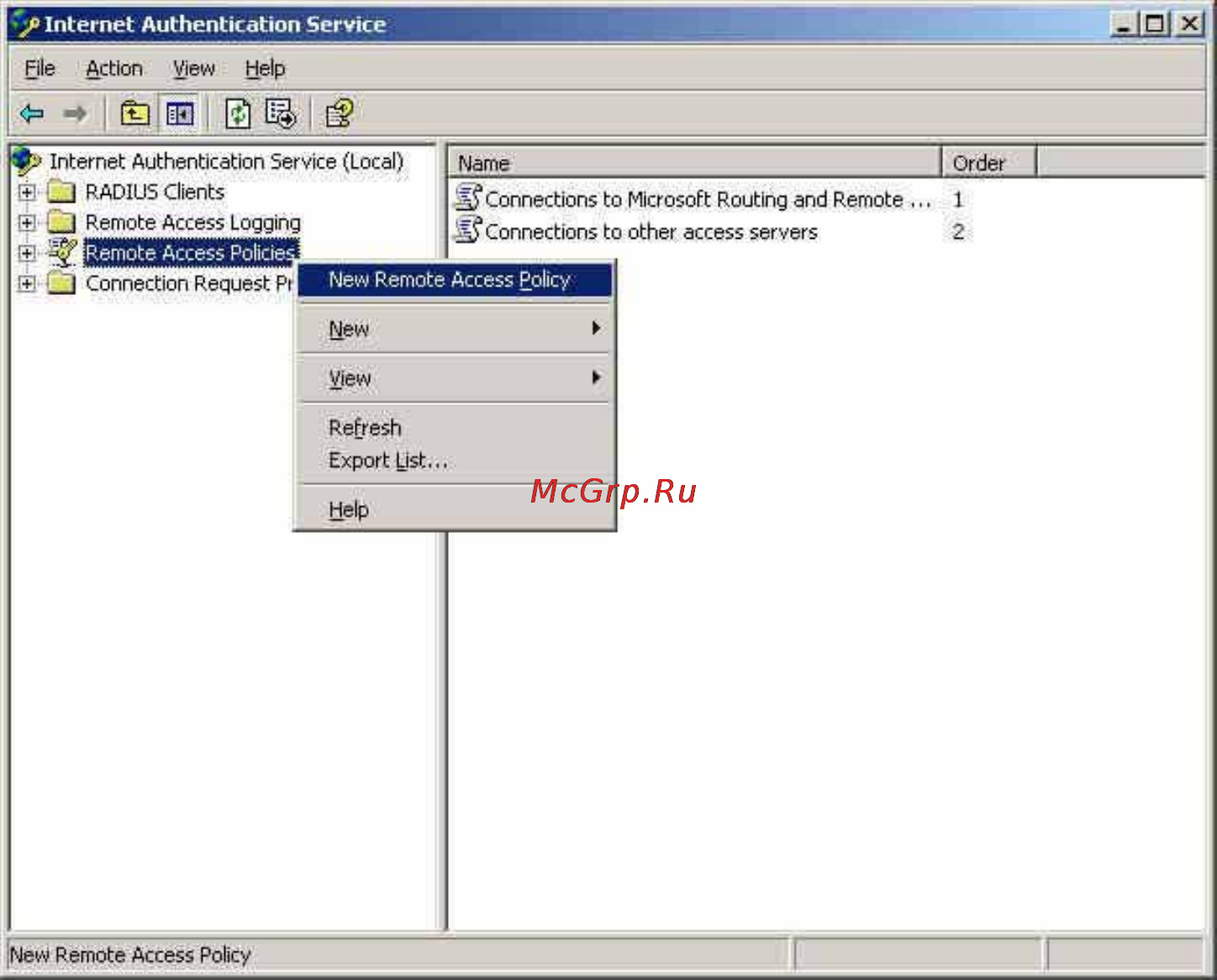

STEP 8﹒Press the right button on Remote Access Policies and select to add New

Remote Access Policy.

Add New Remote Access Policy

１０３
