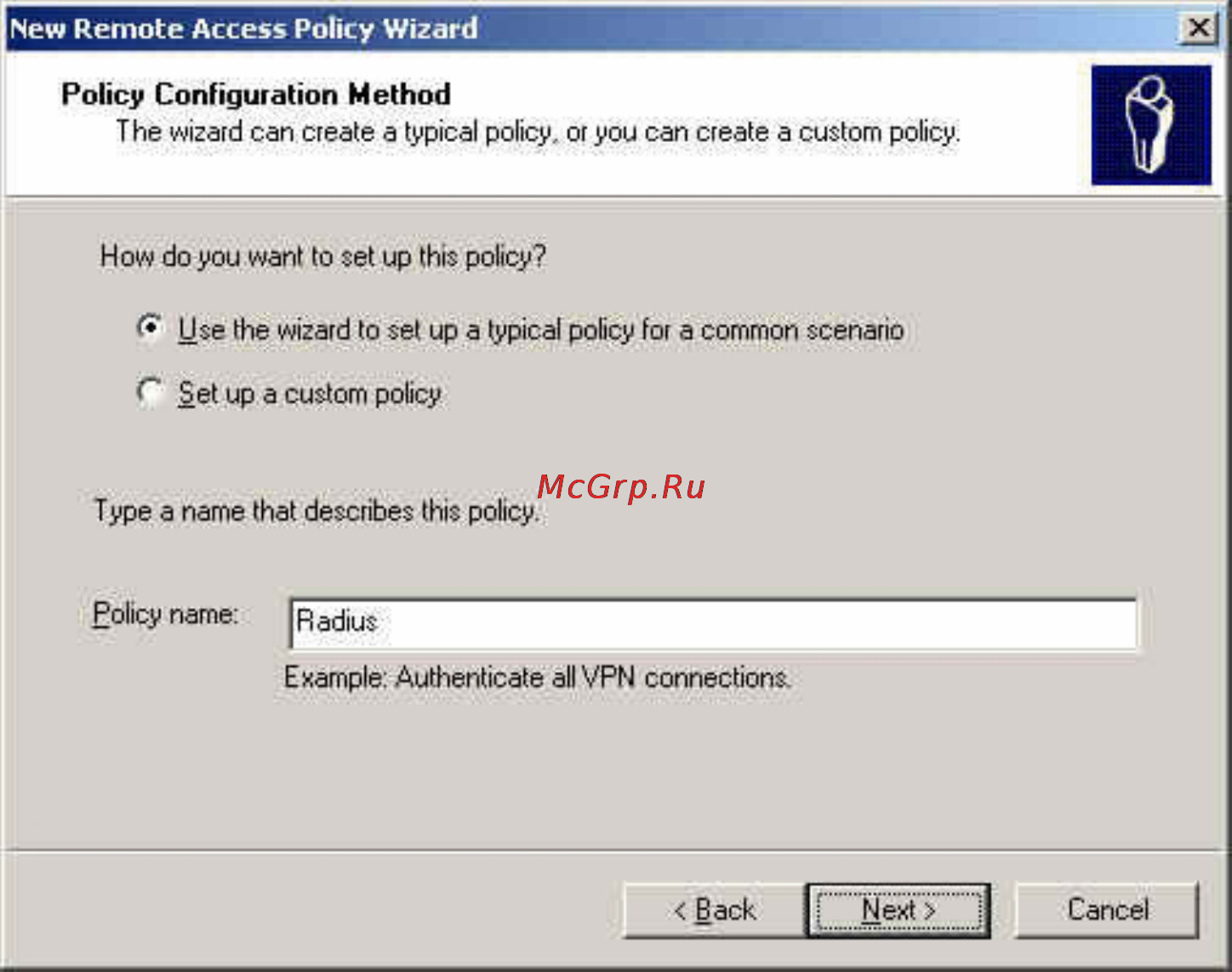

STEP 9﹒Select Use the wizard to set up a typical policy for a common scenario

and enter the Policy name.

Add Remote Access Policy and Name

１０４
