STEP 1﹒Enter the following in URL of Content Filtering function:

 Click New Entry

 URL String: Enter ~yahoo, and click OK

 Click New Entry

 URL String: Enter ~google, and click OK

 Click New Entry

 URL String: Enter ＊, and click OK

 Complete setting a URL Blocking policy

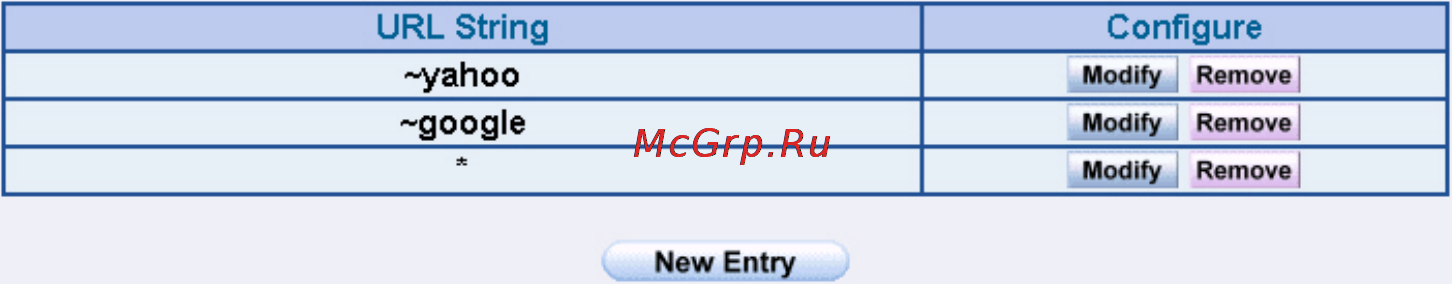

Content Filtering Table

１２６
