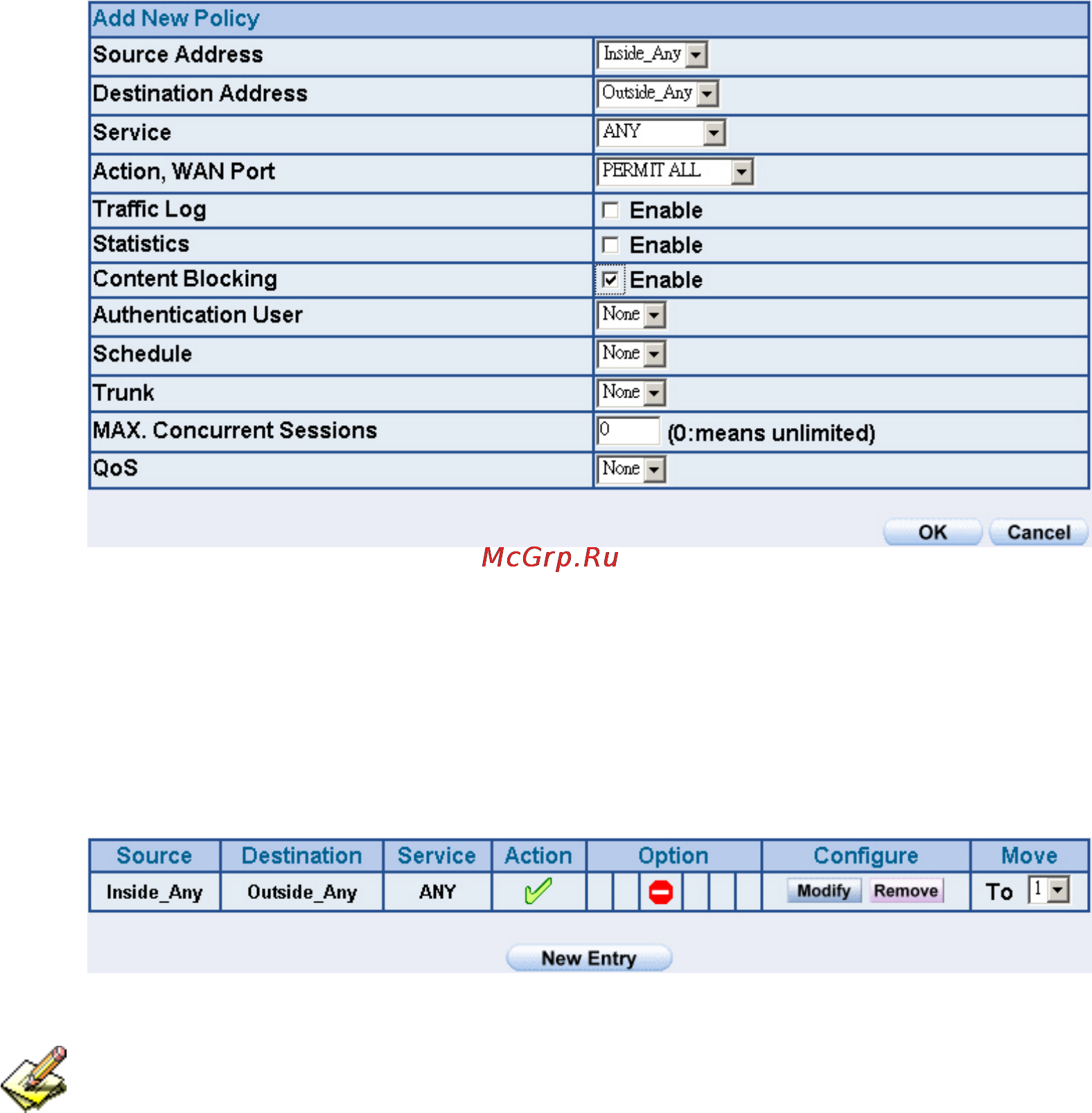

STEP 2﹒Add a Outgoing Policy and use in Content Blocking function:

URL Blocking Policy Setting

STEP 3﹒Complete the policy of permitting the internal users only can access to some

specific website in Outgoing Policy function:

Complete Policy Settings

Afterwards the users only can browse the website that include “yahoo” and “google” in

domain name by the above policy.

１２７
