The Default Gateway of Company A is the LAN IP of the SG-1000 192.168.10.1.

Follow the steps below:

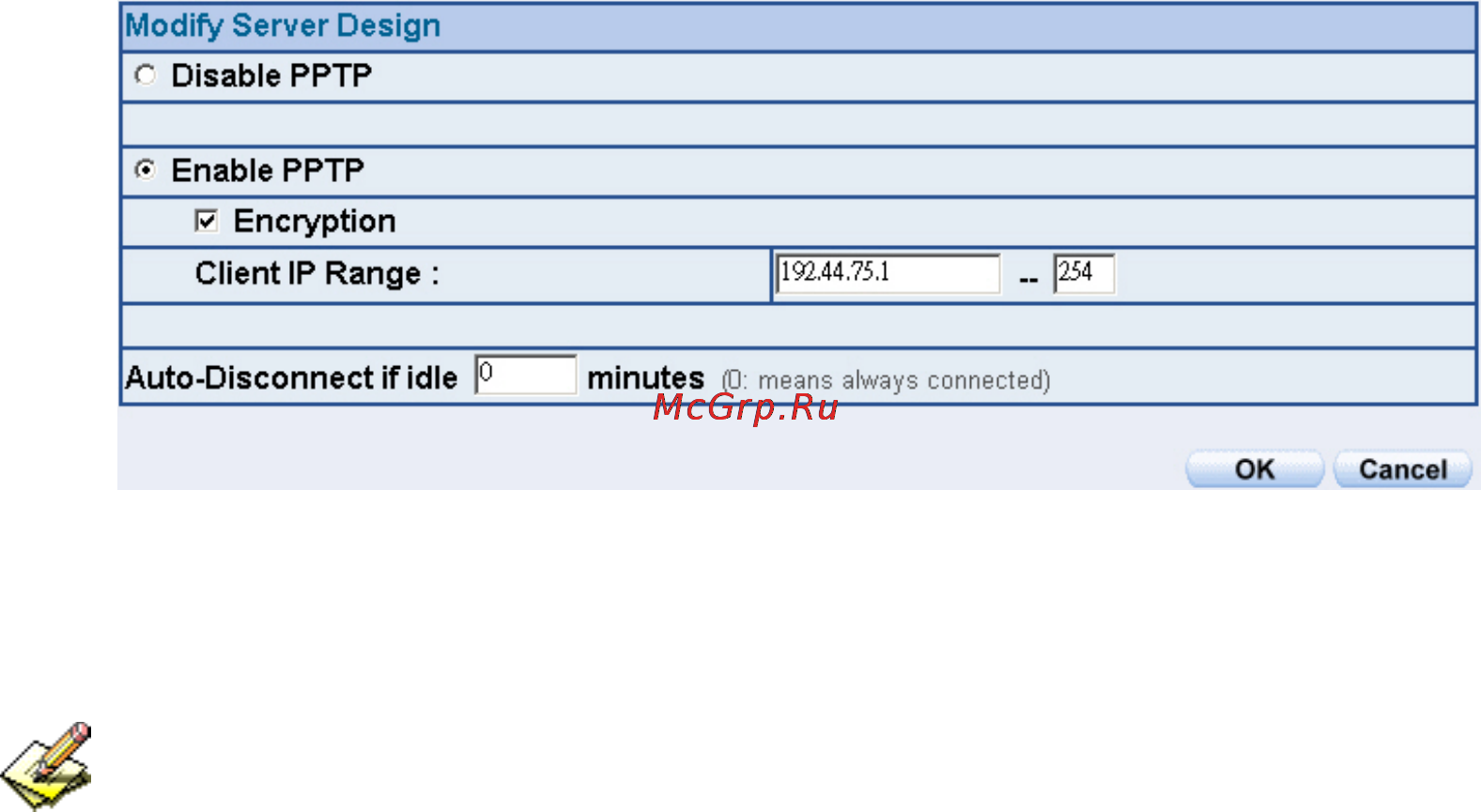

STEP 1. Enter PPTP Server of VPN function in the SG-1000 of Company A. Select

Modify and enable PPTP Server:

 Select Encryption.

 Client IP Range: Enter 192.44.75.1-254.

 Idle Time: Enter 0.

Enable PPTP VPN Server Settings

Idle Time: the setting time that the VPN Connection will auto-disconnect under unused

situation. (Unit: minute)
