STEP 2. Add the following settings in PPTP Server of VPN function in the SG-1000

of Company A:

 Select New Entry.

 User Name: Enter PPTP_Connection.

 Password: Enter 123456789.

 Client IP assigned by: Select IP Range.

 Click OK.

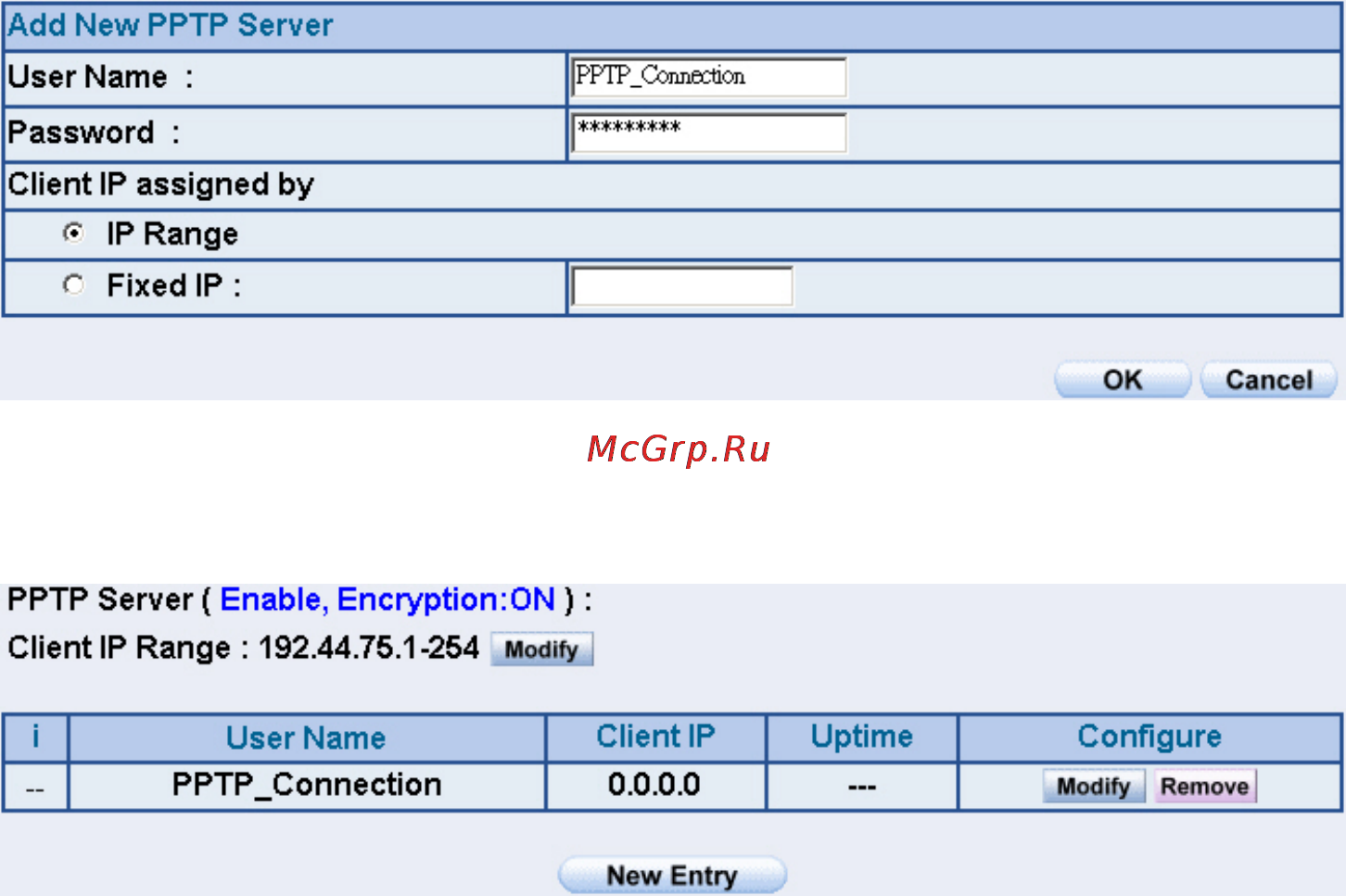

PPTP VPN Server Setting

Complete PPTP VPN Server Setting
