STEP 5. Enter the following setting in Incoming Policy:

 Schedule: Select Schedule_1.

 QoS: Select QoS_1.

 Trunk: Select PPTP_VPN_Trunk.

 Click OK.

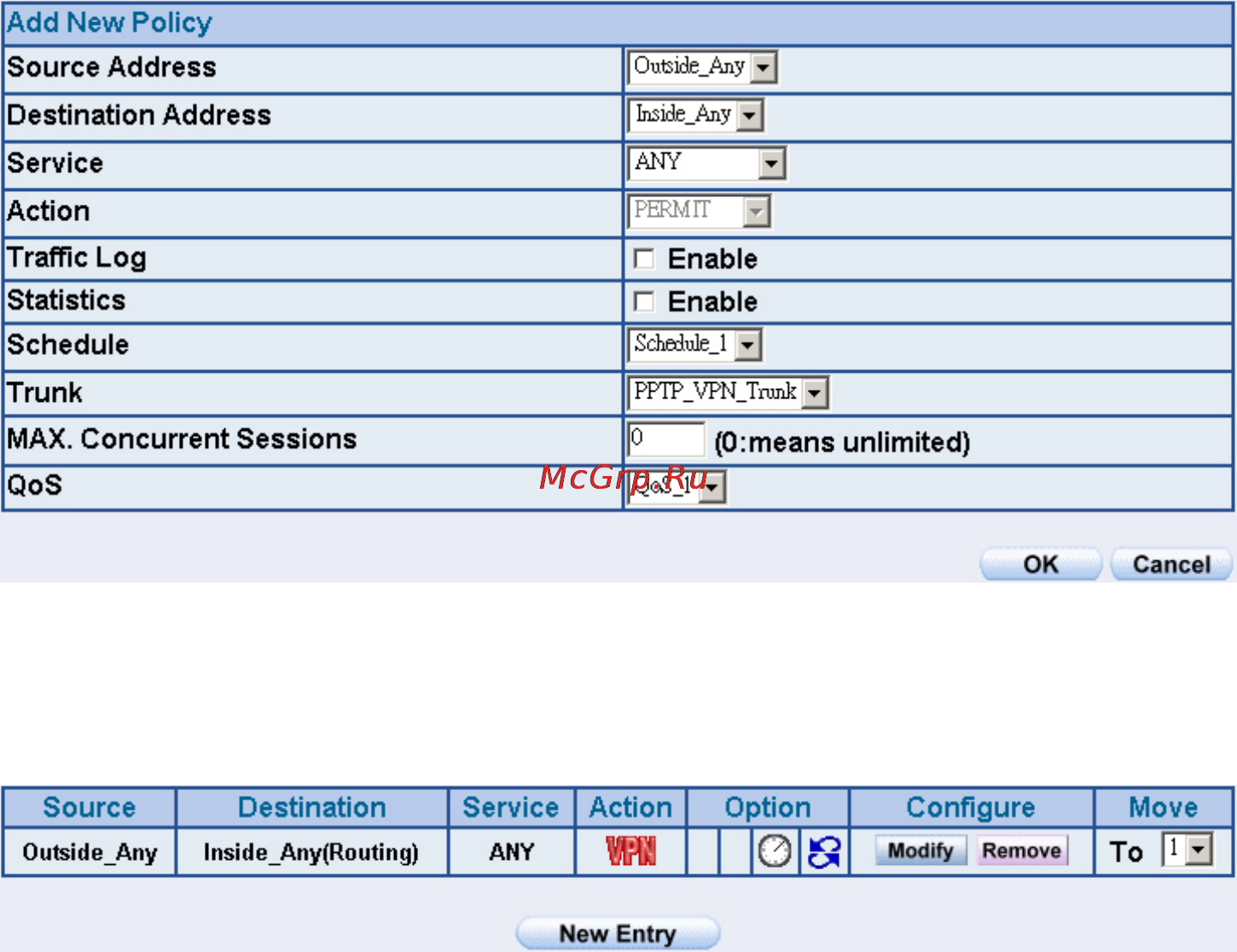

Setting the VPN Trunk Incoming Policy

Complete the VPN Trunk Incoming Policy Setting
