The Default Gateway of Company B is the LAN IP of the SG-1000 192.168.20.1.

Follow the steps below:

１８２

STEP 1. Add the following settings in PPTP Client of VPN function in the SG-1000

of Company B

 Click New Entry Button.

 User Name: Enter PPTP_Connection.

 Password: Enter123456789.

 Server IP or Domain Name: Enter 61.11.11.11.

 Select Encryption.

 WAN Interface: Select WAN1.

 Click OK.

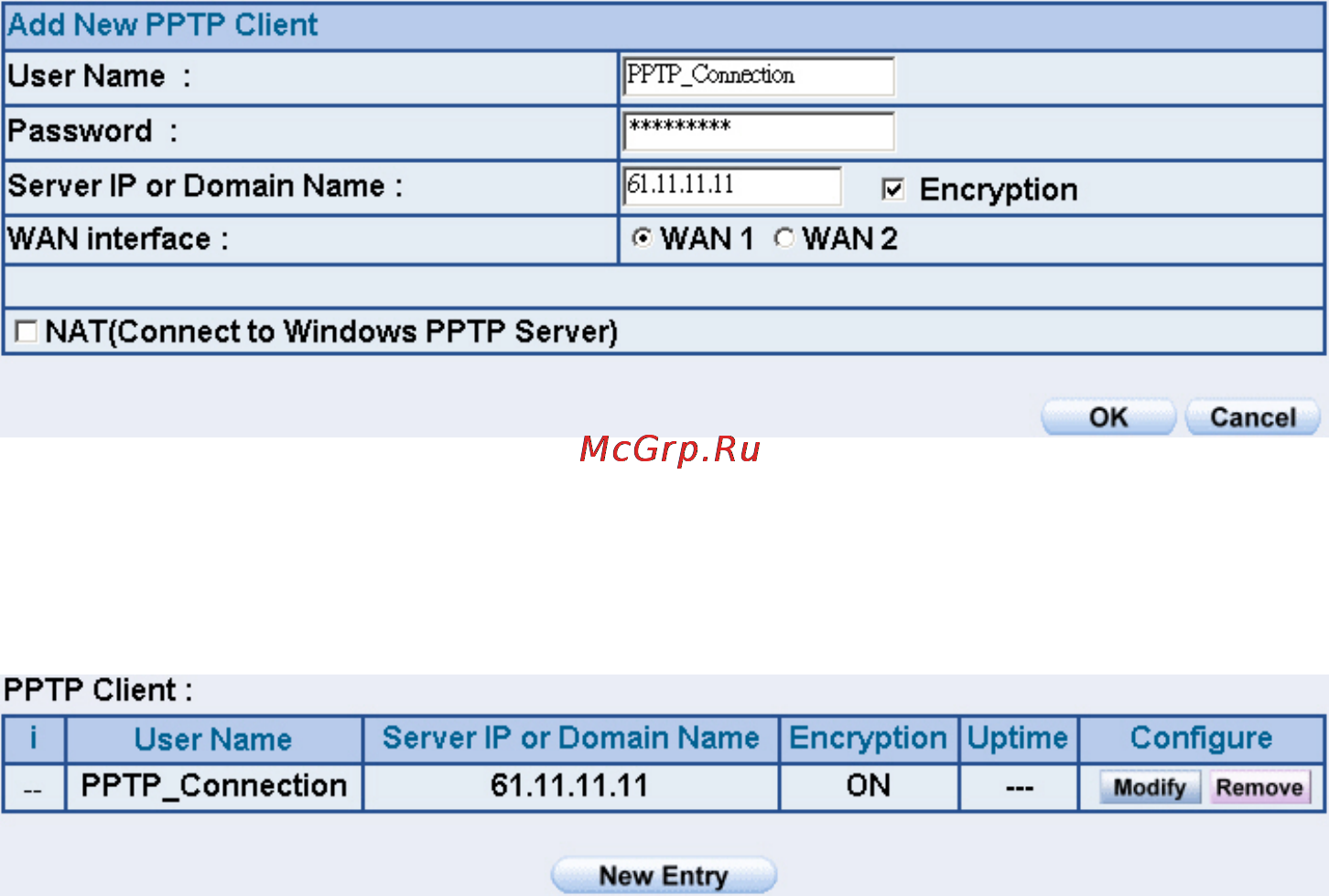

PPTP VPN Client Setting

Complete PPTP VPN Client Setting
