Troubleshooting by Remote Controller Display / LED Display SiBE27-702
184 Troubleshooting

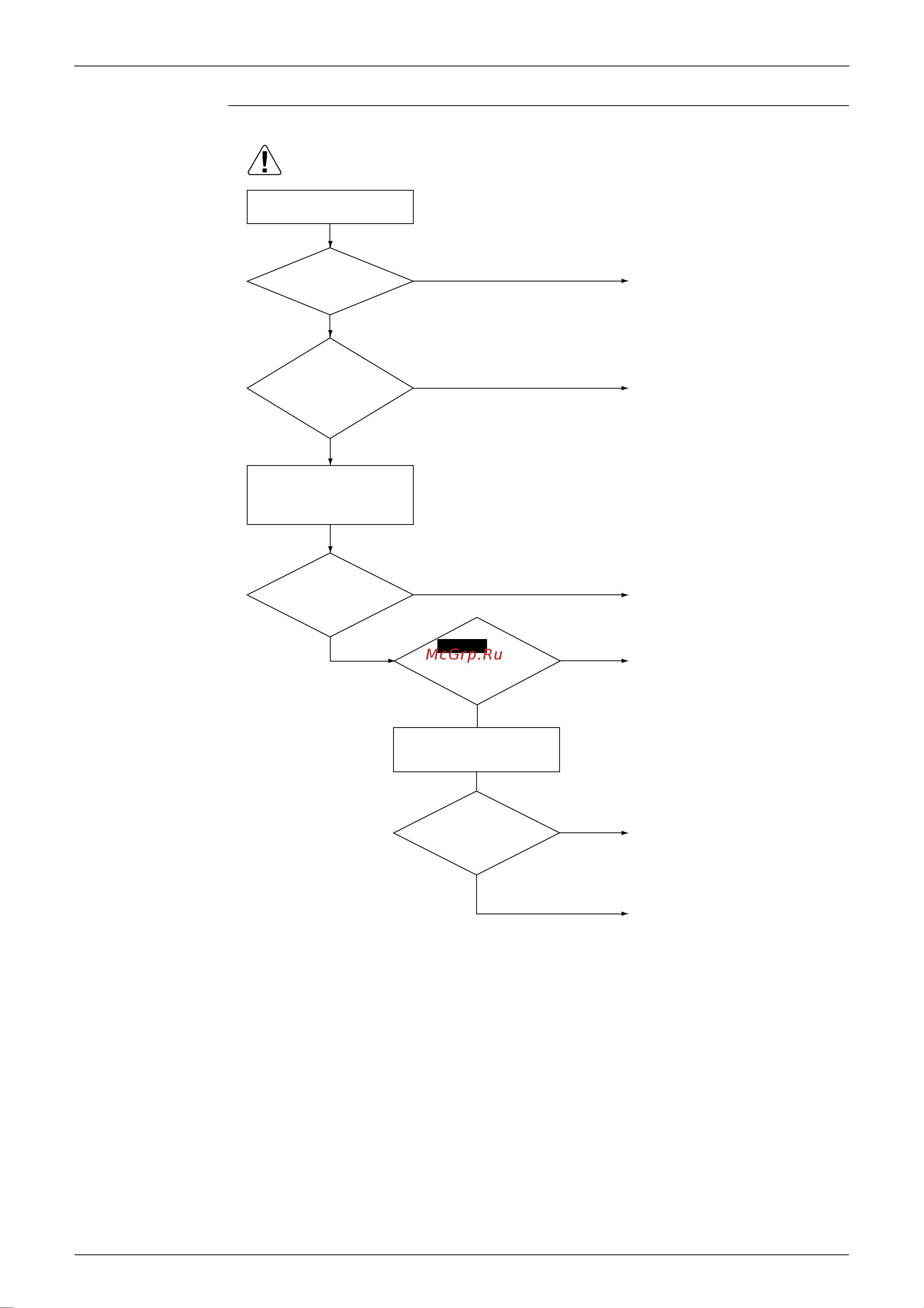

Troubleshooting
Replace HPS with no
continuity.
Turn off the power supply.
Wait for 10 minutes after
compressor stops operating,
then check the following.
Is there
continuity in control and
protection HPS?
Correct the high pressure.
Replace the high pressure
switch (HPS).
NO
YES
Connect correctly.
Are
control and
protection HPS
connected to outdoor unit
PC board?
(Note)
NO
YES
Open the stop valve.
NO
YES
Set the remote controller
and turn on again.
Is the
malfunction code of “
H3”
displayed?
YES
NO
Is high pressure
abnormally high?
YES
NO
Check the installation
conditions.
Is the
stop valve open?
Check 6
(P243)
RZQ71B9, RZQS71·100B7 (1φ):
Replace the outdoor inverter PC
board (A2P).
RZQ100~140B8 (3φ):
Replace the outdoor control PC
board (A1P).
RZQ100~140C7,
RZQS125·140C7 (1φ):
Replace the outdoor PC board
(A1P).
(S2582)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
