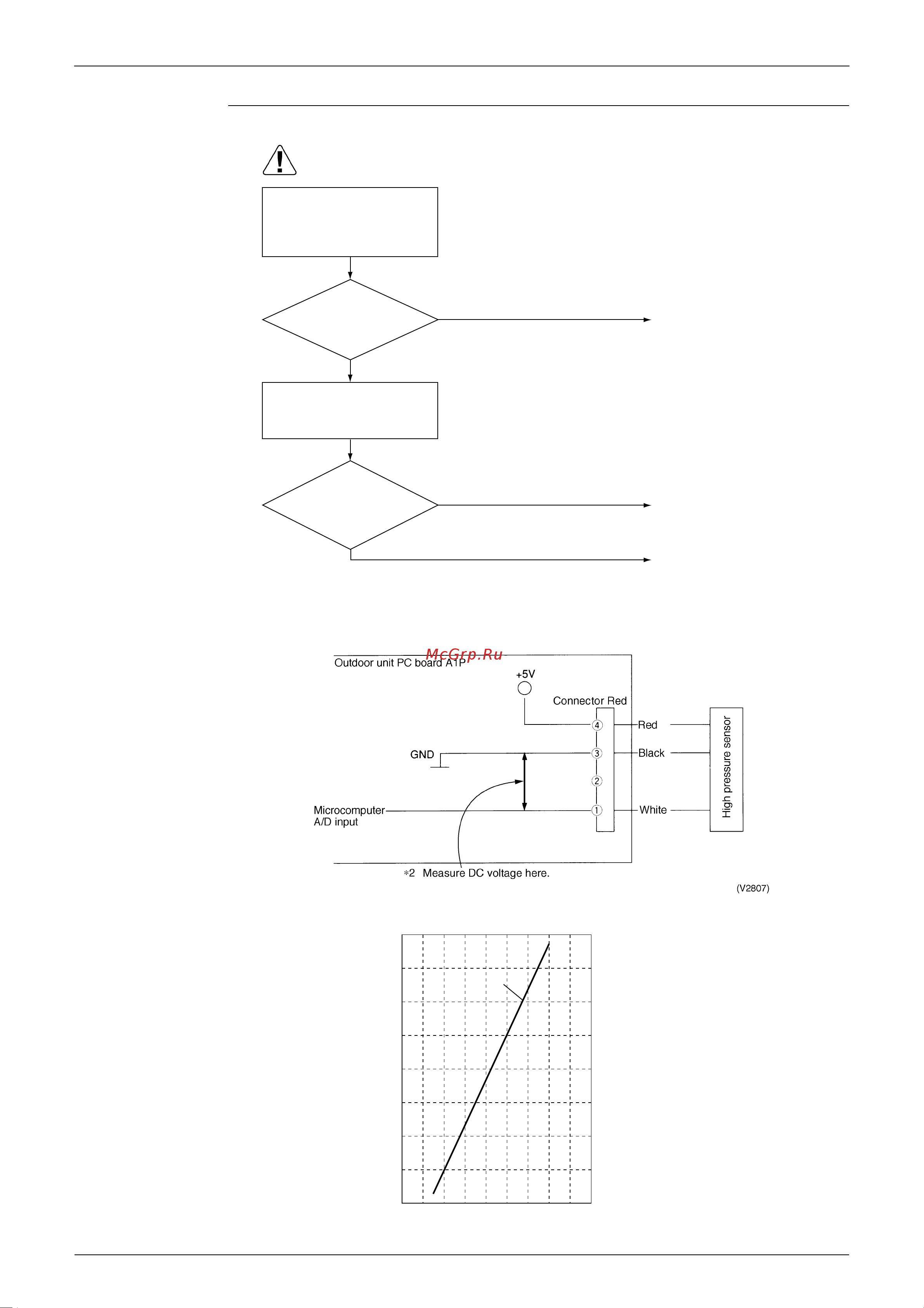

Troubleshooting by Remote Controller Display / LED Display SiBE27-702
206 Troubleshooting
Troubleshooting
*1: Voltage measurement point
*2: “Pressure Sensor”, pressure / voltage characteristics table.
(V2808)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Is the relation
between the pressure and the
voltage normal?
(∗2).
Measure the voltage (V)
between the pins # (2) and
(3) of the above connector
(∗1).
Replace the pressure
sensor (S1NPH).
YES
Replace outdoor unit
PC board (A1P).
Connect correctly.
YES
NO
NO
Is it connected
correctly?
YES
Check if the connector for
the pressure sensor (X17A)
is correctly connected to the
outdoor unit PC board (A1P)
Detected pressure PH (MPa)
Output voltage V
-0.5
-0.5
0
0.5
1.0
2.0
3.0
1.5
2.5
0.5 1.5 2.5 3.501234
VDC
PH
PH= 1.38V-0.69
PH: Detected pressure (MPa)
V : Output Voltage (V)
