Daikin RZQS100B7V3B [299/344] Connectors the table below describes the pc board connectors
![Daikin RZQS100B7V3B [299/344] Connectors the table below describes the pc board connectors](/views2/1769683/page299/bg12b.png)
PCB Layout SiBE27-702
286 Appendix
Inverter PC board
(A2P)

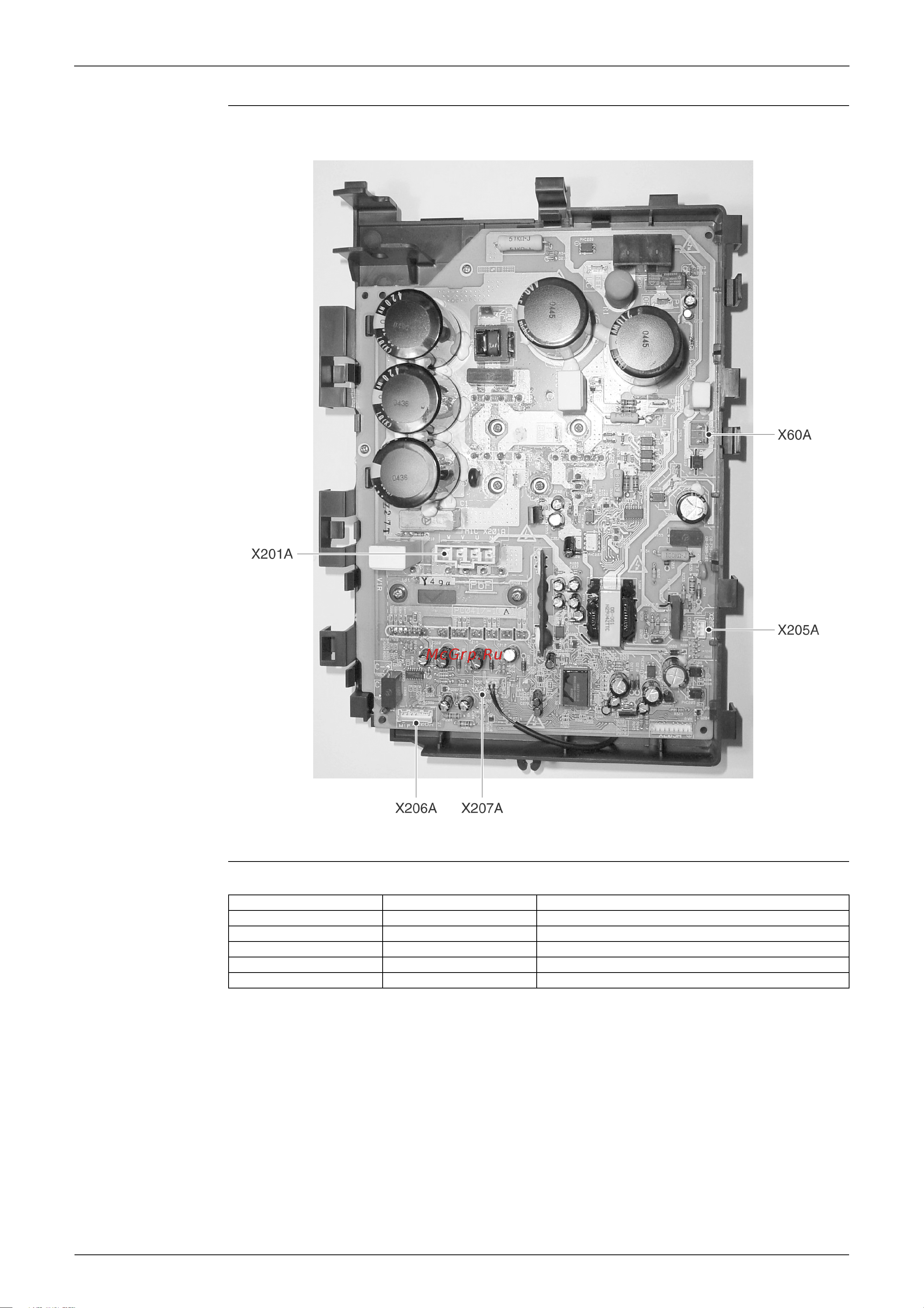

The illustration below shows the PC board connectors.
Connectors The table below describes the PC board connectors.
Connector Connected to Description
X60A S1PH High pressure switch
X201A M1C Compressor motor
X205A X3A (on control PC board)
X206A M1F Fan motor
X207A R5T Power module thermistor
