Troubleshooting by Remote Controller Display / LED Display SiBE27-702
246 Troubleshooting

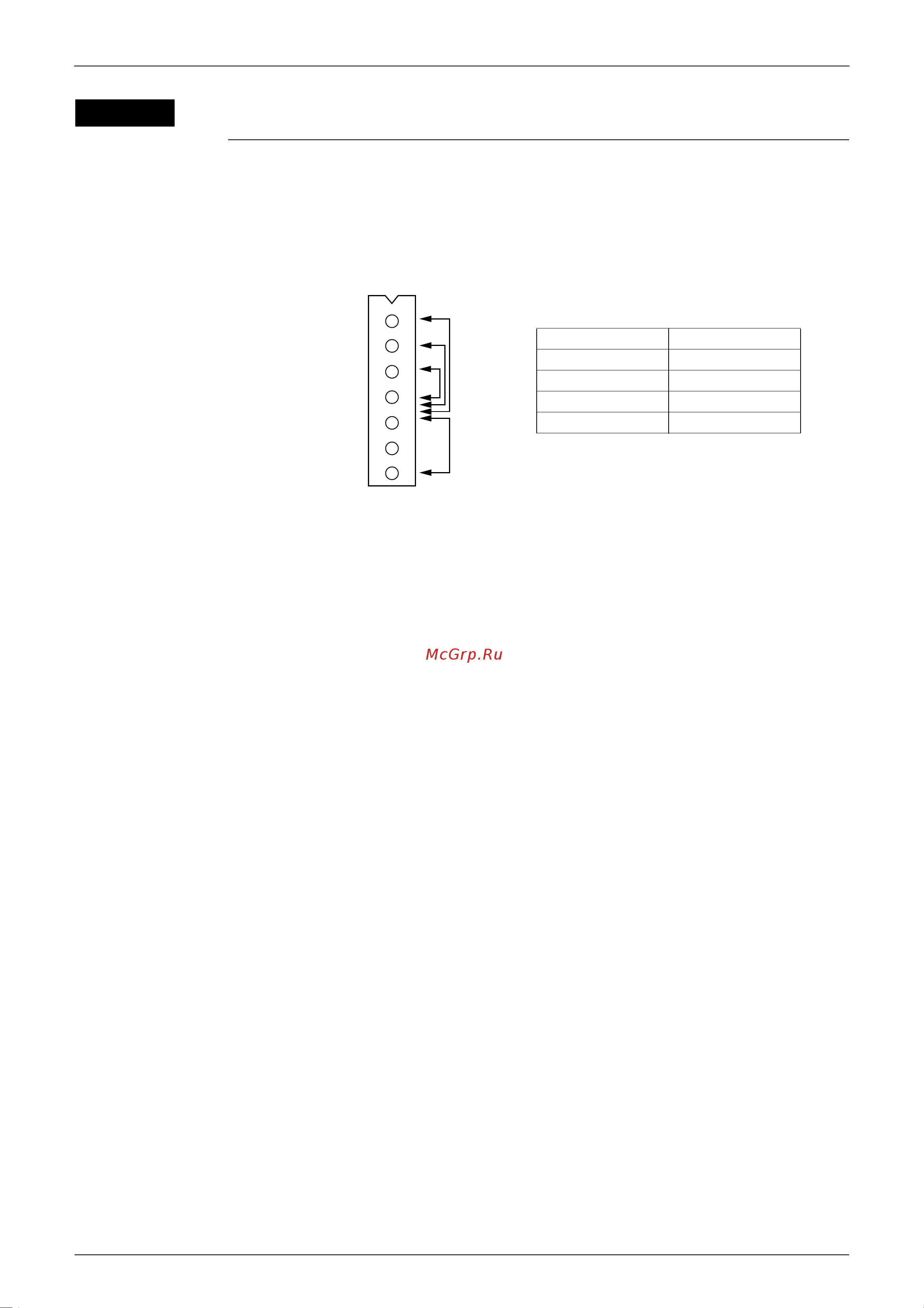

Outdoor Unit: Fan Motor Signal Line
For RZQ(S)71~140 models
(1) Turn the power supply off.
(2) With the fan motor connector disconnected, measure the resistance between each pin, then
make sure that the resistance is more than the value mentioned in the following table.
Check No.9
Measurement point Judgment
1 - 4 1MΩ or more
2 - 4 100kΩ or more
3 - 4 100Ω or more
4 - 7 100k
Ω
or more
1 White
2 Orange
3 Brown
4 Blue
5
6
7 Red
GND
(S2675)
