Troubleshooting by Remote Controller Display / LED Display SiBE27-702
188 Troubleshooting

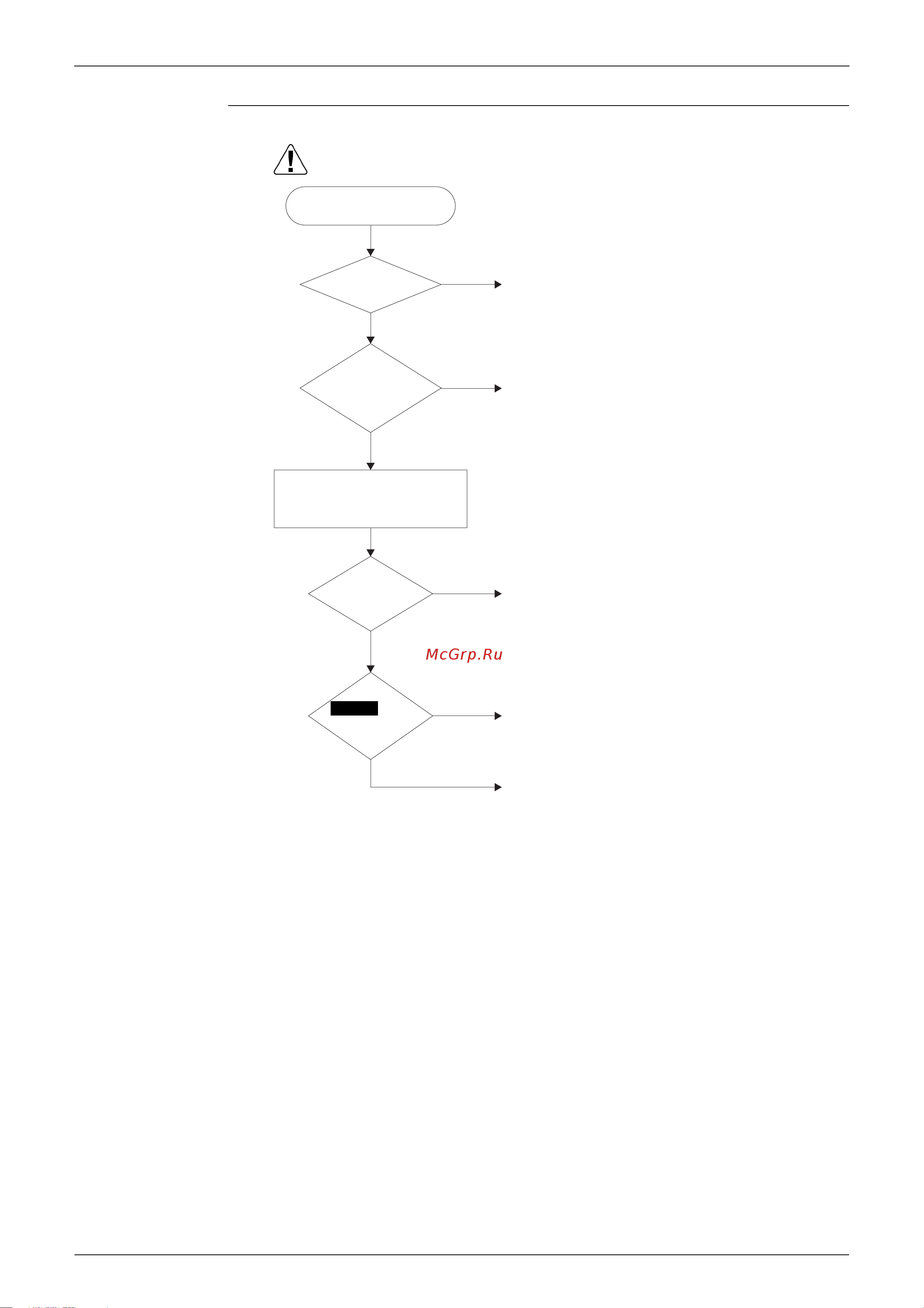

Troubleshooting
· Turn the power OFF and back
ON after 2 or 3 minutes.
· Check the continuity of the
LPS for control and safety.
Is the stop
valve open?
Does
this LPS have
continuity?
Check the
installation conditions.
YES
Is the
LPS correctly
connected to the
outdoor unit PC
board?
YES
YES
OK
NO
NO
NO
NO
Low pressure is
abnormally
low.
Open the stop valve.
Connect correctly.
Replace LPS without continuity.
Fault in refrigerant piping.
Replace the outdoor control PC
board. (A1P)
Check 7
(P244)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
