SiBE27-702 Troubleshooting by Remote Controller Display / LED Display
Troubleshooting 201
5.24 “H3” Malfunctioning HPS System
Remote
Controller
Display
H3
Applicable
Models
RZQ(S)71~140
Method of
Malfunction
Detection
The protection device circuit checks continuity in the high pressure switch.
Malfunction
Decision
Conditions
When there is no continuity in the high pressure switch during compressor stops operating.
Supposed
Causes
Incomplete high pressure switch
Disconnection in high pressure switch harness
Faulty connection of high pressure switch connector
Faulty outdoor unit PC board
Disconnected lead wire

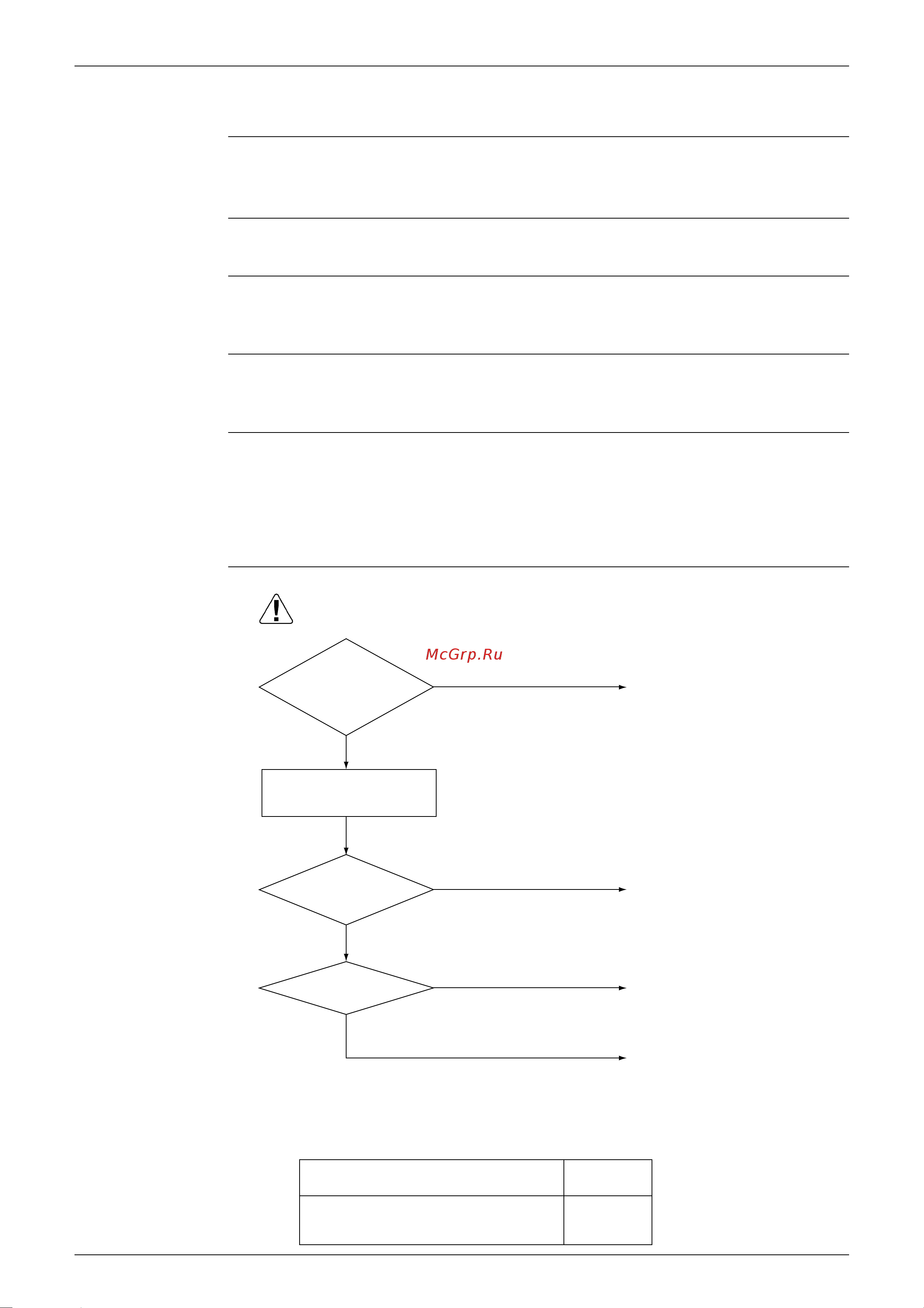

Troubleshooting
Wait for 10 minutes after
the unit stops operating,
then check the following.
Connect correctly.
Replace HPS with no
continuity.
Resistance in normal
operation :
10Ω or less
Replace the lead wire.
Is there
continuity in each
protection HPS?
NO
Is
protection HPS
connector (*1) correctly
connected to outdoor
unit PC board?
NO
YES
YES
YES
Is there
continuity in lead
wire?
NO
*1 Connector symbol
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
RZQ71B9, RZQS71·100B7 (1φ):
Replace the outdoor inverter PC
board (A2P).
RZQ100~140B8 (3φ):
Replace the outdoor control PC
board (A1P).
RZQ100~140C7,
RZQS125·140C7 (1φ):
Replace the outdoor PC board
(A1P).
RZQ71B9,
RZQS71·100B7 (1φ)
RZQ100 ~ 140C7,
RZQS125·140C7 (1φ),
RZQ100 ~ 140B8 (3φ)
X60A (A2P)
X32A (A1P)
