SiBE27-702 General Functionality
Functional Description 55

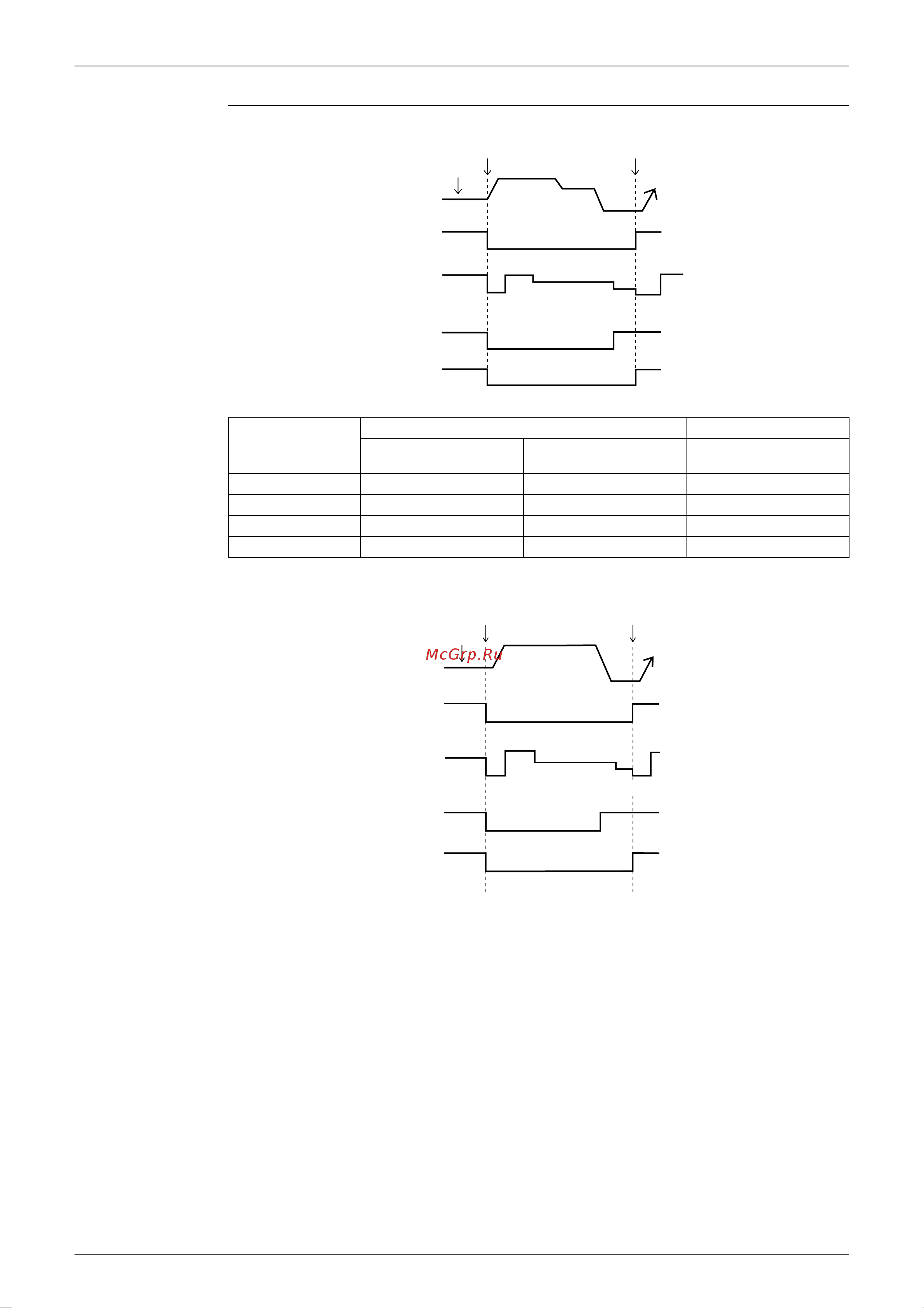

Defrost control
RZQ71B9, RZQS71·100B7V3B (1 phase), RZQ100~140B8W1B (3 phase)
RZQ100~140C7, RZQS125·140C7V1B (1 phase)
1 phase 3 phase
RZQ71B9·
RZQS71B7V1B
RZQS100B7V1B RZQ100~140B8W1B
A Hz 162 Hz 155Hz 155 Hz
B Hz 122 Hz 155 Hz 155 Hz
C Hz 48 Hz 72 Hz 72 Hz
A pls 300 pulses 250 pulses 250 pulses
Defrosting start
Previous control
Compressor
4-way valve
Motorized valve
Outdoor unit fan
Indoor fan
A Hz
A pls
(wet protection control)
0 pls (5~60 seconds)
0 pls (15 seconds)
ON
OFF
OFF
OFF
ON
ON
ON
ON
ON
150
pls
B Hz
C Hz
Defrosting complete
OFF
155Hz
ON ON
OFF
ON ON
OFF
ON ON
0Hz
Defrosting start
Defrosting complete
Compressor
4-way value
Electronic
expansion valve
Outdoor unit fan
Indoor unit fan
150
pls
250 pls
previous control
(wet protection control)
0 pls (5~60 sec.)
0 pls (5 sec.)
