SiBE27-702 Frequency Regulating Functions
Functional Description 81

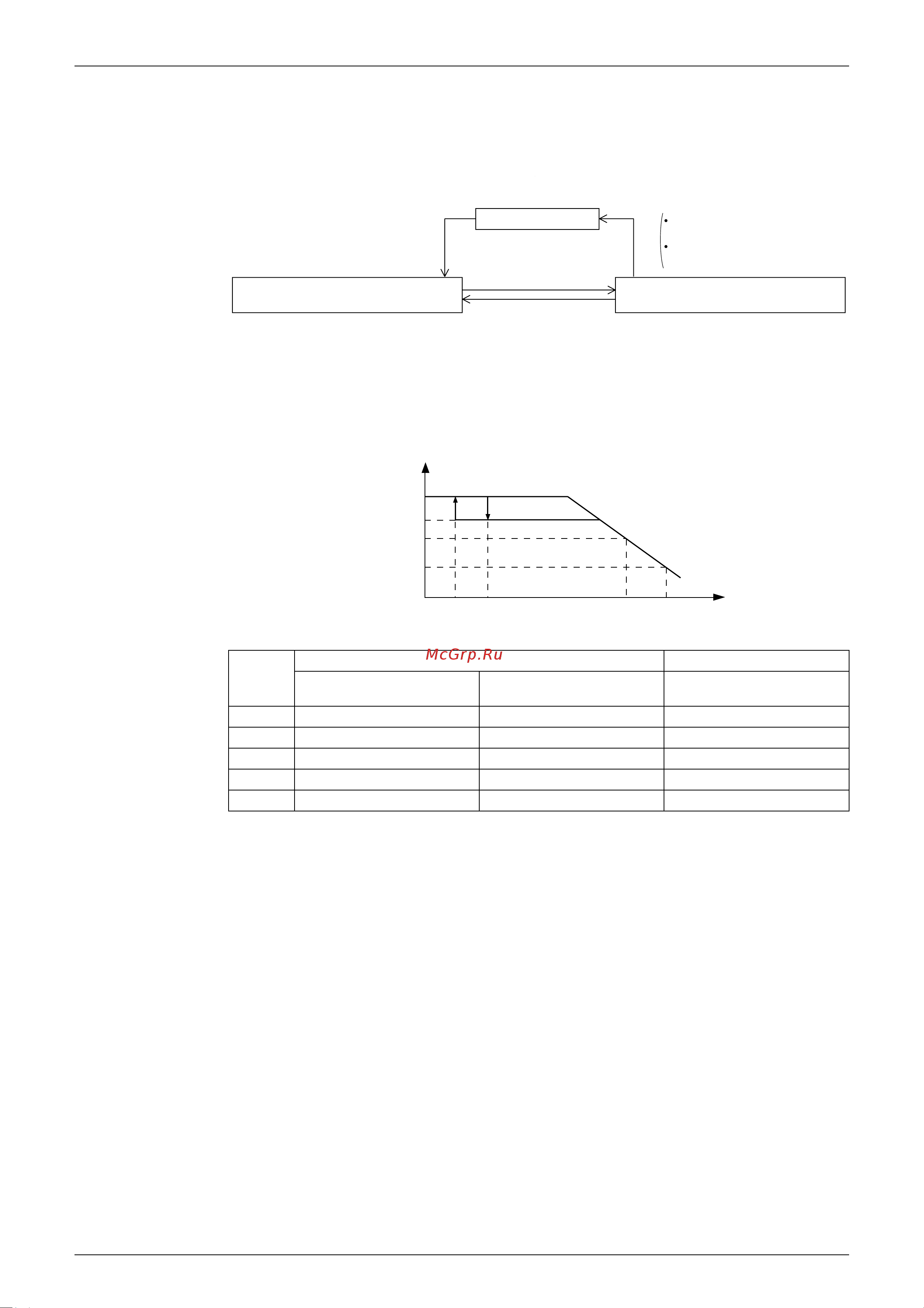

4.9 Protection Control by Overall Current
Monitors the overall current and restricts the upper limit compressor operating frequency to
prevent circuit breakers from exceeding the rated capacity.
Upper limit current (A)
Takes the following values depending on the outside temperature.
Also varies depending on model.
1 phase 3 phase
RZQ71B9,
RZQS71·100B7V3B
RZQ100~140C7,
RZQS125·140C7V1B
RZQ100~140B8W1B
A 16.5 A 24.0 A 13.5 A
B 16.5 A 24.0 A 10.0 A
C 14.2 A 23.0 A 8.5 A
D 8.4 A 16.0 A 3.0 A
E 6 (sec.) 10 (sec.) 6 (sec.)
Normal operation
Outdoor unit current ≤ upper limit
current value
Upper limit compressor operating
frequency = Maximum frequency
Outdoor unit current ≤ upper
limit current value
Outdoor unit current
>upper limit current value
Upper limit compressor operating frequency
–1 step/E sec.
Upper limit compressor operating frequency
+1 step/2 min
Outdoor unit current>upper
limit current value
&
Current A
Current C
Current B
Current D
25
Ta
28 43 50
Overall current
(A)
Outdoor air temp. (˚C)
