RZQ100~140C7, RZQS125·140C7V1B SiBE27-702
306 Removal Procedure
2. RZQ100~140C7, RZQS125·140C7V1B
2.1 Removal of Outside Panels
Procedure Warning Be sure to commence the disassembling work after 10 minutes or
more elapsed from all power supplies have been turned off.
Step
Procedure Points
1
For the suction grille,
pull the lower parts (in 7
places) frontward,
disengage the hooks at
the top of the grille with
a slotted screwdriver,
and then push the
overall grille downward
to disassemble it.
2
For the front panel (1),
unscrew a single
mounting screw and
then push this panel
downward to remove it.
3
For the top panel,
unscrew the eight
mounting screws and
then remove this panel.
4
For the front panel (1),
unscrews the seven
mounting screws and
the remove this panel.
5
For the front piping
cover, unscrew a single
mounting screw and
then remove this panel.
6
For the side piping
cover, unscrew the four
mounting screws and
then remove this panel.
7
For the side rear panel,
unscrew the five
mounting screws and
then remove this panel.

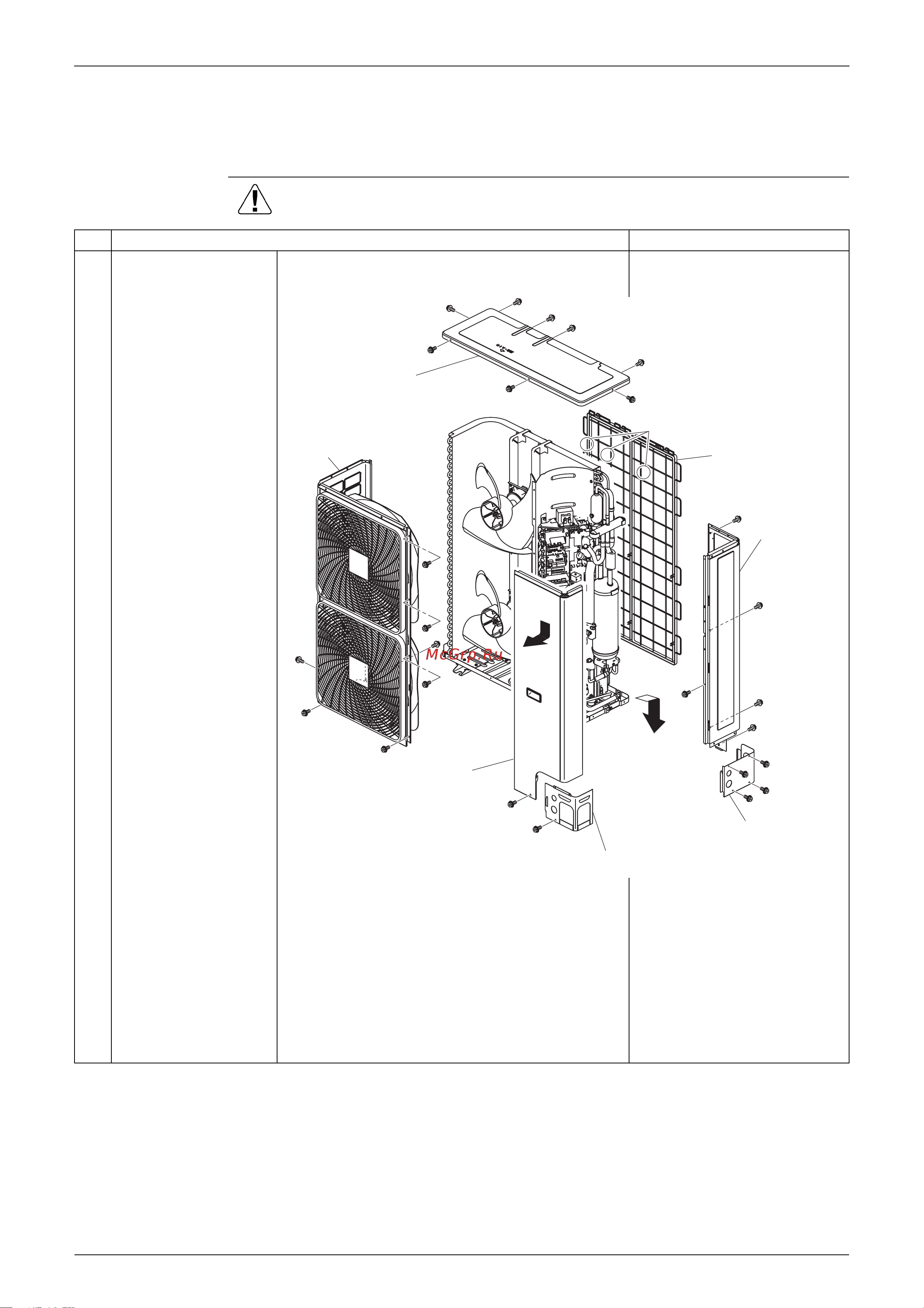

Top panel
Front panel (1)
Hooks
Suction grille
Side piping cover
Side rear panel
Front panel (2)
Front piping cover
