Troubleshooting by Remote Controller Display / LED Display SiBE27-702
234 Troubleshooting
5.44 “U8” Malfunction of Transmission between MAIN Remote
Controller and SUB Remote Controller
Remote
Controller
Display
U8
Applicable
Models
All models of indoor units
Error generation The error is generated when, in case of controlling with two remote controllers, the
microprocessor detects that the transmission between the indoor unit and the remote controllers
(MAIN and SUB) is not normal over a certain amount of time.
Supposed
Causes
The possible causes are:
Transmission error between MAIN remote controller and SUB remote controller
Connection among SUB remote controllers
Malfunctioning remote controller PC board.

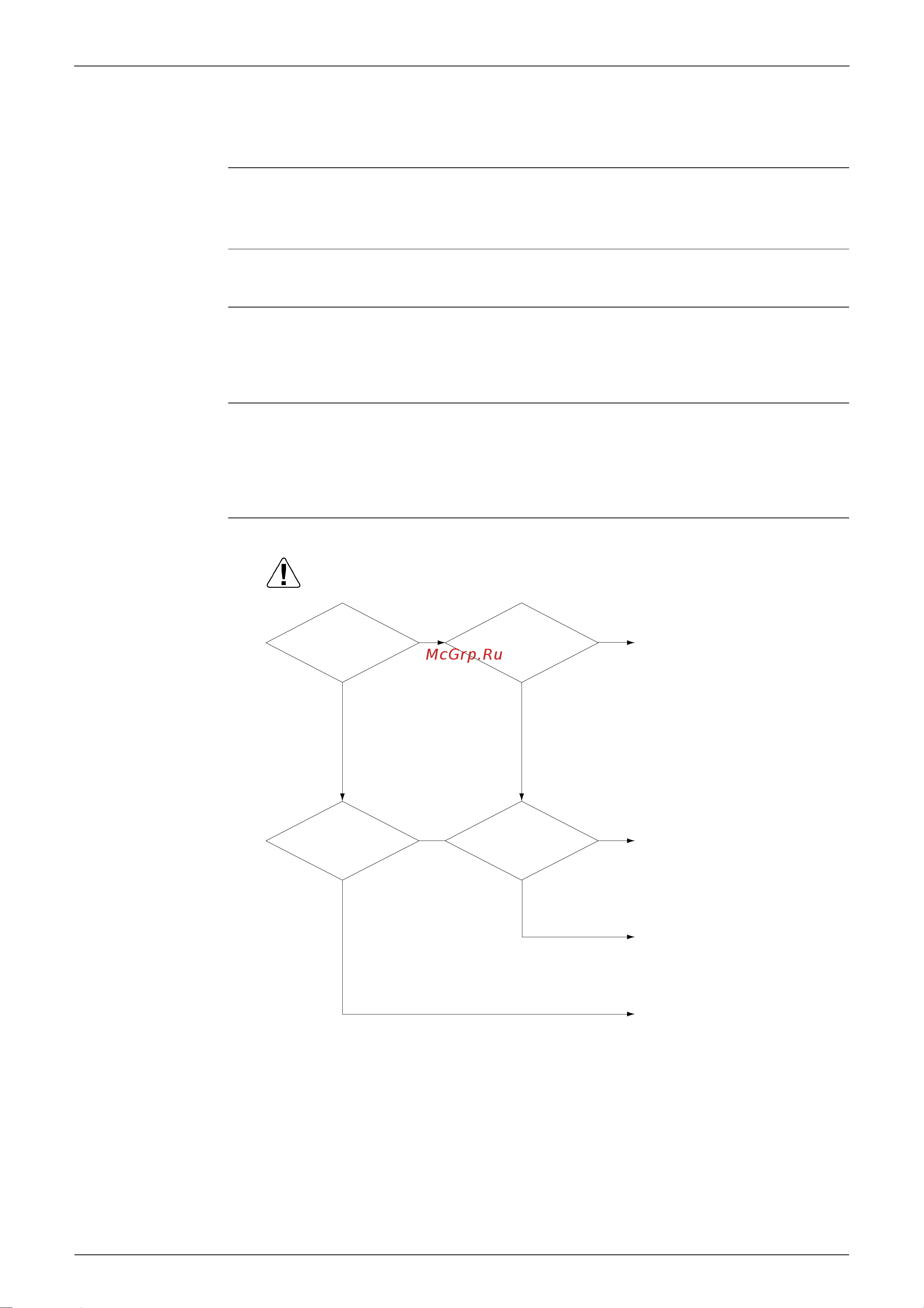

Troubleshooting
Controlling
with 2-remote
controller
Both SS-1
switches on remote
controllers are turned
to SUB
Is there
continuity in remote
controller wiring?
SS-1
switch on remote
controller PC board is
turned to MAIN
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Turn the SS-1 switch of one
remote controller to MAIN.
Turn OFF the power supply,
and restart operation.
Turn OFF the power once and
restart operation.
Replace remote controller PC
board if any error is
generated.
Replace the remote controller
wiring.
Turn the SS-1switch of one
remote controller to MAIN.
Turn OFF the power supply,
and restart operation.
NO
NO
YES
NO
YES YES
YES
NO
