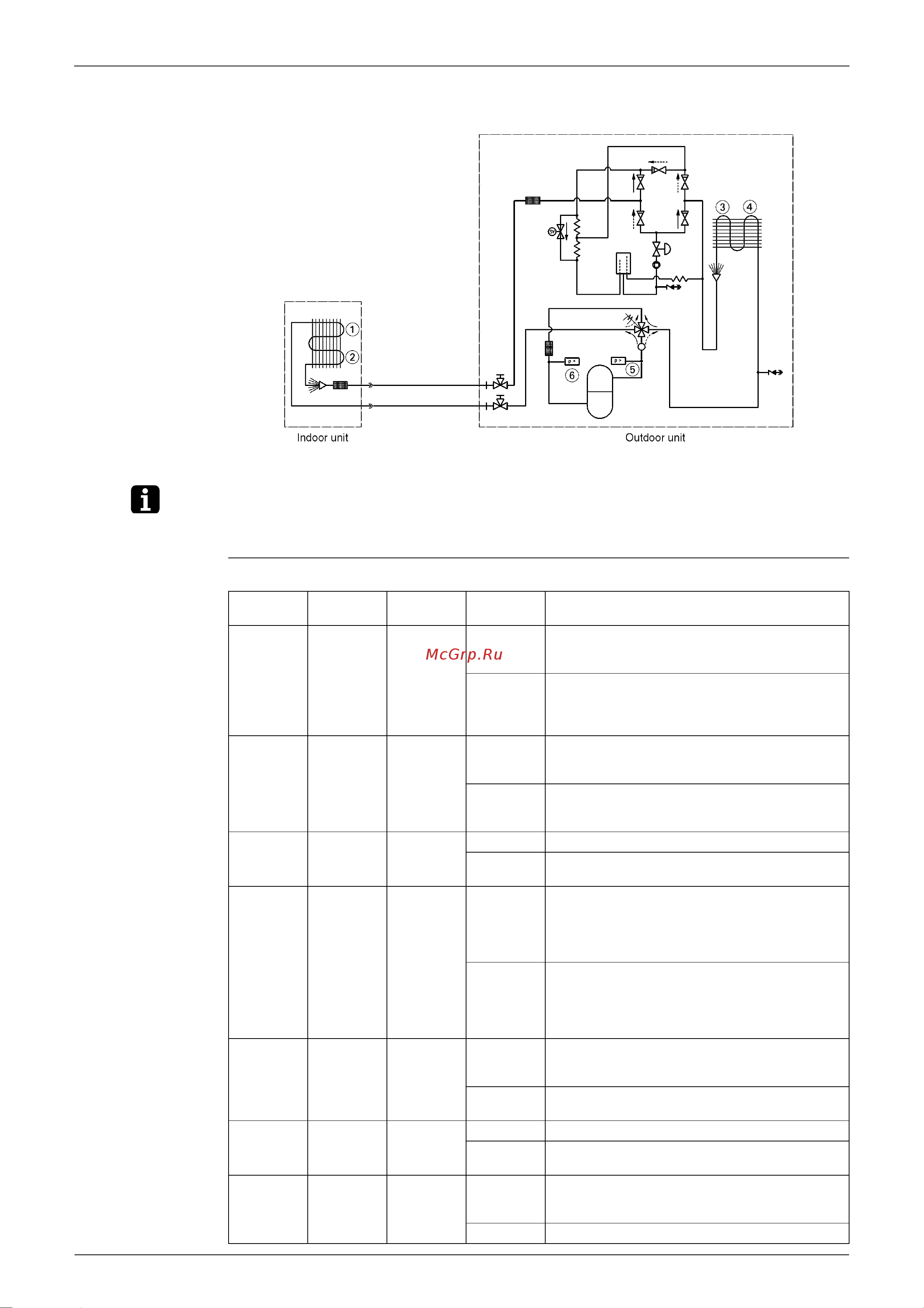

General Functionality SiBE27-702
38 Functional Description
RZQ100~140B8W1B (Three phase)
Note: Sensor R3T on indoor coil of FCQ35~60, FFQ35~60, FBQ35~60 & FHQ35~60 is not used
when the indoor units are connected to RZQ outdoor units.
Functions of the
thermistors
Thermistor
Location
Wiring
symbol
Mode Function
1 Indoor
heat
exchanger
R2T Cooling Compressor frequency control (target Te)
Inverter current protection control
Freeze-up control
Heating Compressor frequency control (target Tc)
Inverter current protection control
Hot start control
Peak cut-off
2 Indoor air
return
R1T Cooling Thermostat control
PMV control
General frequency control
Heating Thermostat control
PMV control
General frequency control
3 Outdoor
heat
exchanger
R2T Cooling Inverter current protection control
Heating Inverter current protection control
Defrost control
4 Outdoor
ambient
R1T Cooling Outdoor fan speed control
PMV control
Pressure difference control
Overall current protection control
Preheating operation control (RZQ71)
Heating Defrost control
PMV control
Forced thermostat OFF
Overall current protection control
Preheating operation control (RZQ71)
5 Discharge
pipe
R3T Cooling Discharge superheat control
Expansion valve control
Crankcase heater / preheating control
Heating Expansion valve control
Crankcase heater / preheating control
6 Suction
pipe
R4T Cooling Expansion valve control (SH control)
Heating Expansion valve control (SH control)
Suction pipe superheat protection control
7 Inverter
power
module
R5T Cooling Outdoor fan speed control
Inverter fin temperature control
Pressure difference control
Heating Inverter fin temperature control
