SiBE27-702 Dimensions
Appendix 257
1.2 RZQ100~140C, RZQS125·140C7V1B (Single phase)

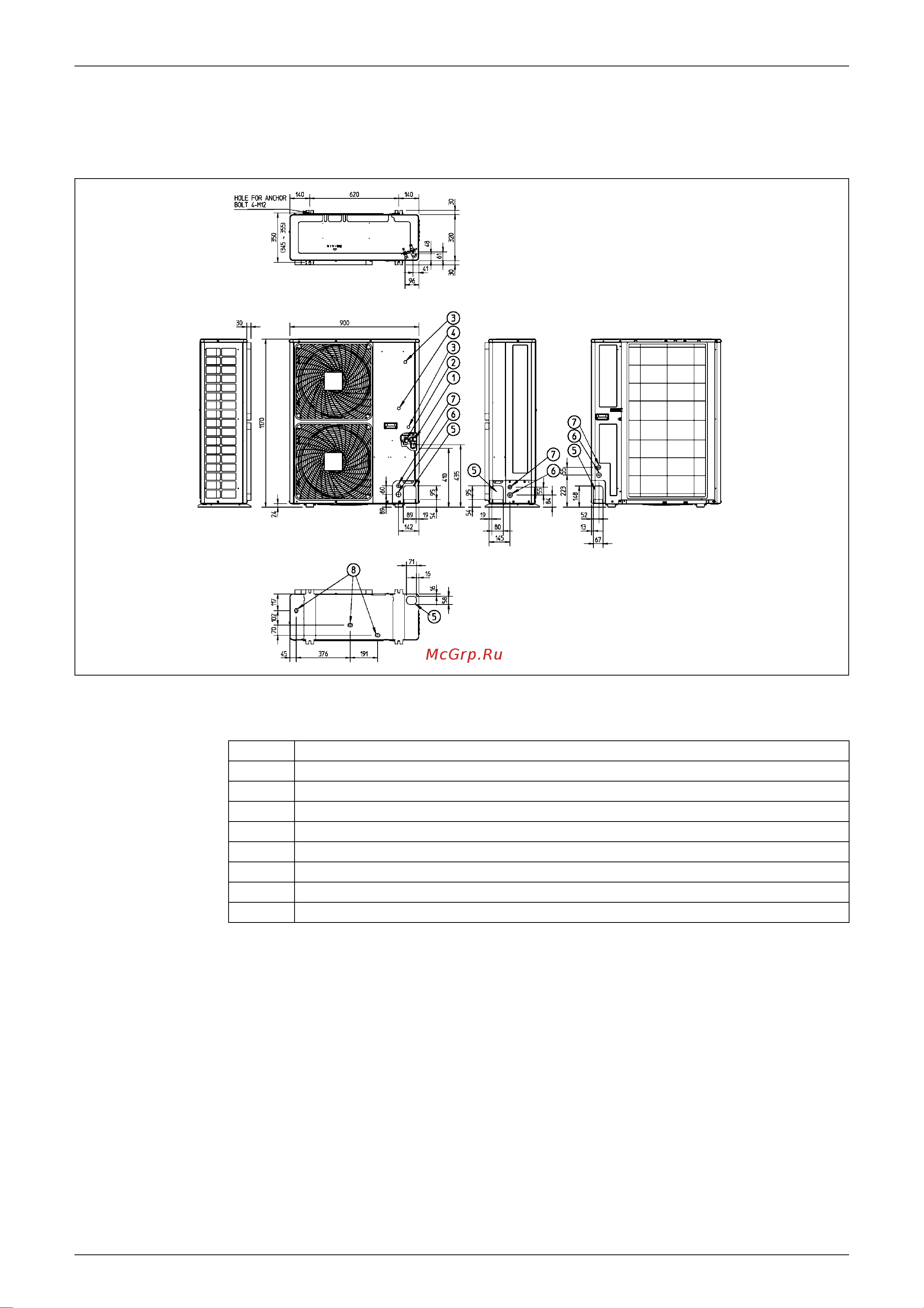

1.2.1 Outlook and Dimensions
The illustration below shows the outlook and the dimensions of the unit (mm).
1.2.2 Components
The table below contains the different components of the unit.
No. Component
1 Gas pipe connection φ15.9 flare
2 Liquid pipe connection φ9.5 flare
3 Service port (inside the unit)
4 Grounding terminal M5 (inside the switch box)
5 Refrigerant piping intake
6 Power supply wiring intake (knock out hole φ34)
7 Control wiring intake (knock out hole φ27)
8 Drain outlet
