SiBE27-702 RZQ71B9, RZQS71·100B7V3B / RZQ100~140B8W1B
Removal Procedure 301

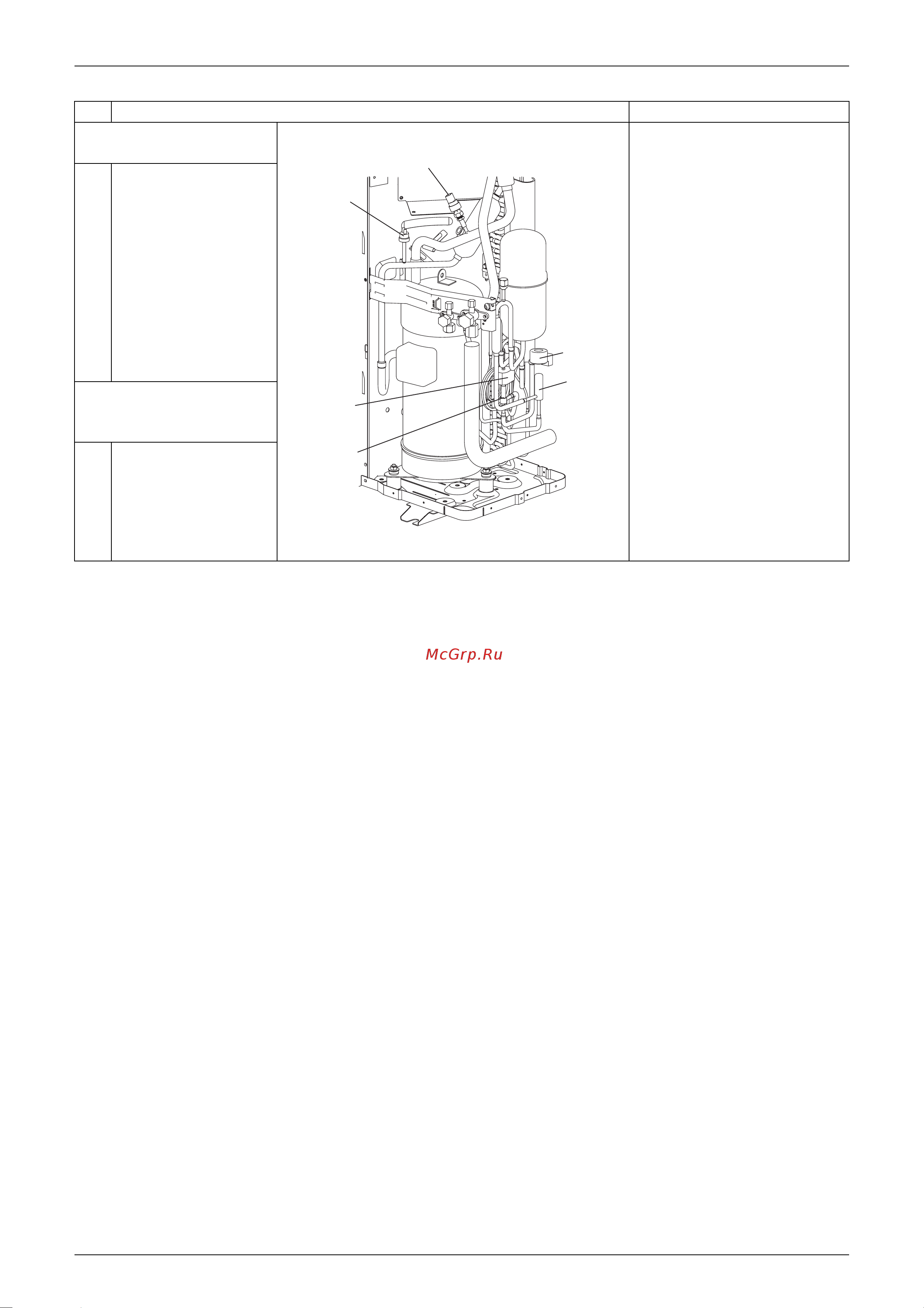

4. Remove the solenoid
valve
RZQ100~140B8W1B
1
Unscrew a single screw
from the coil of the
solenoid valve and then
remove this coil.
2
Strip off the brazed
sections in two places
on the main unit of the
solenoid valve and then
remove this body.
5. Remove the low pressure
sensor (Only on B Series
three phase models)
1
Disconnect the
terminals from the low
pressure sensor and
then strip off the brazed
section on the switch.
Step
Procedure Points
Low pressure sensor
High
pressure
switch
Coil of
electronic
expansion
valve
Body of
electronic
expansion
valve
Coil of
solenoid
valve
Body of
solenoid
valve
