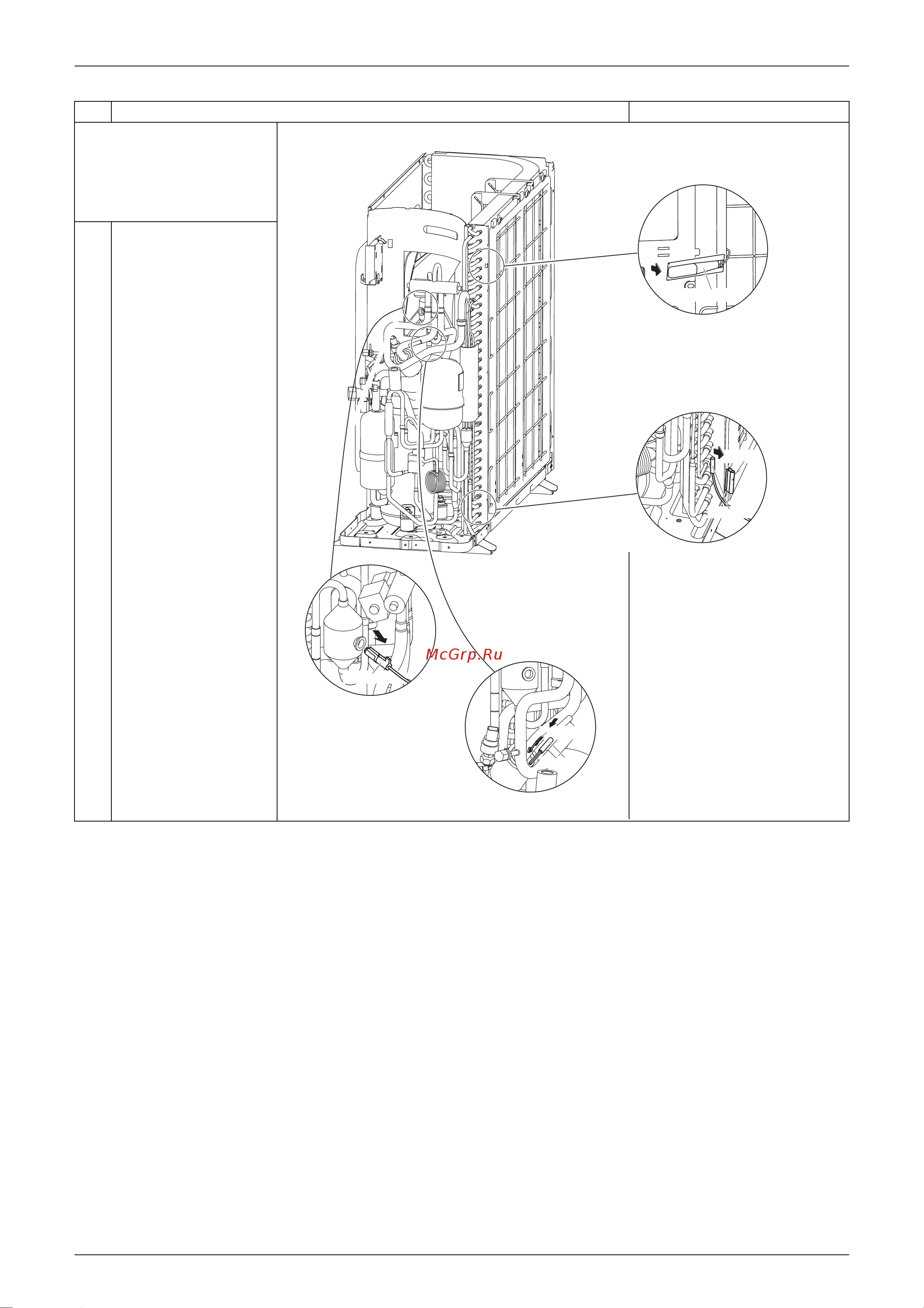

SiBE27-702 RZQ71B9, RZQS71·100B7V3B / RZQ100~140B8W1B
Removal Procedure 303
Remove the front and top
panels in accordance with
the Removal Procedure
for Outside Panel and
others
RZQ100~140B8W1B
1
In order to remove the
discharge pipe
thermistor, pinch the
mounting spring and
pull out this thermistor.
2
For the heat exchange
thermistor, pull the
clamp frontward and
then remove this
thermistor.
3
In order to remove the
outdoor air thermistor,
pull out this thermistor
frontward and then slide
it to the right.
4
For the suction pipe
thermistor, pull this
thermistor frontward
and then remove it.
Step
Procedure Points
Discharge pipe thermistor
Thermistor
Suction pipe thermistor
Heat exchange thermistor
Mounting spring
Thermistor
Clamp
Outdoor air thermistor
Thermistor
Thermistor
