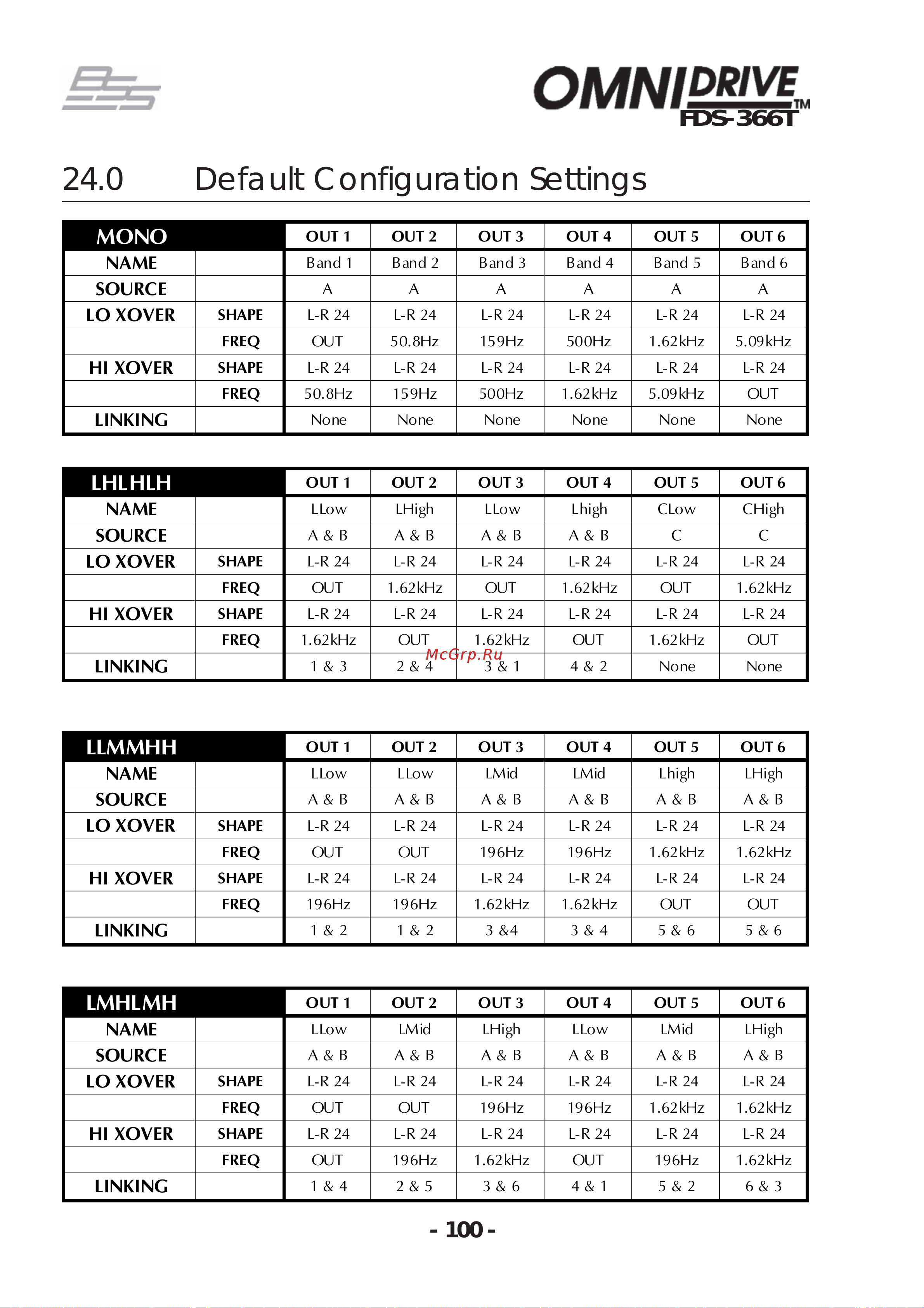

BSS 366T OmniDrive [100/112] Default configuration settings
![BSS 366T OmniDrive [100/112] Default configuration settings](/views2/2008120/page100/bg64.png)
- 100 -
FDS-366T
LHLHLH
OUT 1 OUT 2 OUT 3 OUT 4 OUT 5 OUT 6
NAME
LLow LHigh LLow Lhigh CLow CHigh
SOURCE
A & B A & B A & B A & B C C
LO XOVER
SHAPE L-R 24 L-R 24 L-R 24 L-R 24 L-R 24 L-R 24
FREQ OUT 1. 62kHz OUT 1.62 kHz OUT 1.62kHz
HI XOVER
SHAPE L-R 24 L-R 24 L-R 24 L-R 24 L-R 24 L-R 24
FREQ 1.62kHz OUT 1.62kHz OUT 1.62kHz OUT
LINKING
1 & 3 2 & 4 3 & 1 4 & 2 None None
LLMMHH
OUT 1 OUT 2 OUT 3 OUT 4 OUT 5 OUT 6
NAME
LLow LLow LMid LMid Lhigh LHigh
SOURCE
A & B A & B A & B A & B A & B A & B
LO XOVER
SHAPE L-R 24 L-R 24 L-R 24 L-R 24 L-R 24 L-R 24
FREQ OUT OUT 196Hz 196Hz 1.62kHz 1.62kHz
HI XOVER
SHAPE L-R 24 L-R 24 L-R 24 L-R 24 L-R 24 L-R 24
FREQ 196Hz 196Hz 1.62kHz 1.62kHz OUT OUT
LINKING
1 & 2 1 & 2 3 &4 3 & 4 5 & 6 5 & 6
LMHLMH
OUT 1 OUT 2 OUT 3 OUT 4 OUT 5 OUT 6
NAME
LLow LMid LHigh LLow LMid LHigh
SOURCE
A & B A & B A & B A & B A & B A & B
LO XOVER
SHAPE L-R 24 L-R 24 L-R 24 L-R 24 L-R 24 L-R 24
FREQ OUT OUT 196Hz 196Hz 1.62kHz 1.62kHz
HI XOVER
SHAPE L-R 24 L-R 24 L-R 24 L-R 24 L-R 24 L-R 24
FREQ OUT 196Hz 1.62kHz OUT 196Hz 1.62kHz
LINKING
1 & 4 2 & 5 3 & 6 4 & 1 5 & 2 6 & 3
MONO
OUT 1 OUT 2 OUT 3 OUT 4 OUT 5 OUT 6
NAME
Band 1 Band 2 Band 3 Band 4 Band 5 Band 6
SOURCE
AAAAAA
LO XOVER
SHAPE L-R 24 L-R 24 L-R 24 L-R 24 L-R 24 L-R 24
FREQ OUT 50.8Hz 159Hz 500Hz 1.62kHz 5.09kHz
HI XOVER
SHAPE L-R 24 L-R 24 L-R 24 L-R 24 L-R 24 L-R 24
FREQ 50.8Hz 159Hz 500Hz 1.62kHz 5.09kHz OUT
LINKING
None None None None None None
24.0 Default Configuration Settings
