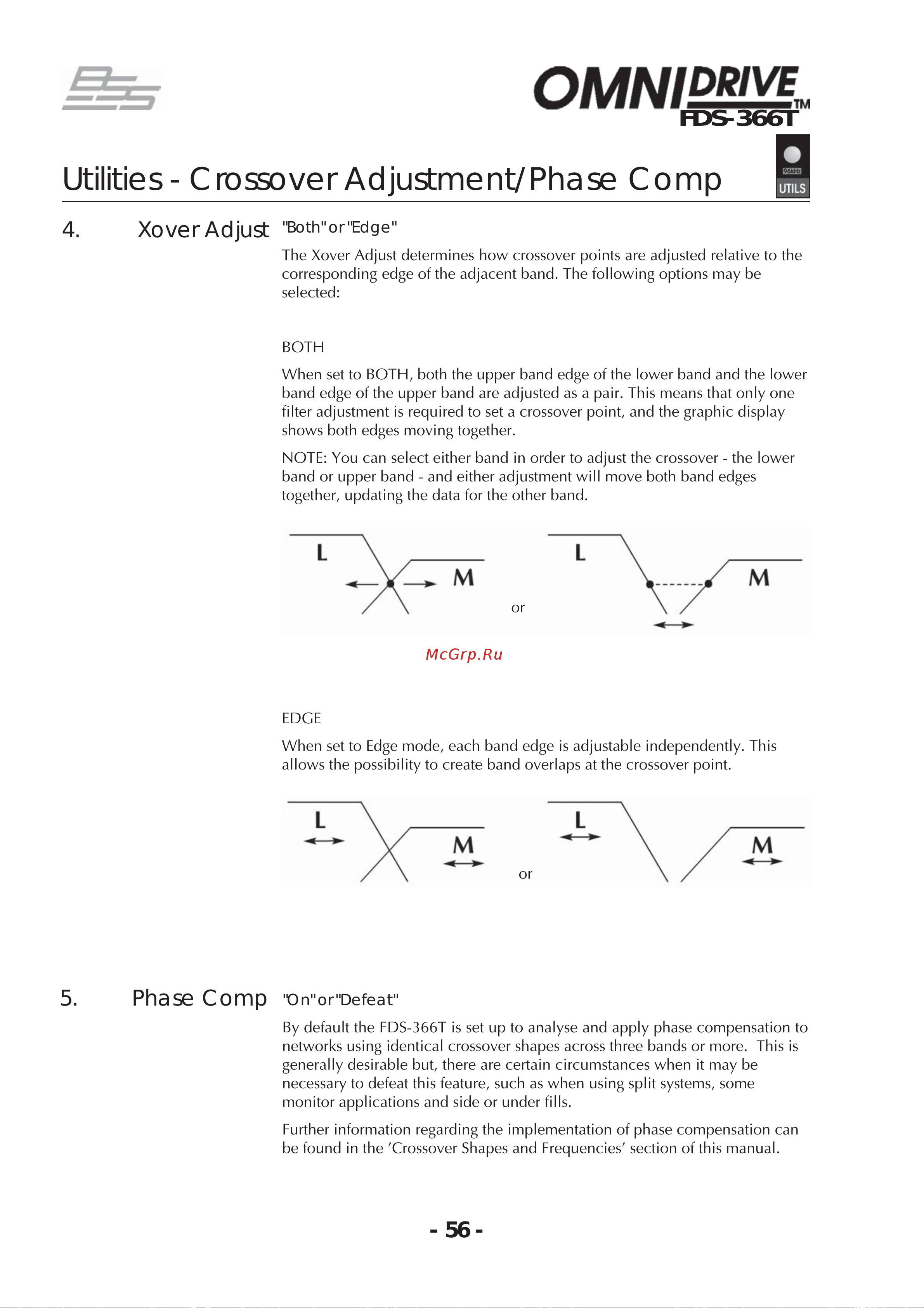

- 56 -
FDS-366T
"Both" or "Edge"
The Xover Adjust determines how crossover points are adjusted relative to the
corresponding edge of the adjacent band. The following options may be
selected:
BOTH
When set to BOTH, both the upper band edge of the lower band and the lower
band edge of the upper band are adjusted as a pair. This means that only one
filter adjustment is required to set a crossover point, and the graphic display
shows both edges moving together.
NOTE: You can select either band in order to adjust the crossover - the lower
band or upper band - and either adjustment will move both band edges
together, updating the data for the other band.
EDGE
When set to Edge mode, each band edge is adjustable independently. This
allows the possibility to create band overlaps at the crossover point.
4. Xover Adjust
Utilities - Crossover Adjustment/Phase Comp
"On" or "Defeat"
By default the FDS-366T is set up to analyse and apply phase compensation to
networks using identical crossover shapes across three bands or more. This is
generally desirable but, there are certain circumstances when it may be
necessary to defeat this feature, such as when using split systems, some
monitor applications and side or under fills.
Further information regarding the implementation of phase compensation can
be found in the 'Crossover Shapes and Frequencies' section of this manual.
5. Phase Comp
