- 32 -
FDS-366T
A fully balanced system will yield the best possible results with none of the
problems often associated with interconnected audio equipment. However, if
the equipment driving the FDS-366T has only unbalanced outputs then the
input plug to the FDS-366T should be wired so that the shield connection on
pin 1 is shorted to either pin 2 or pin 3, depending on the wiring convention of
the unbalanced equipment at the sending end.
If the equipment connected to the FDS-366T Outputs only has unbalanced
inputs, it is still recommended to use balanced (i.e. 2-connector shielded)
cable. The interconnecting cable should have the shield earthed to pin 1 at
the FDS-366T output, the output ‘cold’ should be connected to the unbalanced
input (0V) ground, and the output ‘hot’ should be connected to the unbalanced
live input. There should be no connection between the cable screen and the 0
V/chassis ground connection of the unbalanced equipment. Strict adherence
to these wiring conventions will help to eliminate potential ground loop hums
by removing signal currents from the cable shield.

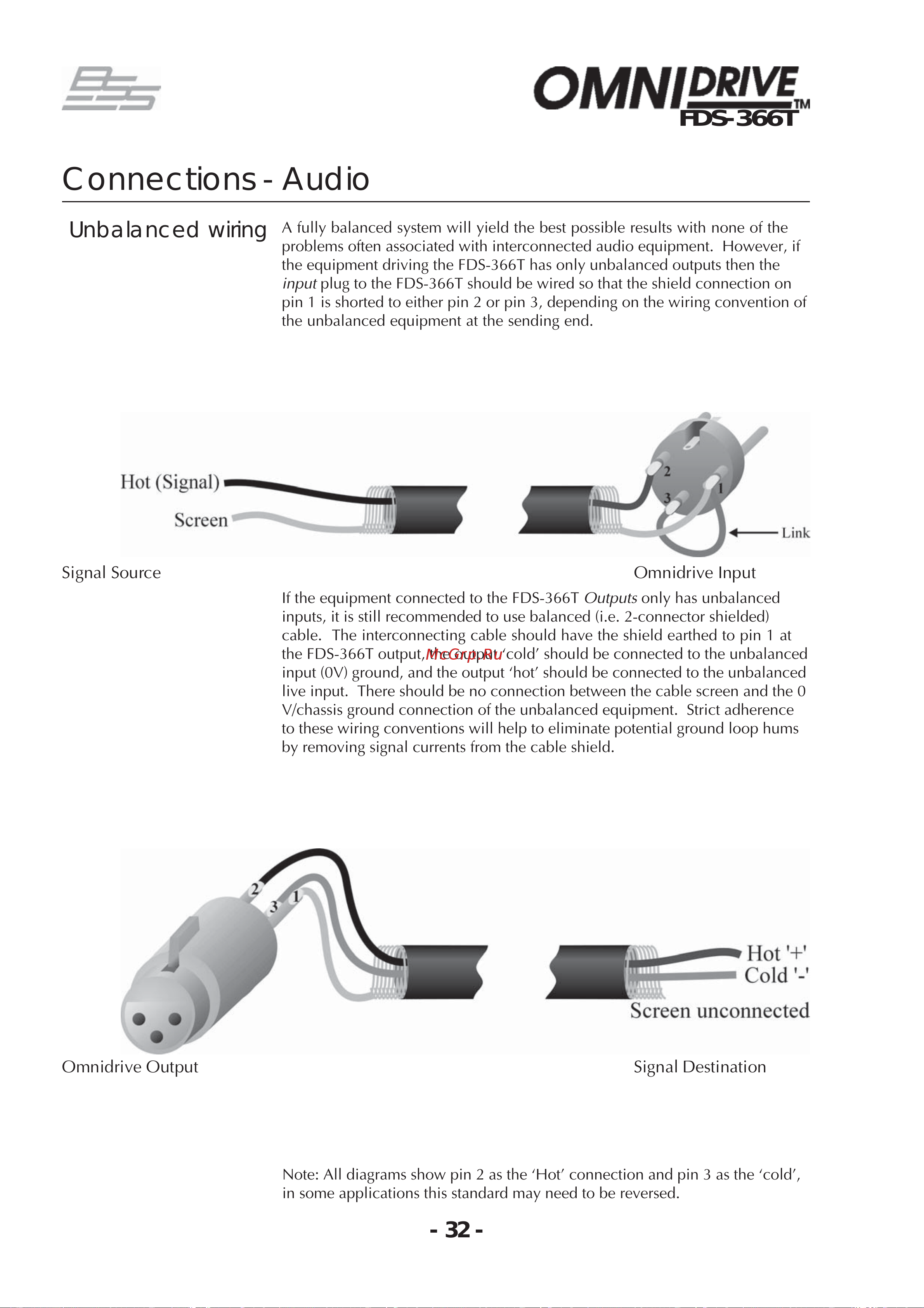

Connections - Audio
Signal Source Omnidrive Input
Omnidrive Output Signal Destination
Unbalanced wiring
Note: All diagrams show pin 2 as the ‘Hot’ connection and pin 3 as the ‘cold’,
in some applications this standard may need to be reversed.
