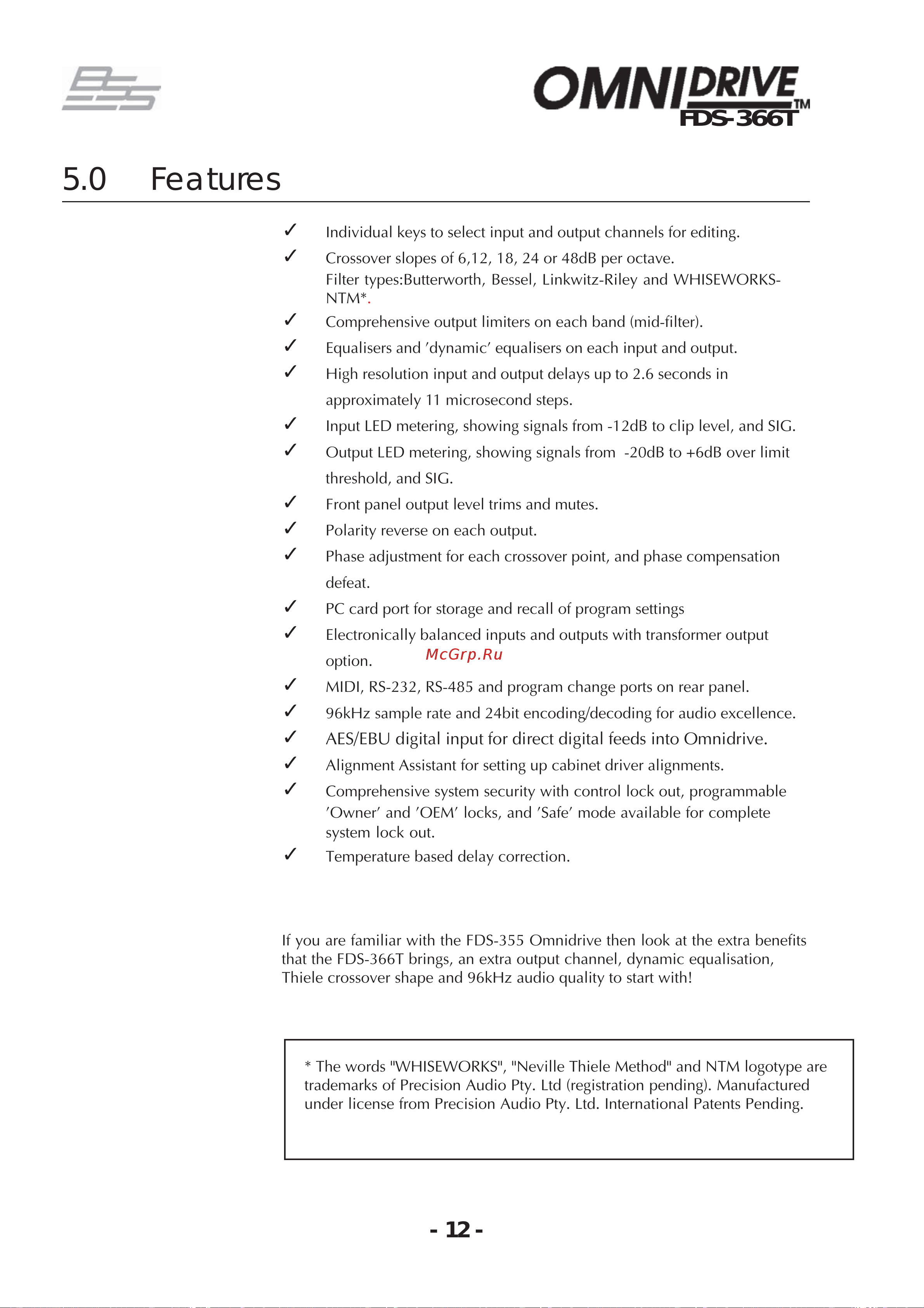

- 12 -
FDS-366T
✓ Individual keys to select input and output channels for editing.
✓ Crossover slopes of 6,12, 18, 24 or 48dB per octave.
Filter types:Butterworth, Bessel, Linkwitz-Riley and WHISEWORKS-
NTM*.
✓ Comprehensive output limiters on each band (mid-filter).
✓ Equalisers and 'dynamic' equalisers on each input and output.
✓ High resolution input and output delays up to 2.6 seconds in
approximately 11 microsecond steps.
✓ Input LED metering, showing signals from -12dB to clip level, and SIG.
✓ Output LED metering, showing signals from -20dB to +6dB over limit
threshold, and SIG.
✓ Front panel output level trims and mutes.
✓ Polarity reverse on each output.
✓ Phase adjustment for each crossover point, and phase compensation
defeat.
✓ PC card port for storage and recall of program settings
✓ Electronically balanced inputs and outputs with transformer output
option.
✓ MIDI, RS-232, RS-485 and program change ports on rear panel.
✓ 96kHz sample rate and 24bit encoding/decoding for audio excellence.
✓ AES/EBU digital input for direct digital feeds into Omnidrive.
✓ Alignment Assistant for setting up cabinet driver alignments.
✓ Comprehensive system security with control lock out, programmable
'Owner' and 'OEM' locks, and 'Safe' mode available for complete
system lock out.
✓ Temperature based delay correction.
5.0 Features
If you are familiar with the FDS-355 Omnidrive then look at the extra benefits
that the FDS-366T brings, an extra output channel, dynamic equalisation,
Thiele crossover shape and 96kHz audio quality to start with!
* The words "WHISEWORKS", "Neville Thiele Method" and NTM logotype are
trademarks of Precision Audio Pty. Ltd (registration pending). Manufactured
under license from Precision Audio Pty. Ltd. International Patents Pending.
