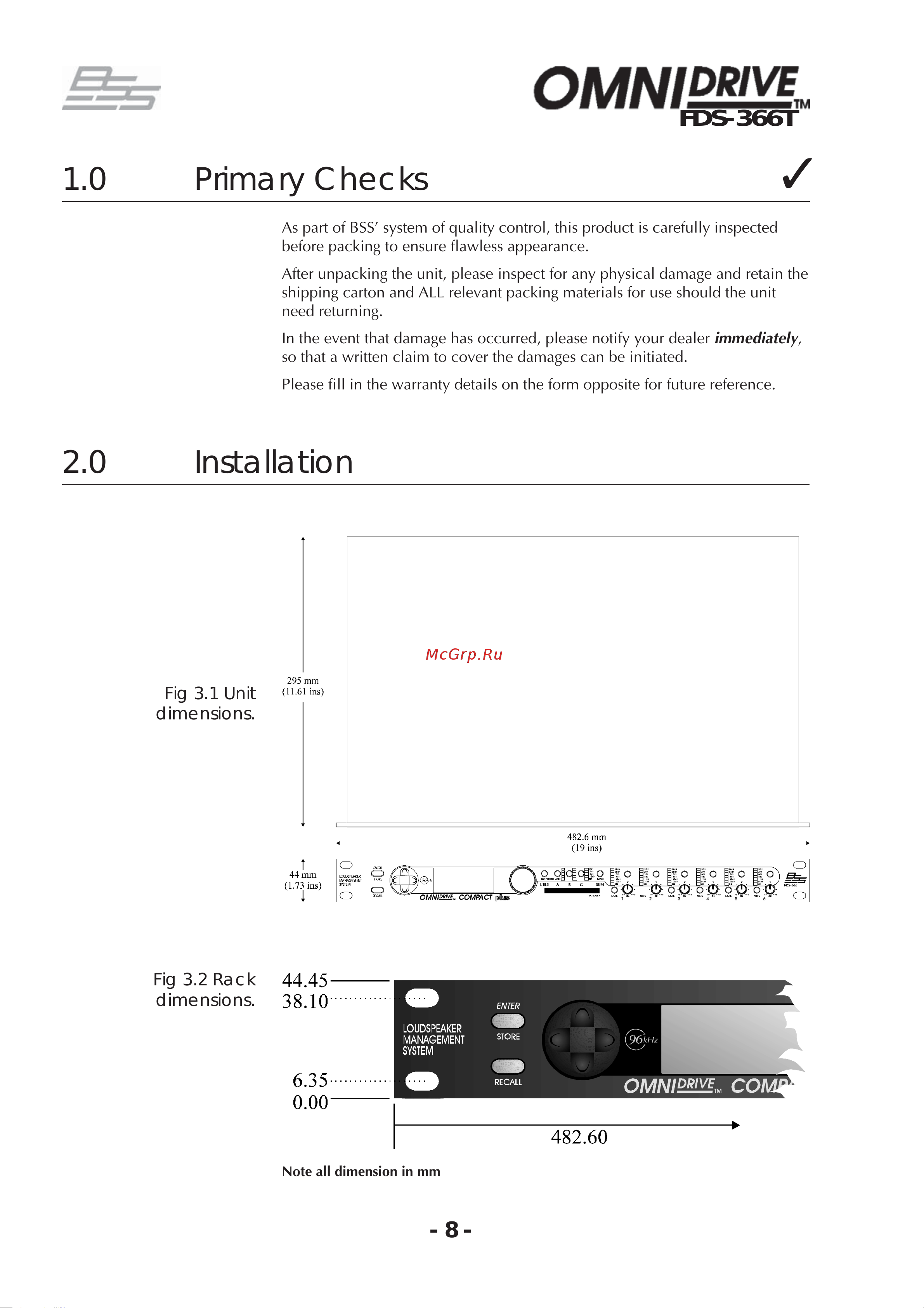

- 8 -
FDS-366T
As part of BSS' system of quality control, this product is carefully inspected
before packing to ensure flawless appearance.
After unpacking the unit, please inspect for any physical damage and retain the
shipping carton and ALL relevant packing materials for use should the unit
need returning.
In the event that damage has occurred, please notify your dealer immediately,
so that a written claim to cover the damages can be initiated.
Please fill in the warranty details on the form opposite for future reference.
1.0 Primary Checks
2.0 Installation
Fig 3.1 Unit
dimensions.
Fig 3.2 Rack
dimensions.
✓
Note all dimension in mm
