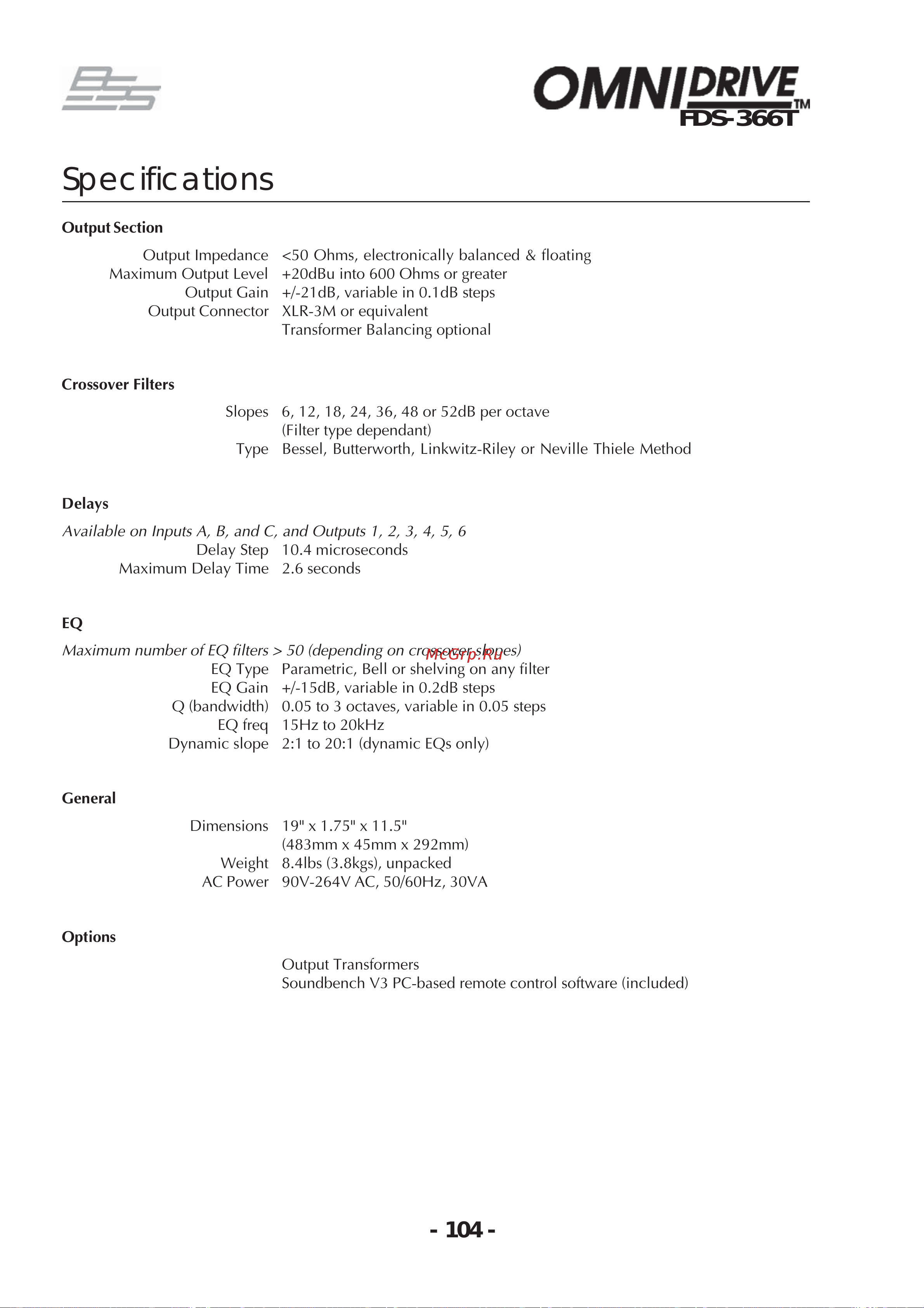

BSS 366T OmniDrive [104/112] Specifications
![BSS 366T OmniDrive [104/112] Specifications](/views2/2008120/page104/bg68.png)
- 104 -
FDS-366T
Output Section
Output Impedance <50 Ohms, electronically balanced & floating
Maximum Output Level +20dBu into 600 Ohms or greater
Output Gain +/-21dB, variable in 0.1dB steps
Output Connector XLR-3M or equivalent
Transformer Balancing optional
Crossover Filters
Slopes 6, 12, 18, 24, 36, 48 or 52dB per octave
(Filter type dependant)
Type Bessel, Butterworth, Linkwitz-Riley or Neville Thiele Method
Delays
Available on Inputs A, B, and C, and Outputs 1, 2, 3, 4, 5, 6
Delay Step 10.4 microseconds
Maximum Delay Time 2.6 seconds
EQ
Maximum number of EQ filters > 50 (depending on crossover slopes)
EQ Type Parametric, Bell or shelving on any filter
EQ Gain +/-15dB, variable in 0.2dB steps
Q (bandwidth) 0.05 to 3 octaves, variable in 0.05 steps
EQ freq 15Hz to 20kHz
Dynamic slope 2:1 to 20:1 (dynamic EQs only)
General
Dimensions 19" x 1.75" x 11.5"
(483mm x 45mm x 292mm)
Weight 8.4lbs (3.8kgs), unpacked
AC Power 90V-264V AC, 50/60Hz, 30VA
Options
Output Transformers
Soundbench V3 PC-based remote control software (included)
Specifications
