BSS 366T OmniDrive [101/112] Default configuration settings common
![BSS 366T OmniDrive [101/112] Default configuration settings common](/views2/2008120/page101/bg65.png)
- 101 -
FDS-366T
PHASE
(Degrees) 000000
POLARITY
Normal Normal Normal Normal Normal Normal
GAIN
0dB 0dB 0dB 0dB 0dB 0dB
LIMITER
ON/OFF On On On On On On
OVER 6dB 6dB 6dB 6dB 6dB 6dB
THR 4dBu 4dBu 4dBu 4dBu 4dBu 4dBu
ATK Med Med Med Med Med Med
REL Med Med Med Med Med Med
DELAY
LINK OFF OFF OFF OFF OFF OFF
LENGTH 0m 0m 0m 0m 0m 0m
EQ (Bypass)
ON/BYPASS On On On On On On
DEQ
ON/OFF Off Off Off Off Off Off
THR 0.0dBu 0.0dBu 0.0dBu 0.0dBu 0.0dBu 0.0dBu
RATIO 2:1 2:1 2:1 2:1 2:1 2:1
ATK Med Med Med Med Med Med
REL Med Med Med Med Med Med
FREQ 1.00kHz 1.00kHz 1.00kHz 1.00kHz 1.00kHz 1.00kHz
GAIN 0.0dB 0.0dB 0.0dB 0.0dB 0.0dB 0.0dB
WIDTH 0.30oct 0.30oct 0.30oct 0.30oct 0.30oct 0.30oct
SHAPE Bell Bell Bell Bell Bell Bell
EQ
FREQ 1.00kHz 1.00kHz 1.00kHz 1.00kHz 1.00kHz 1.00kHz
GAIN 0.0dB 0.0dB 0.0dB 0.0dB 0.0dB 0.0dB
WIDTH 0.30oct 0.30oct 0.30oct 0.30oct 0.30oct 0.30oct
SHAPE Bell Bell Bell Bell Bell Bell

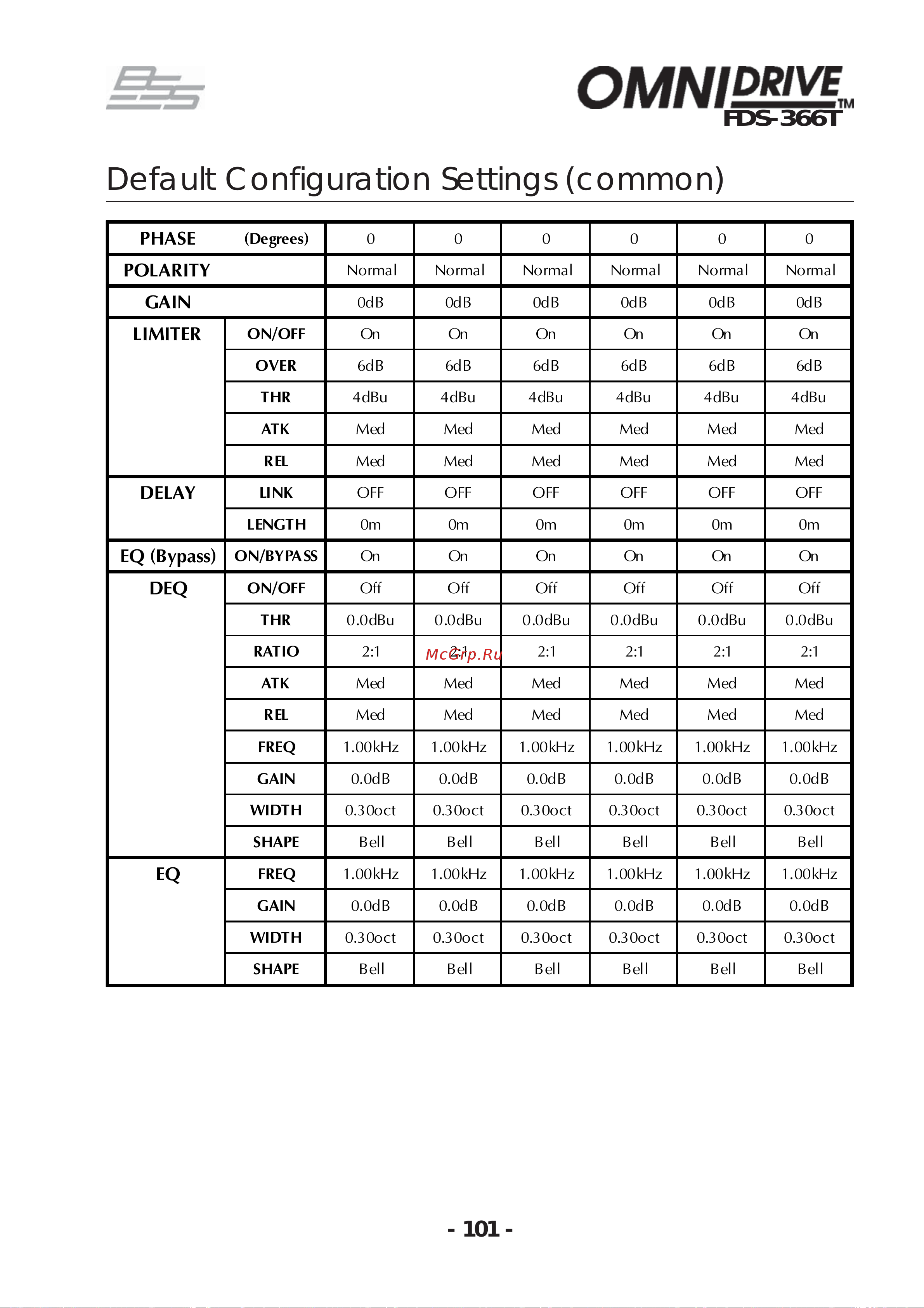

Default Configuration Settings (common)
